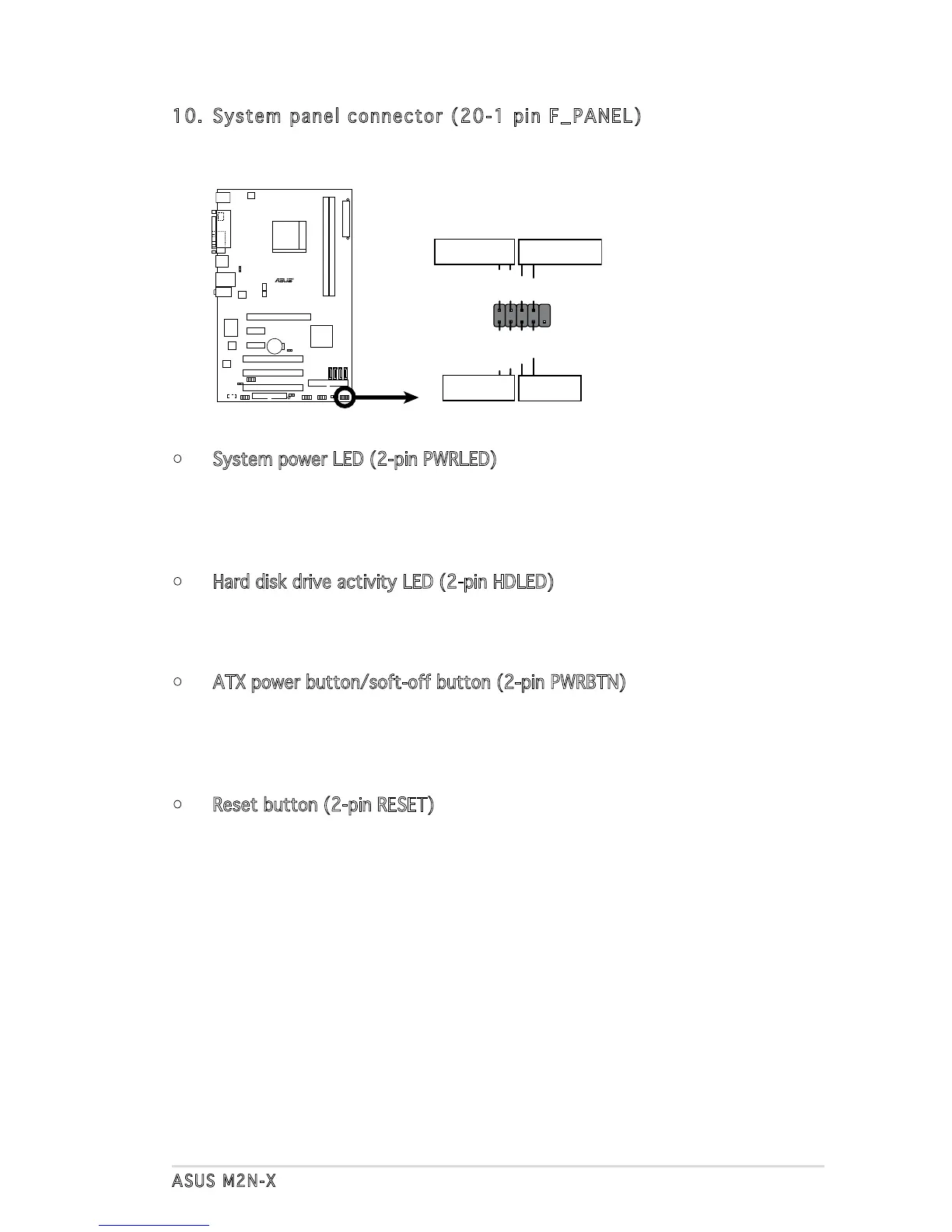

10. System panel connector (20-1 pin F_PANEL)
This connector supports several chassis-mounted functions.
• System power LED (2-pin PWRLED)
This 2-pin connector is for the system power LED. Connect the
chassis power LED cable to this connector. The system power LED
lights up when you turn on the system power, and blinks when the
system is in sleep mode.
• Hard disk drive activity LED (2-pin HDLED)
This 2-pin connector is for the HDD Activity LED. Connect the HDD
Activity LED cable to this connector. The IDE LED lights up or ashes
when data is read from or written to the HDD.
• ATX power button/soft-off button (2-pin PWRBTN)
This connector is for the system power button. Pressing the power
button turns the system on or puts the system in sleep or soft-off
mode depending on the BIOS settings. Pressing the power switch for
more than four seconds while the system is ON turns the system OFF.
• Reset button (2-pin RESET)
This 2-pin connector is for the chassis-mounted reset button for
system reboot without turning off the system power.
M2N-X
M2N-X System Panel Connector
F_PANEL
PLED- PWR PLED+
Ground
GNDReset
IDELED+
IDELED-
HD LED RESET
PWR LED PWR BTN

Asus M2N-X Specifications

General

ECC	Yes
Number of memory slots	2
Maximum internal memory	4 GB
Processor socket	Socket AM2
Processor manufacturer	AMD
CPU fan connector	No
Number of SATA connectors	4
Number of EATX power connectors	1
Manageability features	WOR (Ring), WOL/WOR (PME), PXE
Controller interface type	Serial ATA
Controller 2nd interface type	UltraDMA 100/66/33
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Motherboard form factor	ATX
Compatible operating systems	Windows Vista/XP/2000
Bundled software	Drivers ASUS PC Probe II ASUS Update NVIDIA MediaShield RAID
BIOS memory size	32 Mbit

Weight and Dimensions

Depth	193 mm
Width	305 mm
