Asus P11C-M/4L User Manual

ASUS P11C-M/4L

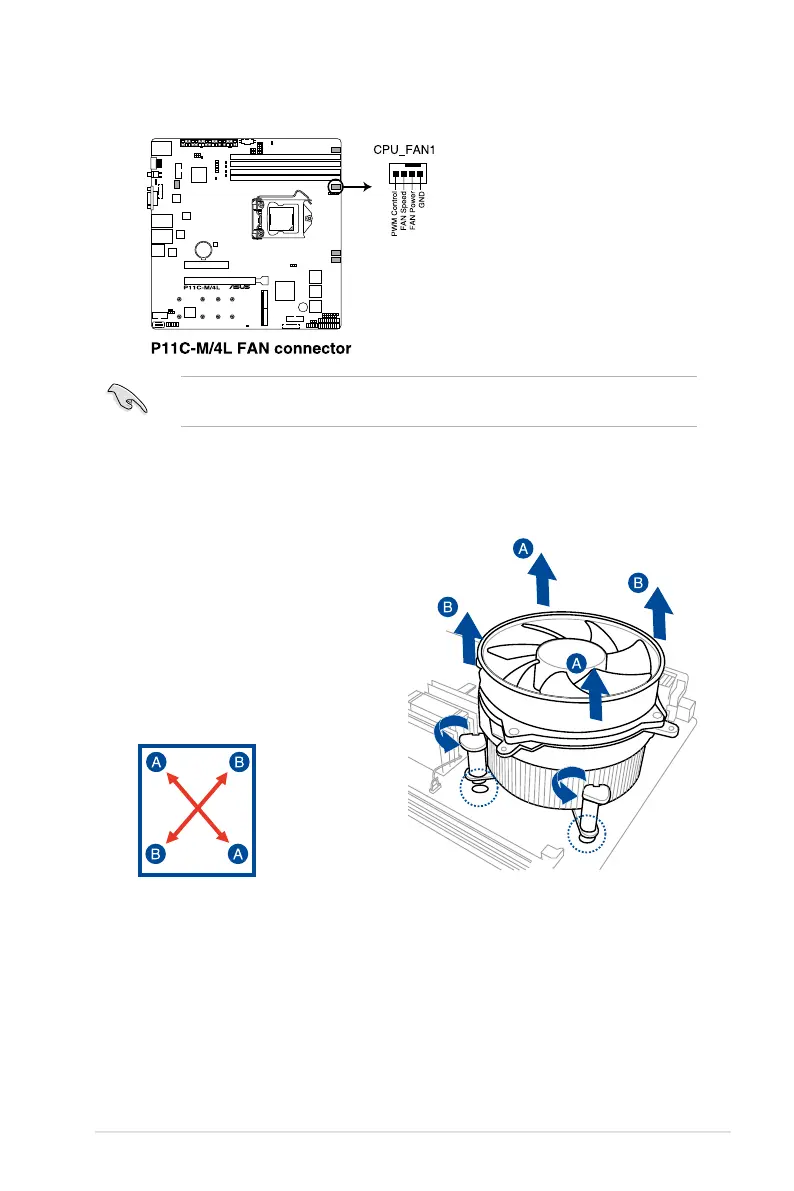

2-11
3. ConnecttheCPUfancabletotheconnectoronthemotherboardlabeledCPU_FAN1.
DONOTforgettoconnecttheCPUfanconnector!Hardwaremonitoringerrorscanoccurif
you fail to plug this connector.
2.3.3 Uninstalling the CPU heatsink and fan
4. Carefullyremovetheheatsinkandfanassemblyfromthemotherboard.
TouninstalltheCPUheatsinkandfan:
1. DisconnecttheCPUfancablefromthe
connector on the motherboard.
2. Rotate each fastener counterclockwise.
3. Pull up two fasteners at a time in a
diagonalsequencetodisengagethe
heatsink and fan assembly from the
motherboard.

Asus P11C-M/4L Specifications

General

ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR4-SDRAM
Maximum internal memory	64 GB
Supported memory clock speeds	2400, 2666 MHz
Processor socket	LGA 1151 (Socket H4)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Core i3, Intel Pentium, Intel Xeon
USB 2.0 connectors	1
Number of SATA III connectors	6
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Component for	PC
Motherboard chipset	Intel C242
Audio output channels	- channels
Motherboard form factor	micro ATX
BIOS type	-
Graphics card	AST2500
Storage temperature (T-T)	10 - 35 °C
Operating temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	20 - 90 %
LAN controller	Intel® I210-AT
Harmonized System (HS) code	84733020

Weight and Dimensions

Width	244 mm
