Chapter 2: Hardware Information

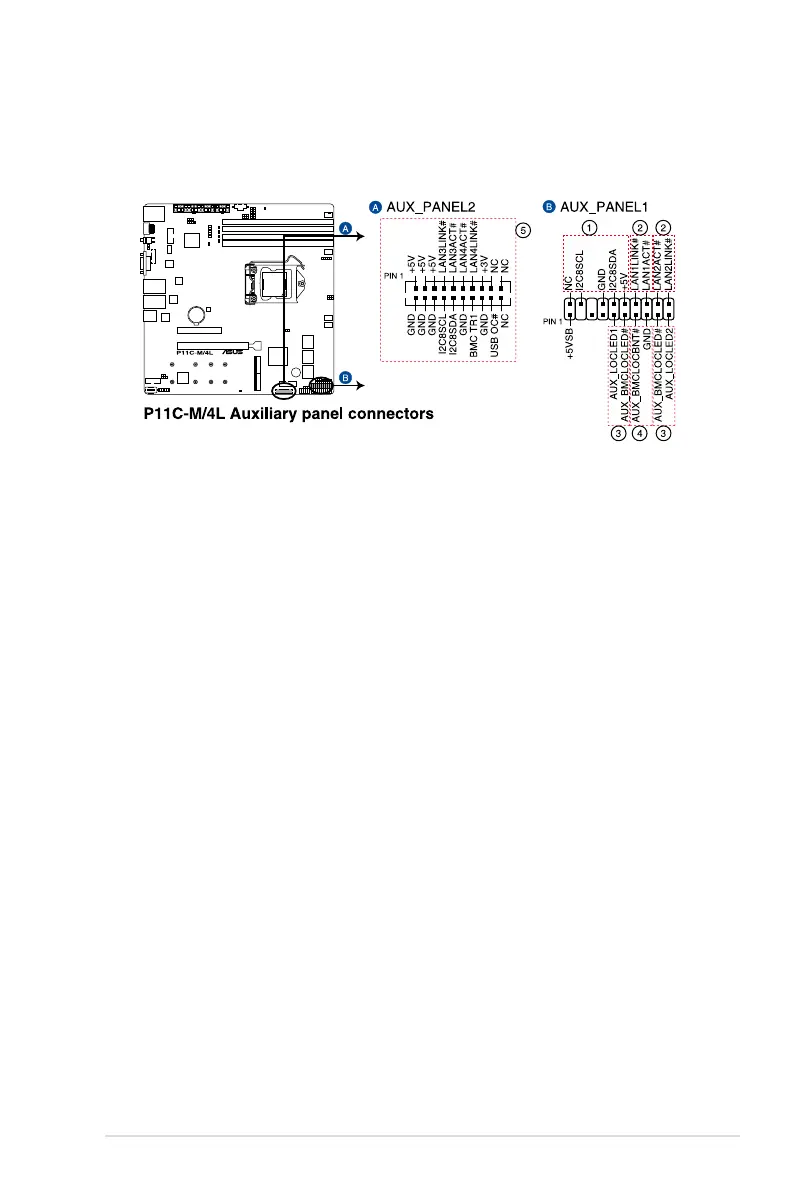

13. Auxiliary panel connectors (20-2 pin AUX_PANEL1; 20-pin AUX_PANEL2)
TheseconnectorsareforadditionalfrontpanelfeaturesincludingfrontpanelSMB,
locatorLEDandswitch,chassisintrusion,andLANLEDs.
1. Front panel SMB (6-1 pin FPSMB)
 This6-1pinconnectorisforthefrontpanelSMBuscable.
2. LAN activity LED (2-pin LAN1_LED, LAN2_LED)
 This2-pinconnectorisfortheGigabitLANactivityLEDsonthefrontpanel.
3. Locator LED (2-pin LOCATORLED1, 2-pin LOCATORLED2)
 This2-pinconnectorisforthelocatorLED1andLED2onthefrontpanel.Connect
the Locator LED cables to these 2-pin connector. The LEDs will light up when the
Locator button is pressed.
4. Locator Button/Switch (2-pin LOCATORBTN)
This 2-pin connector is for the locator button on the front panel. This button
queriesthestateofthesystemlocator.
5. LAN activity LED and USB port (2-pin LAN3_LED, LAN4_LED, USB ports)
 TheseleadsarefortheGigabitLANactivityLEDsandUSBportsonthefront
panel.

Asus P11C-M/4L Specifications

General

ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR4-SDRAM
Maximum internal memory	64 GB
Supported memory clock speeds	2400, 2666 MHz
Processor socket	LGA 1151 (Socket H4)
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Core i3, Intel Pentium, Intel Xeon
USB 2.0 connectors	1
Number of SATA III connectors	6
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Component for	PC
Motherboard chipset	Intel C242
Audio output channels	- channels
Motherboard form factor	micro ATX
BIOS type	-
Graphics card	AST2500
Storage temperature (T-T)	10 - 35 °C
Operating temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	20 - 90 %
LAN controller	Intel® I210-AT
Harmonized System (HS) code	84733020

Weight and Dimensions

Width	244 mm
