5-22 Chapter 5: RAID conguration
 
To delete a RAID conguration
1. From the
Management Menu
, select

>

, and
then press <Enter>.
2. When prompted, use the arrow keys to select
Yes
from the
Clear

dialog box, and then press <Enter>.
The utility clears all the current array(s).
3. Press any key to continue.

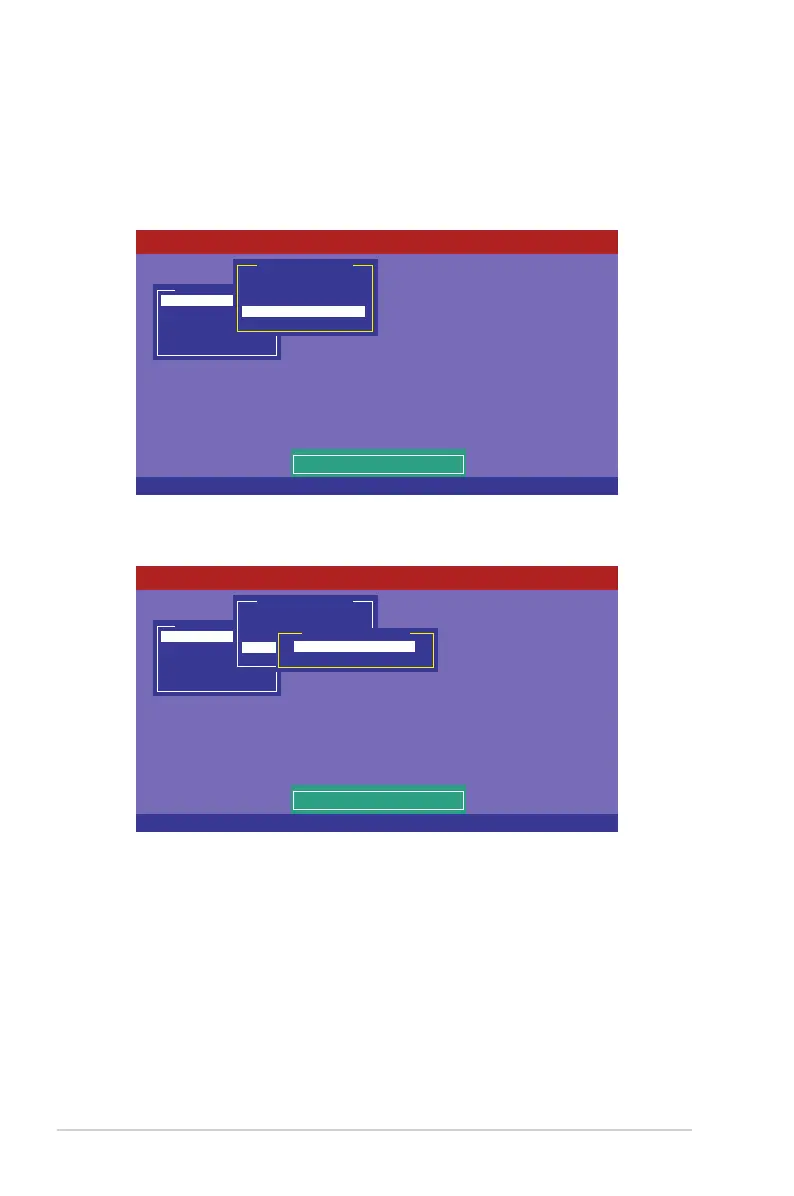

Management Menu
Congure
Initialize
Objects
Rebuild
Check Consistency
Clear Existing Conguration
Conguration Menu
Easy Conguration
New Conguration
View/Add Conguration
Clear Conguration
Select Boot Drive
LSI Software RAID Conguration Utility Ver C.05 Sep 17, 2010
BIOS Version A.10.09231523R
Use Cursor Keys To Navigate Between Items And Press Enter To Select An Option
Management Menu
Congure
Initialize
Objects
Rebuild
Check Consistency
Clear Existing Conguration
Conguration Menu
Easy Conguration
New Conguration
View/Add Conguration
Clear Conguration
Select Boot Drive
Clear Conguration?
Yes
No
LSI Software RAID Conguration Utility Ver C.05 Sep 17, 2010
BIOS Version A.10.09231523R
Use Cursor Keys To Navigate Between Items And Press Enter To Select An Option
