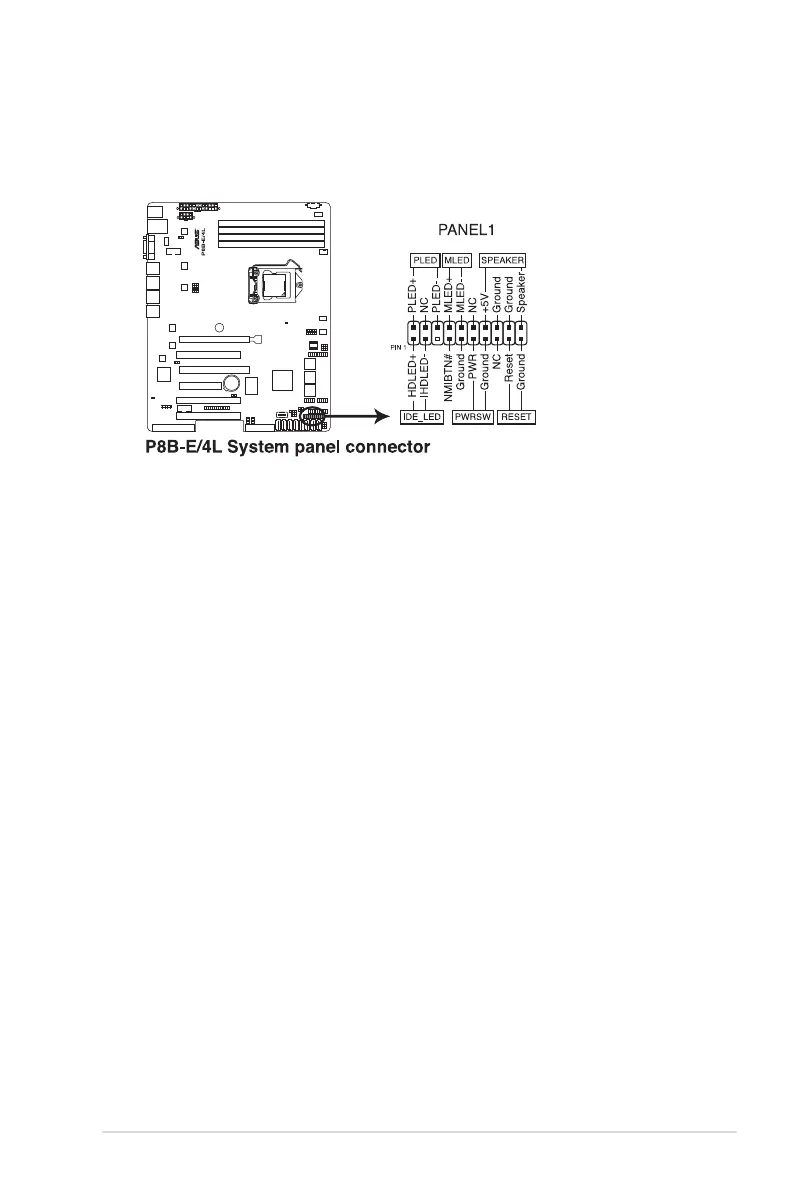

15. System panel connector (20-1 pin PANEL1)
This connector supports several chassis-mounted functions.
1. System power LED (3-pin PLED)
This 3-pin connector is for the system power LED. Connect the chassis
power LED cable to this connector. The system power LED lights up
when you turn on the system power, and blinks when the system is in
sleep mode.
2. Message LED (2-pin MLED)
This 2-pin connector is for the message LED cable that connects to
the front message LED. The message LED is controlled by Hardware
monitor to indicate an abnormal event occurance.
3. System warning speaker (4-pin SPEAKER)
This 4-pin connector is for the chassis-mounted system warning
speaker. The speaker allows you to hear system beeps and warnings.
4. Hard disk drive activity LED (2-pin HDDLED)
This 2-pin connector is for the HDD Activity LED. Connect the HDD
Activity LED cable to this connector. The IDE LED lights up or ashes
when data is read from or written to the HDD.
5. Power button/soft-off button (2-pin PWRSW)
This connector is for the system power button. Pressing the power
button turns the system on or puts the system in sleep or soft-off mode
depending on the BIOS settings. Pressing the power switch for more
than four seconds while the system is ON turns the system OFF.
6. Reset button (2-pin RESET)
This 2-pin connector is for the chassis-mounted reset button for system
reboot without turning off the system power.

Asus P8B-E/4L Specifications

General

Microphone in	No
Serial ports quantity	0
USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	4
USB 2.0 connectors	3
Chassis intrusion connector	Yes
PCI Express slots version	2.0
Memory channels	Dual-channel
Supported memory types	DDR3-SDRAM
Maximum internal memory	32 GB
Supported memory clock speeds	1066, 1333, 1600 MHz
PCI Express slots quantity	6
Supported UDIMM module capacity	1GB, 2GB, 4GB, 8GB
RAID levels	0, 1, 5, 10
Supported storage drive interfaces	SATA II, SATA III
LAN controller	Intel® 82574L
Ethernet interface type	Gigabit Ethernet
On-board graphics card model	Aspeed AST2050
On-board graphics card memory	16 MB
Parallel processing technology support	Not supported
Certification	FCC, CFR47 15, B, CE, EN55022, EN55024, C
Component for	Server
Motherboard chipset	Intel® C204
Motherboard form factor	ATX
Cables included	SATA
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	10 - 35 °C
Storage relative humidity (H-H)	20 - 90 %
Processor socket	LGA 1155 (Socket H2)
Intel Xeon series	E3-1200
Processor manufacturer	Intel
Processor number of cores supported	2, 4

Weight and Dimensions

Depth	304.8 mm
Width	243.8 mm
