ASUS P8H61 EVO 1-7

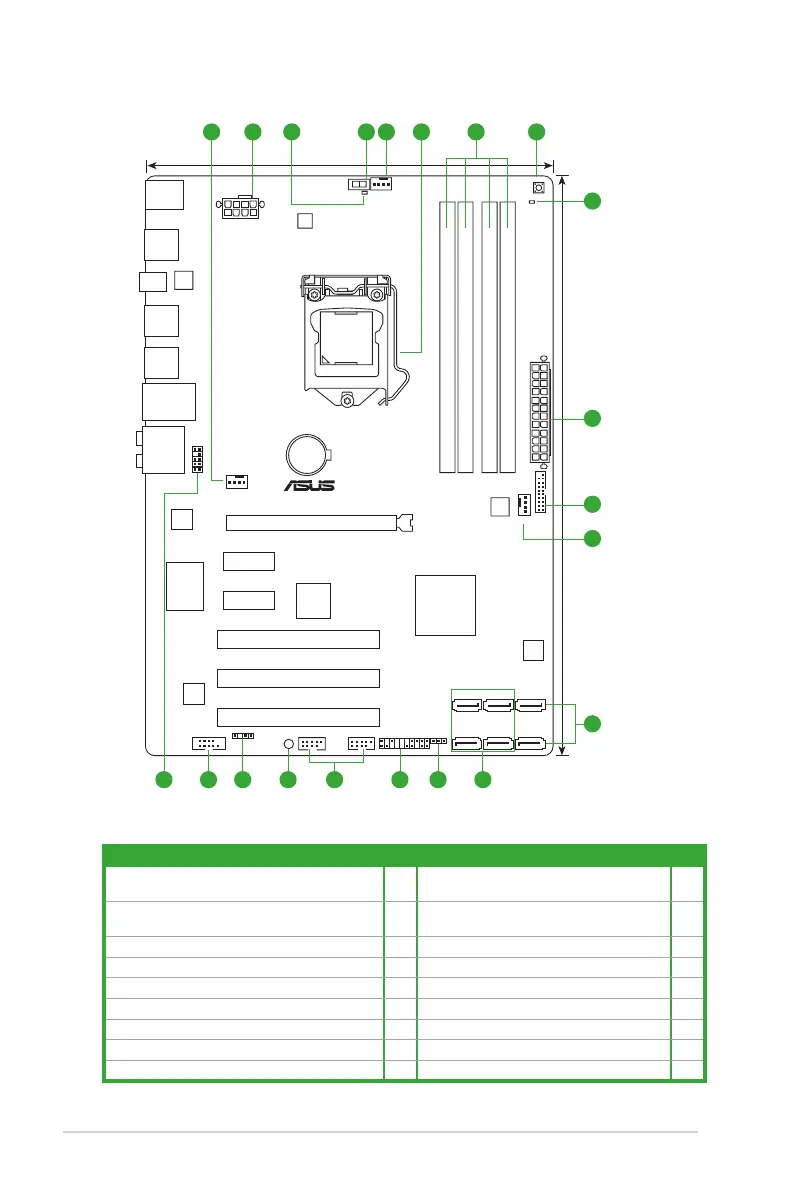

1.5.3 Motherboard layout
1.5.4 Layout contents
Connectors/Jumpers/Slots/LED Page Connectors/Jumpers/Slots/LED Page
1.
CPU and chassis fan connectors (4-pin CPU_FAN,
4-pin CHA_FAN1, 4-pin CHA_FAN2)
1-27 10.
ASMedia Serial ATA 6.0Gb/s connectors (7-pin
SATA6G_E1/E2 [navy blue])
1-24
2.
ATX power connectors (24-pin EATXPWR, 8-pin
EATX12V)
1-25 11.
Intel
®
H61 Serial ATA 3.0Gb/s connectors
(7-pin SATA3G_1~4 [blue])
1-24
3. Turbo Key II LED (O2LED2) 1-31 12. Clear RTC RAM (3-pin CLRTC) 1-20
4. Turbo Key II switch 1-30 13. System panel connector (20-8 pin PANEL) 1-28
5. Intel
®
LGA1155 CPU socket 1-8 14. USB connectors (10-1 pin USB78, USB910) 1-26
6. DDR3 DIMM sockets 1-13 15. Standy Power LED (SB_PWR) 1-30
7. MemOK! switch 1-29 16. Digital audio connector (4-1 pin SPDIF_OUT) 1-27
8. DRAM LED 1-31 17. Serial port connectors (10-1 pin COM1) 1-23
9. ASMedia USB 3.0 connector (20-1 pin USB3_34) 1-26 18. Front panel audio connector (10-1 pin AAFP) 1-23
P8H61 EVO
PCIEX16_1
PCIEX1_2
PCIEX1_1
PCI1
PCI2
PCI3
MemOK!
DRAM_LED
PANEL
SPDIF_OUT
AAFP
EATX12V
EPU
ASM
1042
ASM
1042
EATXPWR
CPU_FAN
CHA_FAN2
CHA_FAN1
Lithium Cell
CMOS Power
Super
I/O
ASM
1083
AUDIO
ALC
887
RTL
8111E
COM1
KBMS
4Mb
BIOS
SB_PWR
02LED2
TURBO_KEY_II
CLRTC
21.3cm(8.4in)
30.5cm(12.0in)
USB3_34
Intel
®
H61
DDR3 DIMM_A1 (64bit, 240-pin module) DDR3 DIMM_A2 (64bit, 240-pin module) DDR3 DIMM_B1 (64bit, 240-pin module) DDR3 DIMM_B2 (64bit, 240-pin module)
LAN1_USB12
USB34
USB56
USB3_12
SPDIF_O2
SATA3G_2 SATA3G_1 SATA6G_E1
SATA3G_4 SATA3G_3 SATA6G_E2
LGA1155
USB78 USB910
4
8
21 3 6 71 5
9
1
2
10
12 11161718 14 1315
