10. System panel connector (20-8 pin PANEL)
This connector supports several chassis-mounted functions.
• System power LED (2-pin PLED)
This 2-pin connector is for the system power LED. Connect the chassis power LED
cable to this connector. The system power LED lights up when you turn on the system
power, and blinks when the system is in sleep mode.
• Hard disk drive activity LED (2-pin IDE_LED)
This 2-pin connector is for the HDD Activity LED. Connect the HDD Activity LED cable
to this connector. The IDE LED lights up or ashes when data is read from or written to
the HDD.
• System warning speaker (4-pin SPEAKER)
This 4-pin connector is for the chassis-mounted system warning speaker. The speaker
allows you to hear system beeps and warnings.
• ATX power button/soft-off button (2-pin PWRSW)
This 2-pin connector is for the system power button.
• Reset button (2-pin RESET)
This 2-pin connector is for the chassis-mounted reset button for system reboot without
turning off the system power.

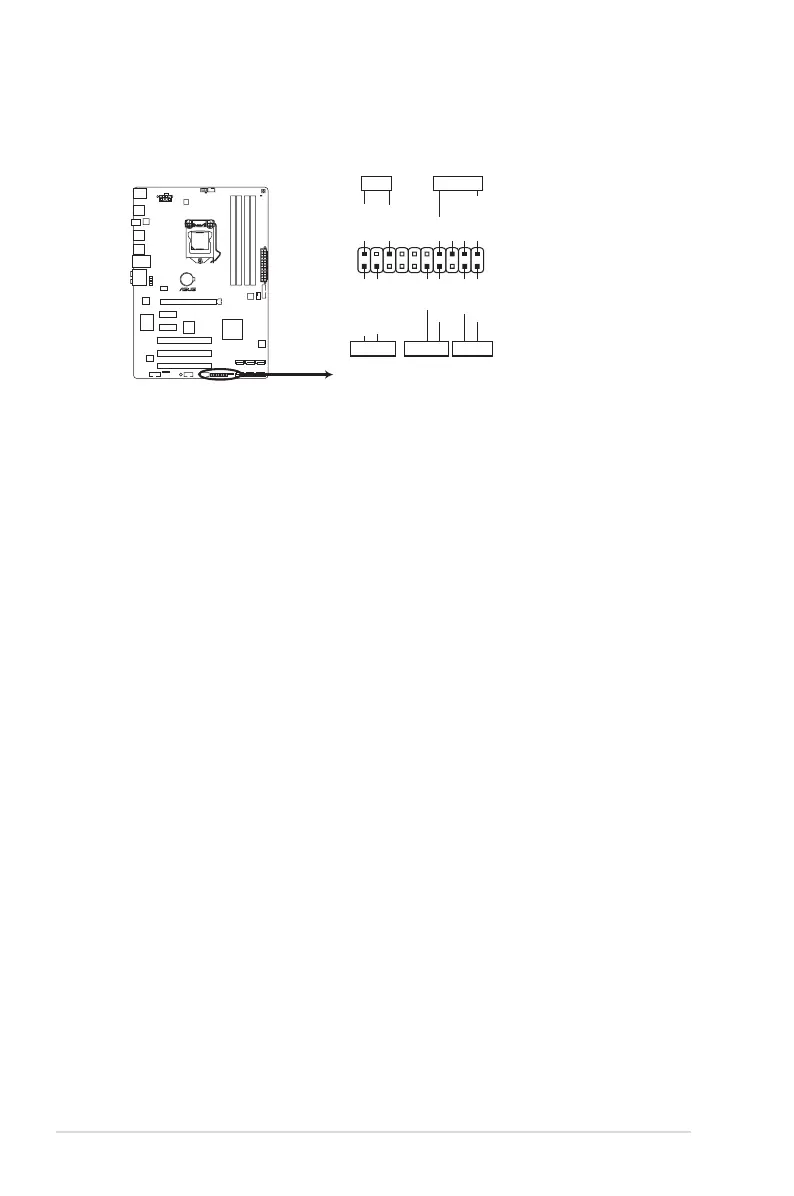

P8H61 EVO
P8H61 EVO System panel connector
PIN 1
* Requires an ATX power supply
PLED SPEAKER
PLED+ PLED- +5V Ground Ground Speaker
IDE_LED+
IDE_LED-
PWR
Ground
Reset
Ground
PANEL
IDE_LED PWRSW RESET

Asus P8H61 EVO Specifications

General

Chipset	Intel H61
CPU Socket	LGA 1155
Memory Slots	4 x DIMM
Memory Type	DDR3
Maximum Memory	32GB
Memory Standard	DDR3 2200(O.C.)/2133(O.C.)/2000(O.C.)/1866(O.C.)/1600/1333/1066
Storage Interface	4 x SATA 3Gb/s
Form Factor	ATX
Audio Chipset	Realtek ALC887
Audio Channels	8 Channels
RAID Support	No
Multi-GPU Support	No
Expansion Slots	2 x PCIe 2.0 x1, 3 x PCI
LAN	Realtek 8111E
USB Ports	12 x USB 2.0
