ASUS Q87T
1-3

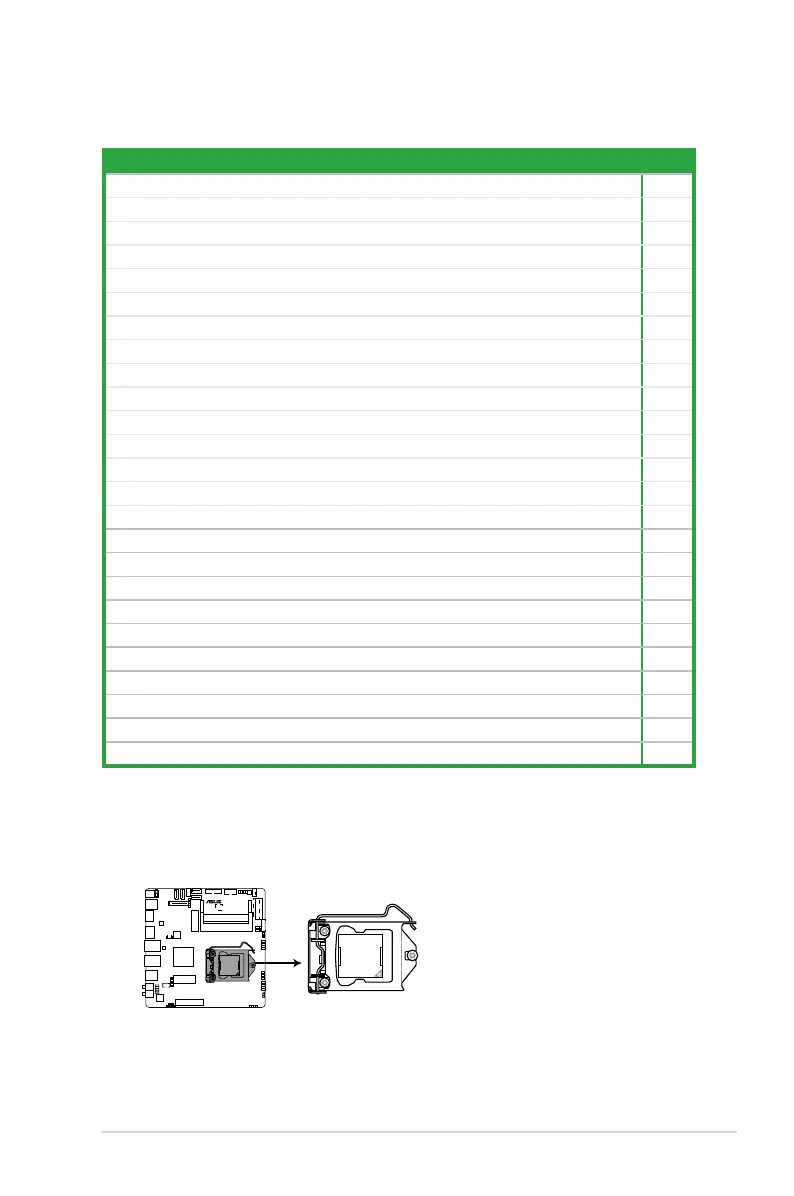

1.2.4 Layout contents
Connectors/Jumpers/Slots/LED Page
1. ATX power connector (2-pin ATX19V) 1-15
2. SATA power connector (15-pin SATA_PWRCON) 1-16
3. Intel
®
Q87 Serial ATA 6.0Gb/s connector (7-pin SATA6G_1~4 [yellow]) 1-15
4. CPU and chassis fan connectors (4-pin CPU_FAN, 4-pin CHA_FAN) 1-14
5. USB 3.0 connector (20-1 pin USB3_12) 1-17
6. DDR3 SO-DIMM slots 1-7
7. Serial port connector (10-1 pin COM) 1-14
8. System panel connector (10-1 pin F_PANEL) 1-18
9. Display panel power button (2-1 pin MON_SW_PANEL) 1-18
10. Embedded DisplayPort (30-pin eDP) 1-19
11. LVDS connector (30-pin LVDS) 1-19
12. Flat panel display brightness (8-pin LCD_BLKT_PANEL) 1-20
13. Display panel backlight power selector (BLKT_PWR-SEL) 1-12
14. USB 2.0 connectors (5-1 pin USB14, 10-1 pin USB78, 10-2 pin USB910) 1-17
15. LVDS panel or eDP selector (3-pin FPD_SEL) 1-12
16. Display panel VCC power selector (6-pin VCC_PWR_SEL) 1-12
17. Clear RTC RAM (3-pin CLRTC) 1-10
18. Chassis intrusion connector (4-1 pin CHASSIS) 1-11
19. Intel
®
LGA1150 CPU socket 1-3
20. DMIC connectors (5-1 pin DMIC) 1-20
21. Intel
®
ME jumper (3-pin DIS_ME) 1-11
22. Front panel audio connector (10-1 pin AAFP) 1-16
23. Internal stereo speaker header (4-pin INT_SPK) 1-20
24. Custom header (14-1 pin CUSTOM) 1-20
25. RTC battery header (2-pin BATT_CON) 1-19
1.3 Central Processing Unit (CPU)
This motherboard comes with a surface mount LGA1150 socket designed for the Intel 4th
generation Core™ i7 / Core™ i5 / Core™ i3, Pentium
®
, Celeron
®
processors.
Q87T
Q87T CPU socket LGA1150
