ASUS Q87T
1-17

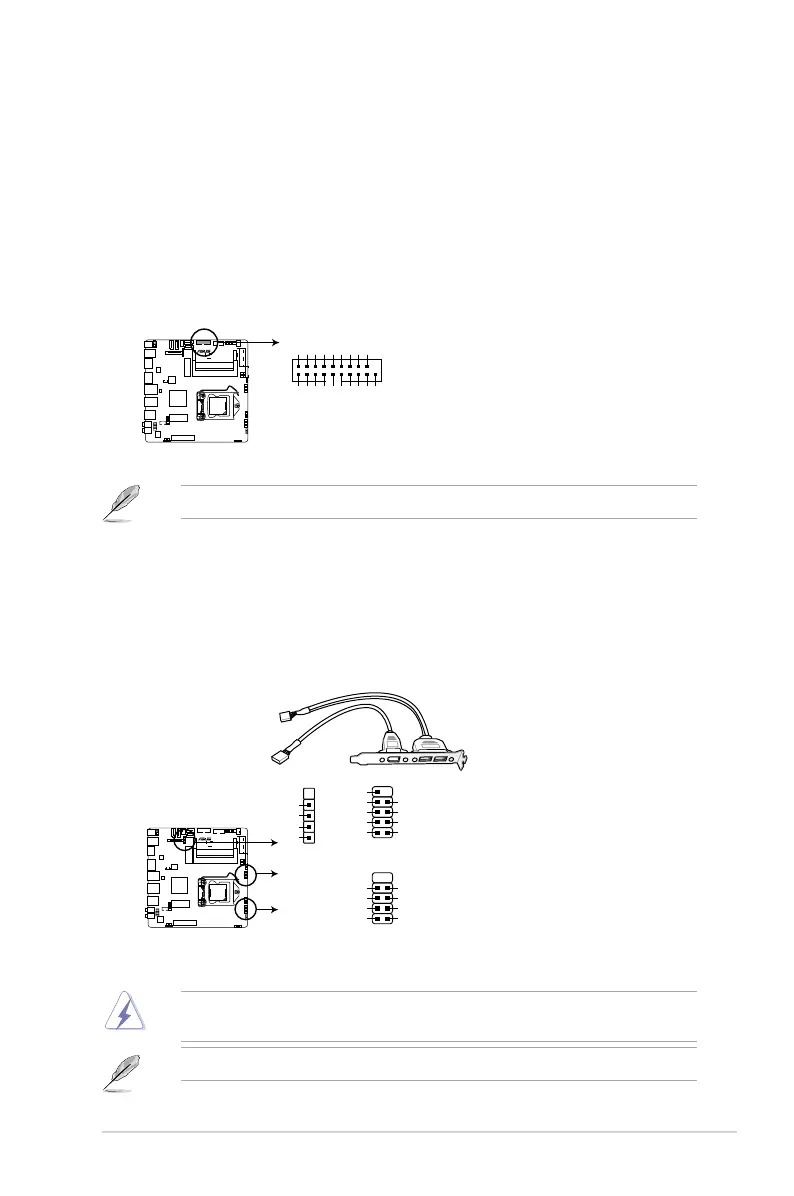

7. USB 3.0 connector (20-1 pin USB3_12)
This connector allows you to connect a USB 3.0 module for additional USB 3.0 front
or rear panel ports. With an installed USB 3.0 module, you can enjoy all the benets of
USB 3.0 including faster data transfer speeds of up to 4.8Gbps, faster charging time for
USB-chargeable devices, optimized power efciency, and backward compatibility with
USB 2.0.
The USB 3.0 module is purchased separately.
Q87T
Q87T USB3.0 Front panel connector
USB3_12
GND
IntA_P1_D+
IntA_P1_D-
GND
IntA_P1_SSTX+
GND
IntA_P1_SSTX-
IntA_P1_SSRX+
IntA_P1_SSRX-
USB3+5V
PIN 1
IntA_P2_D+ IntA_P2_D- GND IntA_P2_SSTX+ IntA_P2_SSTX- GND IntA_P2_SSRX+ IntA_P2_SSRX- USB3+5V
8. USB 2.0 connectors (10-1 pin USB14, USB78, USB910)
These connectors are for USB 2.0 ports. Connect the USB module cable to any of
these connectors, then install the module to a slot opening at the back of the system
chassis. These USB connectors comply with USB 2.0 specications and supports up to
480Mbps connection speed.
Never connect a 1394 cable to the USB connectors. Doing so will damage the
motherboard!
The USB 2.0 module is purchased separately.
Q87T
Q87T USB2.0 connectors
PIN 1
GND
USB_P9+
USB_P9-
USB+5V
GND
USB_P10+
USB_P10-
USB+5V
USB910
PIN 1
NC
GND
USB_P7+
USB_P7-
USB+5V
GND
USB_P8+
USB_P8-
USB+5V
USB78
USB14
PIN 1
GND
GND
USBD+
USBD-
+5V
