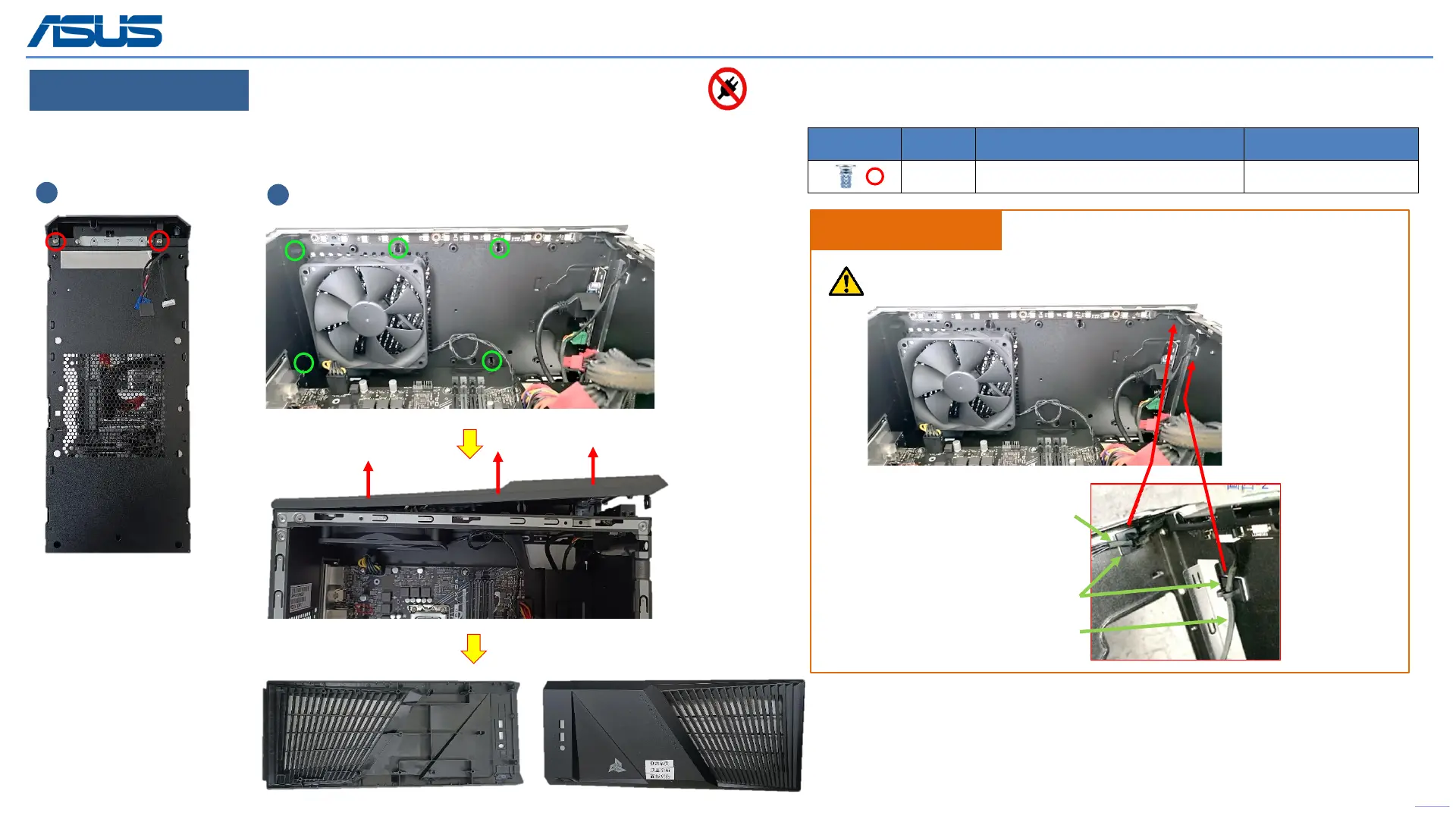

TOP COVER
Step 1 : Remove screws *2pcs.
Step 2 : Pull the latch to release and remove TOP COVER.
Back
19
Disassembly Notice
Please be sure to pull out AC POWER CORD.
2
Pull the Latch (green mark)
1
Remove
Screws QTY Spec Torque (kgf-cm)
2 SCREW #6-32*6L(7.1,2.3) (B) #2
8.0±0.5
Please according to below image to Tidy up the cables.
Assembly Notice
WIRE SADDLE*2pcs
SIDE BD CABLE
SIDE LED CABLE
To Next Page
