FRONT IO BOARD
Screws QTY Spec Torque (kgf-cm)
2 #6-32*6L(7.1,2.3) (B) #2
8.0±0.5
3 M3*4L (6.3,2.05) (B) #2
6.0±0.5

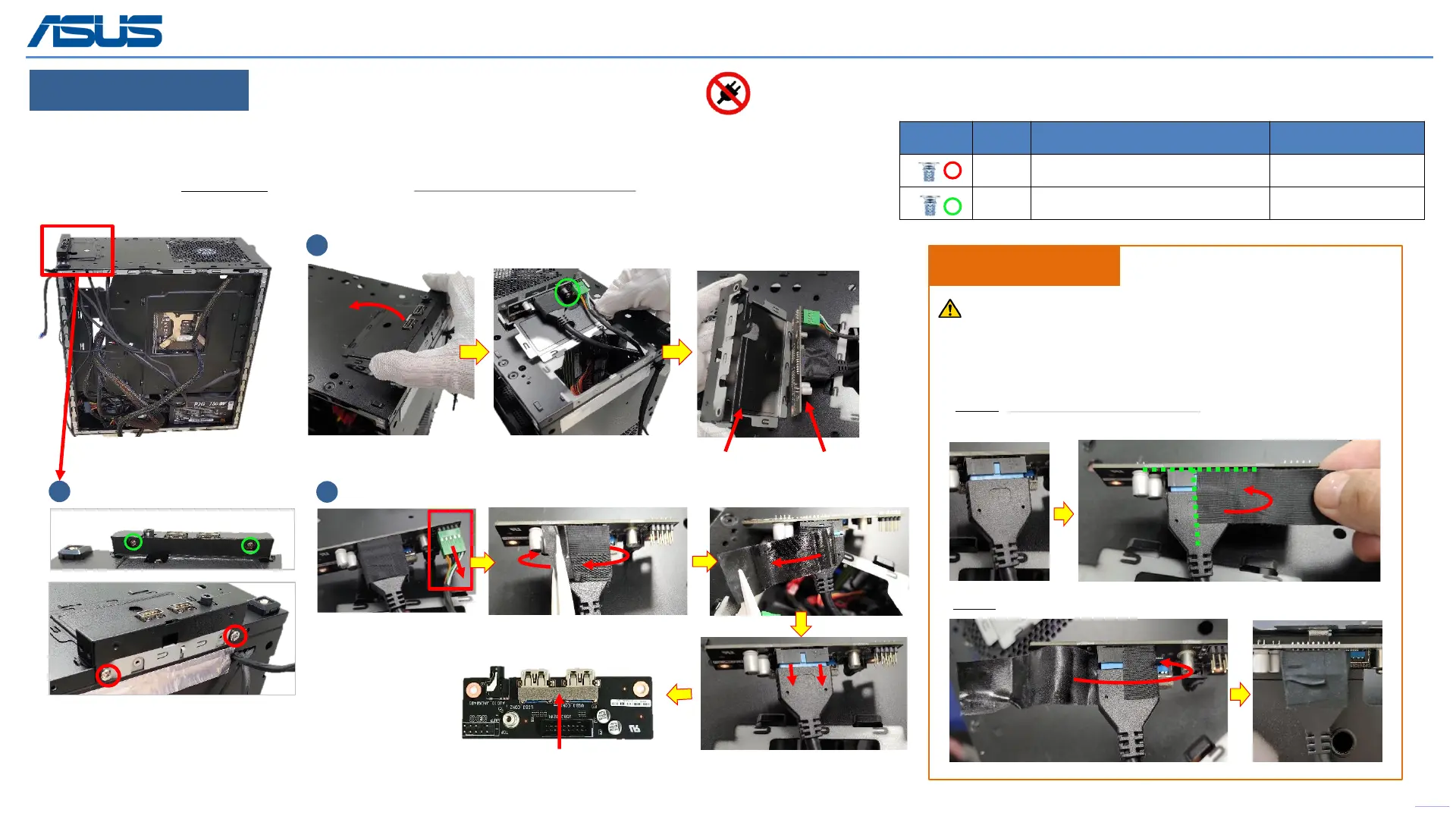

Step 1 : Remove screws *4pcs.(Red and green mark)
Step 2 : Flip up the bracket and remove screw *1pc, then separate the FRONT IO BOARD and bracket.
Step 3 : Disconnect Audio cable, remove tape from FIO USB CABLE(USB3.0) cable connector, then disconnect it.
Back
21
Disassembly Notice
Please be sure to pull out AC POWER CORD.
Assembly Notice
When assemble FIO USB cable on FRONT IO BOARD,
please follow below steps to paste USB CABLE ACETATE
TAPE.
Step1, USB CABLE ACETATE TAPE align the centerline
and parallel to the IO BOARD.
Step2, Winding it parallel the connector.
1
Unscrew
Remove ACETATE TAPE
2
Flip up the bracket and remove screw*1pc
Bracket
FRONT IO BOARD
Disconnect
3
FRONT IO BOARD
3
Unscre
w
USB CONN GASKET
Separate the IO
BOARD and bracket
To Next Page
