ROG STRIX Z590-E GAMING Series
2-15
Chapter 2

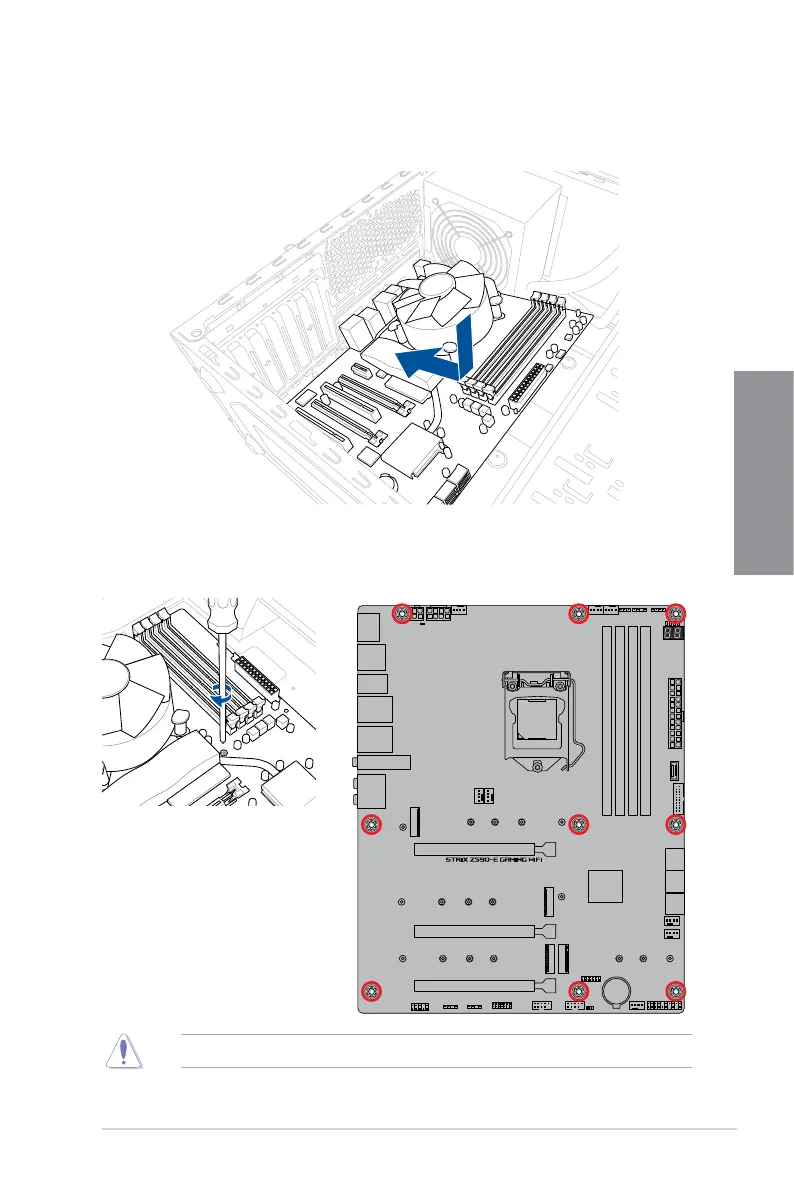

2. Place nine (9) screws into the holes indicated by circles to secure the motherboard to
the chassis.
DO NOT over tighten the screws! Doing so can damage the motherboard.
1. Place the motherboard into the chassis, ensuring that its rear I/O ports are aligned to
the chassis’ rear I/O panel.
2.1.6 Motherboard installation

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Asus ROG STRIX Z590-E GAMING Series and is the answer not in the manual?

Asus ROG STRIX Z590-E GAMING Series Specifications

General IconGeneral
ChipsetIntel Z590
CPU SocketLGA 1200
Memory Slots4 x DIMM
Maximum Memory128GB
Memory TypeDDR4
AudioROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
Form FactorATX
BluetoothBluetooth 5.2
RGB LightingAura Sync RGB
Memory Speed5333MHz (OC)
PCIe Slots1 x PCIe 3.0 x16
Storage3 x M.2, 6 x SATA 6Gb/s
USB Ports4 x USB 2.0
NetworkingIntel 2.5Gb Ethernet
