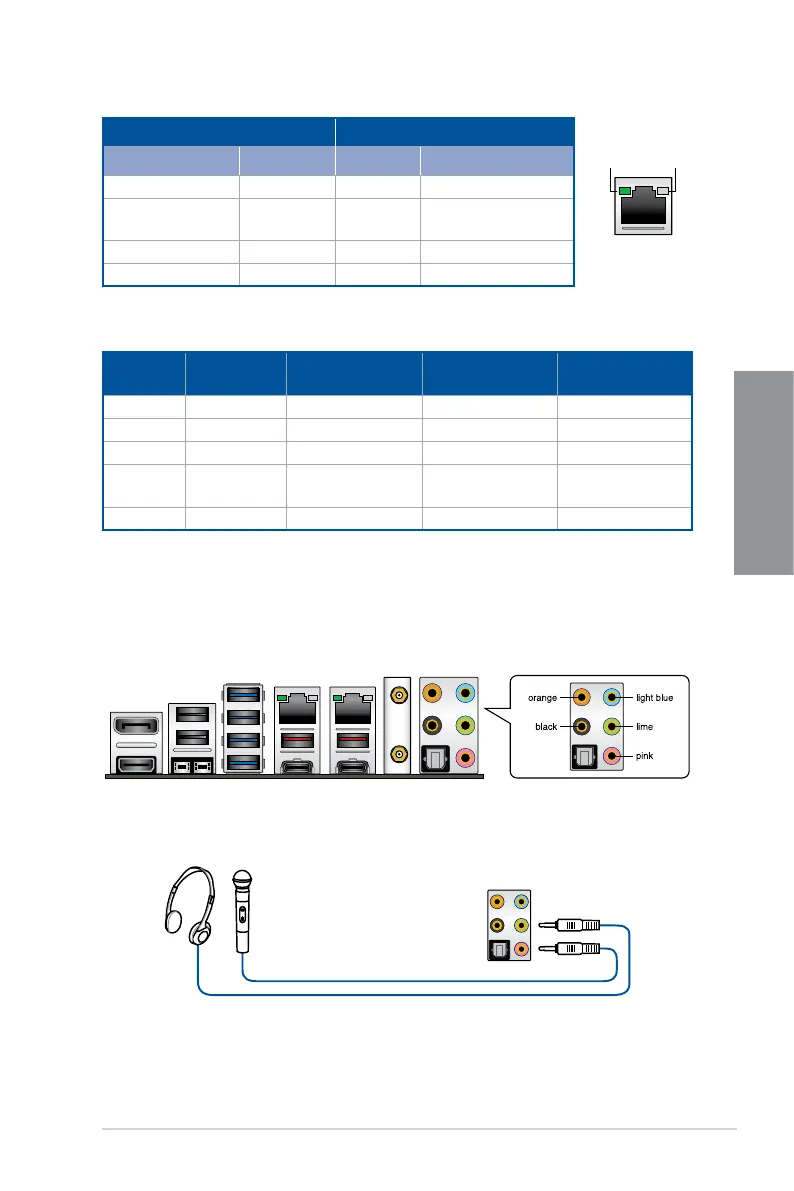

Asus ROG STRIX Z590-E GAMING Series User Manual

ROG STRIX Z590-E GAMING Series
2-25
Chapter 2
ACT/LINK
LED
SPEED
LED
LAN port
* Intel
®
I225-V 2.5Gb Ethernet port LED indications
Activity Link LED Speed LED
Status Description Status Description
OFF No link OFF No link
GREEN BLINKING Data activity OFF
100 Mbps / 10 Mbps
connection
GREEN BLINKING Data activity GREEN 2.5 Gbps connection
GREEN BLINKING Data activity ORANGE 1 Gbps connection
** Audio 2, 4, 5.1 or 7.1-channel configuration
Port
Headset
2-channel
4-channel 5.1-channel 7.1-channel
Light Blue Line In Line In Line In Side Speaker Out
Lime Line Out Front Speaker Out Front Speaker Out Front Speaker Out
Red Mic In Mic In Mic In Mic In
Orange – – Center/Sub
woofer
Center/Sub
woofer
Black – Rear Speaker Out Rear Speaker Out Rear Speaker Out
2.3.2 Audio I/O connections
Audio I/O ports
Connect to Headphone and Mic

Asus ROG STRIX Z590-E GAMING Series Specifications

General

Chipset	Intel Z590
CPU Socket	LGA 1200
Memory Slots	4 x DIMM
Maximum Memory	128GB
Memory Type	DDR4
Audio	ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
Form Factor	ATX
Bluetooth	Bluetooth 5.2
RGB Lighting	Aura Sync RGB
Memory Speed	5333MHz (OC)
PCIe Slots	1 x PCIe 3.0 x16
Storage	3 x M.2, 6 x SATA 6Gb/s
USB Ports	4 x USB 2.0
Networking	Intel 2.5Gb Ethernet
