Asus Z9PE-D8 WS User Manual

2-8 Chapter 2: Hardware information
2.3.1 Installing the CPU
To install a CPU:

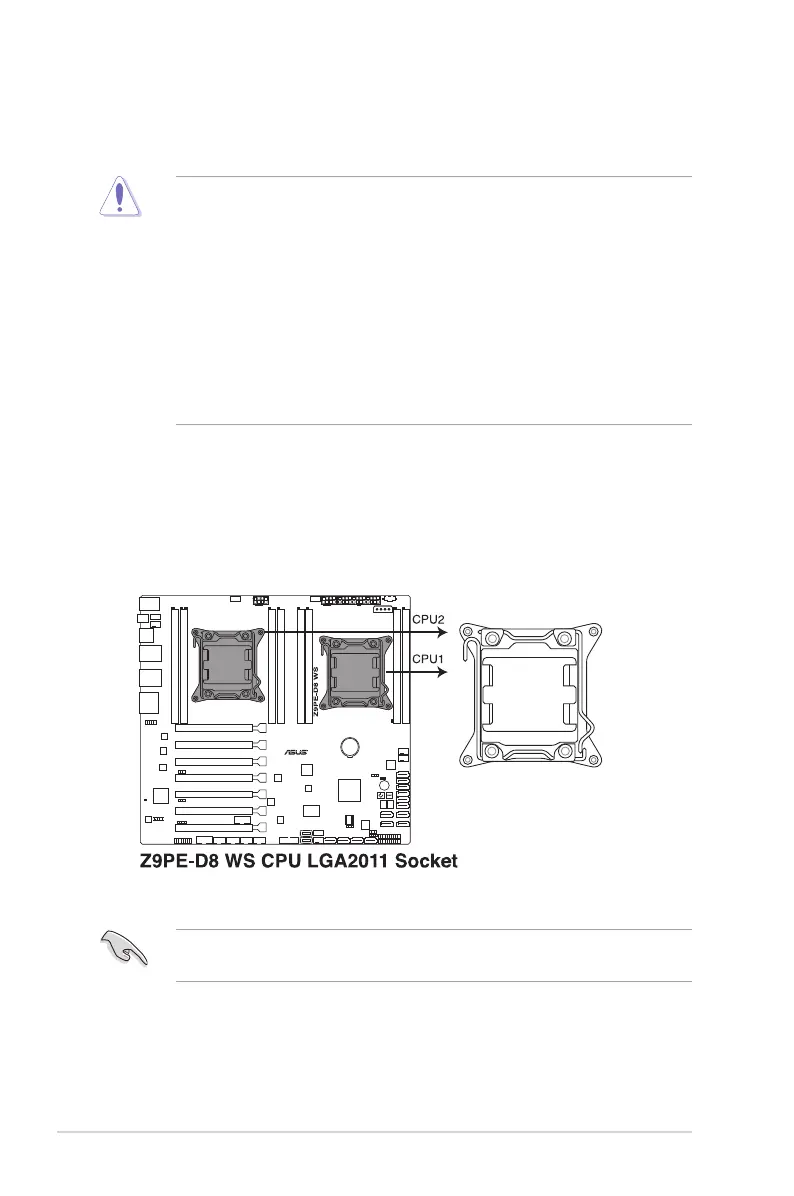

1. Locate the CPU socket on the motherboard.
Before installing the CPU, ensure that the socket box is facing toward you and
the load lever is on your left.
2.3 Central Processing Unit (CPU)
The motherboard comes with a surface mount LGA2011 socket designed for the
Intel
®
Xeon E5-2600 family processor.
• Upon purchase of the motherboard, ensure that the PnP cap is on
the socket and the socket contacts are not bent. Contact your retailer
immediately if the PnP cap is missing, or if you see any damage to the PnP
cap/socket contacts/motherboard components. ASUS will shoulder the cost
of repair only if the damage is shipment/transit-related.
• Keep the cap after installing the motherboard. ASUS will process Return
Merchandise Authorization (RMA) requests only if the motherboard comes
with the cap on the LGA2011 socket.
• The product warranty does not cover damage to the socket contacts
resulting from incorrect CPU installation/removal, or misplacement/loss/
incorrect removal of the PnP cap.

Asus Z9PE-D8 WS Specifications

General

PS/2 ports quantity	1
USB 2.0 ports quantity	6
VGA (D-Sub) ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 2.0 connectors	4
Chassis intrusion connector	Yes
PCI Express x16 slots	7
Memory channels	Quad-channel
Supported memory types	DDR3-SDRAM
Maximum internal memory	256 GB
Supported memory clock speeds	1066, 1333, 1600, 1866, 2000, 2133 MHz
BIOS type	UEFI
ACPI version	2.0a
BIOS memory size	64 Mbit
RAID levels	0, 1, 5, 10
LAN controller	Intel® 82574L
Ethernet interface type	Gigabit Ethernet
Parallel processing technology support	4-Way SLI, Quad-GPU CrossFireX
Component for	PC
Motherboard chipset	Intel® C602
Audio output channels	7.1 channels
Motherboard form factor	SSI EEB
System bus rate	8 GT/s
Processor manufacturer	Intel

Weight and Dimensions

Depth	330 mm
Width	305 mm
