2-22 Chapter 2: Hardware information

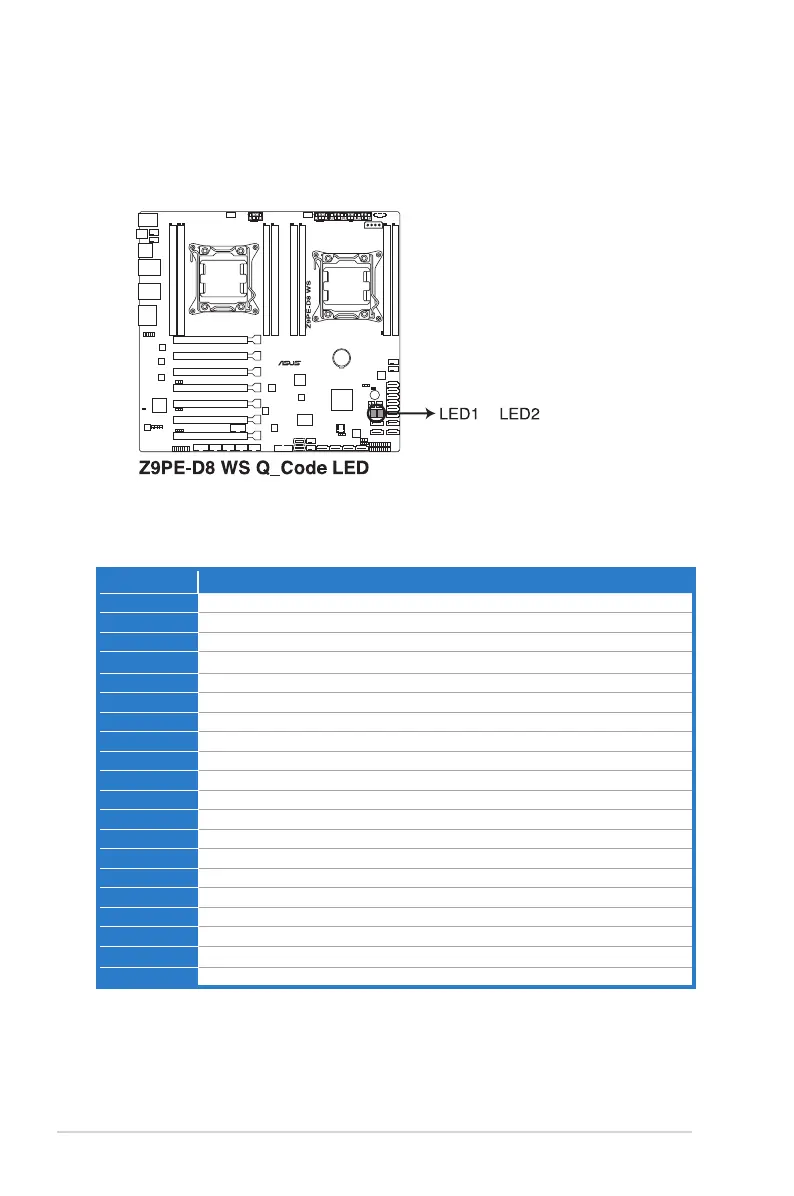

3. Q-Code LEDs
The Q-Code LED design provides you the 2-digit display, allowing you to know
the system status. Refer to the Q-code table below for details.
Code Description
00
Not used
01
Power on. Reset type detection (soft/hard).
02
AP initialization before microcode loading
03
System Agent initialization before microcode loading
04
PCH initialization before microcode loading
06
Microcode loading
07
AP initialization after microcode loading
08
System Agent initialization after microcode loading
09
PCH initialization after microcode loading
0A
Initialization after microcode loading
0B
Cache initialization
0C – 0D
Reserved for future AMI SEC error codes
0E
Microcode not found
0F
Microcode not loaded
10
PEI Core is started
11 – 14
Pre-memory CPU initialization is started
15 – 18
Pre-memory System Agent initialization is started
19 – 1C
Pre-memory PCH initialization is started
2B – 2F
Memory initialization
30
Reserved for ASL (see ASL Status Codes section below)
Q-Code table

Asus Z9PE-D8 WS Specifications

General

PS/2 ports quantity	1
USB 2.0 ports quantity	6
VGA (D-Sub) ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 2.0 connectors	4
Chassis intrusion connector	Yes
PCI Express x16 slots	7
Memory channels	Quad-channel
Supported memory types	DDR3-SDRAM
Maximum internal memory	256 GB
Supported memory clock speeds	1066, 1333, 1600, 1866, 2000, 2133 MHz
BIOS type	UEFI
ACPI version	2.0a
BIOS memory size	64 Mbit
RAID levels	0, 1, 5, 10
LAN controller	Intel® 82574L
Ethernet interface type	Gigabit Ethernet
Parallel processing technology support	4-Way SLI, Quad-GPU CrossFireX
Component for	PC
Motherboard chipset	Intel® C602
Audio output channels	7.1 channels
Motherboard form factor	SSI EEB
System bus rate	8 GT/s
Processor manufacturer	Intel

Weight and Dimensions

Depth	330 mm
Width	305 mm
