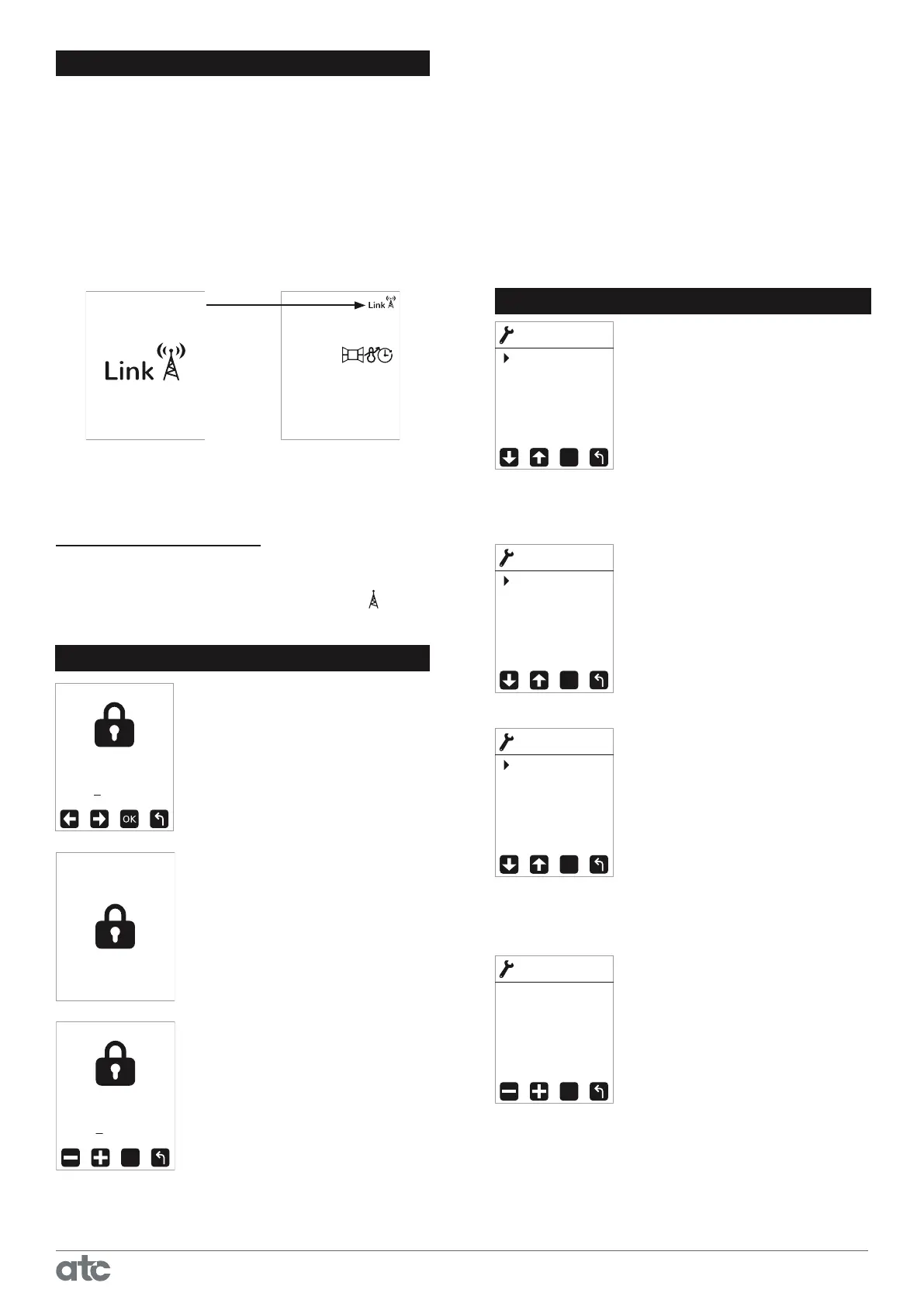

ATC Sun Ray RF Series User Manual

12
PAIRED WITH
GATEWAY
Next Program ON Time
Starts at:Tue. 17:00
21
.5°C
Set point:
Tue. 15:00
ENTER CODE
TO LOCK
- - - - OK
LOCKED
ENTER CODE
TO UNLOCK
- - - - OK
OK
Units
Control Type
Temp Offset
Open Window
Self Adaptive
ADVANCED
SETTINGS
OK
Celsius
Fahrenheit
UNITS
OK
PID
Hysteresis
.25°C
Hysteresis .35°C
Hysteresis .5°C
Hysteresis .75°C
Control Type
OK
Display temp
22.5°C
Offset +1.1°C
Temp. Offset
OK
PROGRAMMING WITH APP
To programme your Sun Ray RF with a Sun
Ray RF Gateway you must pair the radiator to
the Gateway. First you must activate the pairing/
discovery mode in the Gateway, press Link button
for 2 seconds. Details of this can be found in the
Sun Ray RF Gateway instruction manual.
Once this is done, the way to pair the radiator
is to press the OK button for 3 seconds while the
radiator is in one of the main modes (OFF, AUTO,
MANUAL).
Your Sun Ray RF radiator is now ready to accept
programme instructions from the Gateway (you
will need to complete Sun Ray RF web activation.
http://tevolve.termoweb.net )
If the radiator has been linked to the Gateway
and for some reason communication is lost, the
Link icon disappears and the antenna starts
ashing in red alternating with Link text.
KEYPAD LOCKING (ANTI-TAMPER)
The keypad can be locked
to prevent any unauthorised
person (children, people in public
places, nurseries, ofces, hotels
etc.) altering the settings of the
radiator.
A Password is required to lock
the keypad (0 0 0 0 by default),
See Password Settings Chapter
for further details on changing
passwords.
To Lock the radiator Press and
hold the + and – buttons until
the lock screen appears. Enter
the password on the screen and
press Ok. The screen will change
to show the Lock screen and any
button presses will be ignored
and the locked screen displayed.
To unlock the keypad press
and hold the + and - until the
unlock screen appears. Enter the
password and press OK. If the incorrect password
is entered “INVALID CODE” will be displayed.
When the keypad is locked the radiator will
still receive communications from the Sun Ray RF
Gateway.
ADVANCED SETTINGS
The Advanced settings menu
is password protected to prevent
any inadvertent changes to the
factory settings.
To access the Advanced
settings, enter the password
(default 0 0 0 0). It is
recommended to set a custom
password once installation is complete. (For more
information See password section).
The units menu allows the
main temperature units of the
radiator to be chosen between
Celsius (°C) and Fahrenheit (°F).
The Control Type menu
allows two types of control of
the temperature control setting.
PID will calculate the best
switching point for the heater
depending on previous room
readings. Hysteresis is the
amount of difference between
the detected temperature and the setpoint. It is
not recommended to change these settings.
The temperature offset menu
allows the display temp to be
adjusted by ± 3. Adjusting this
setpoint will affect the operation
of the thermostat setpoints,
changing this setting is only
recommended if the displayed
temperature is noticeably
different from another sensor in the space.
