ATC Sun Ray RF Series User Manual

9
Wednesday
11:00
COMFORT
21.5°C
Set point:
Wed. 11:00
21
.5°C
Set point:
Wed.11:00
COMFORT
Set point:
21
.0°C
OK
18.0°C
ECO
Set point:
OK
7
.0°C
ANTI-FROST
Set point:
OK
COMFORT
21
.5°C
Set point:
Wed. 11:00
COMFORT
ECO
ANTI-FROST
PROGRAM
SETTINGS
CONFIG
COMFORT
COMFORT
ECO
ANTI-FROST
PROGRAM
SETTINGS
CONFIG
TIME
Settings
DISPLAY
Settings
ADVANCED
Settings
SETTINGS
TIME
DATE
DST
TIME
SETTINGS
OK

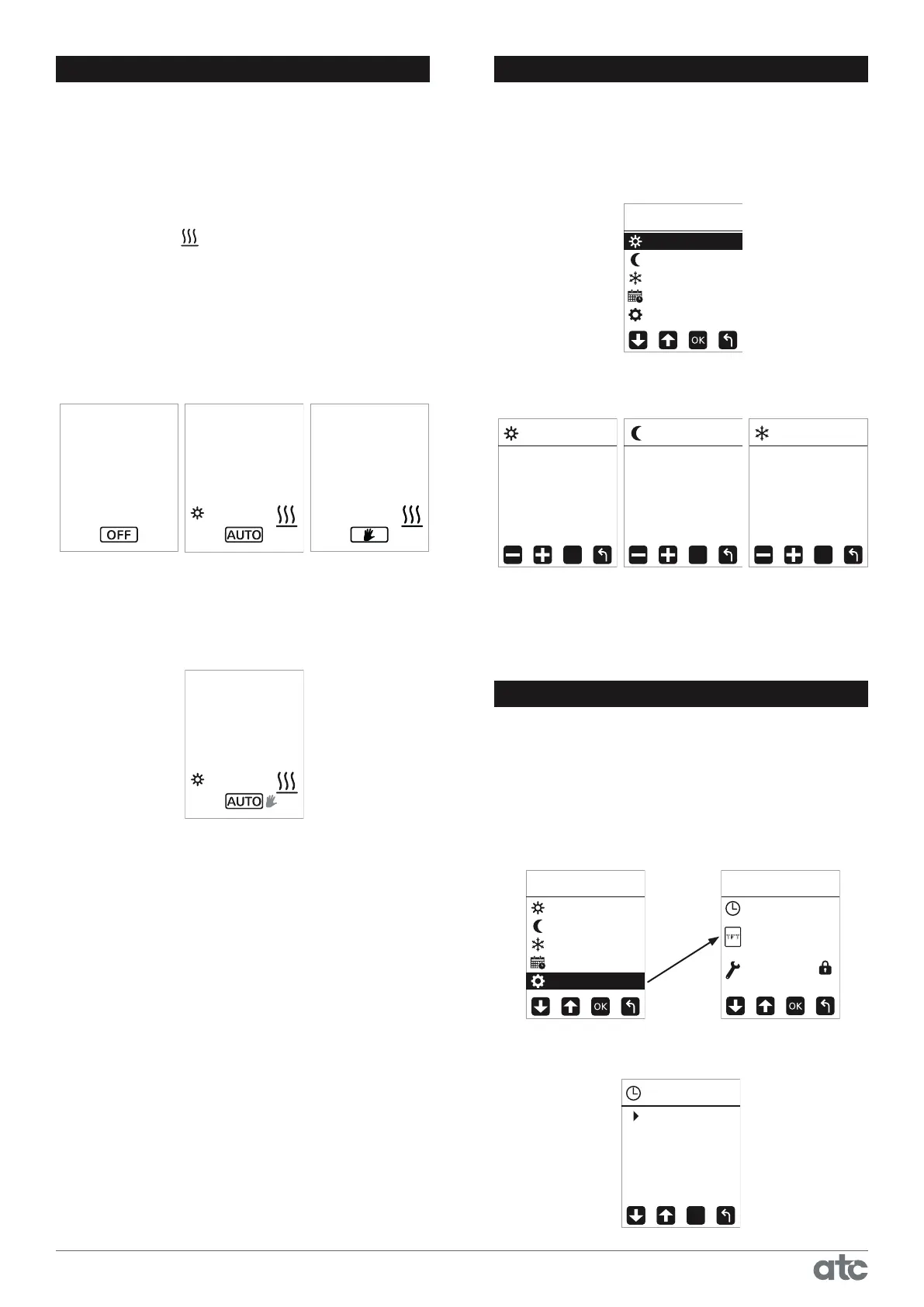

Adjusting the temperature set points in the
following way will only affect the temperatures that
are used for program modes.
To change these set up temperatures press and
hold the CONFIG button until the following screen
appears:
Select either Comfort, Eco or Anti-Frost and
press OK to enter the menu.
Press the +/- button to change the temperature
of each mode then press OK to conrm and return
to the main operation screen, repeat the above to
set the other temperature setpoints.
If a radiator is paired with a Sun Ray RF
Gateway then the local time from the internet is
automatically applied to the radiator.
To set the Clock on an unpaired Radiator, press
and hold the Cong button until the CONFIG
menu is shown and then select SETTINGS and
the press OK.
In the TIME menu the Time, Date and Daylight
Savings (DST) can be set.
MANUAL PROGRAMMING
SETTING THE TIME AND DATE
To assist with programming the TFT screen is
backlit and will stay illuminated for approximately
10 seconds after the last button is pressed. (to
change the backlight time, see the section on
DISPLAY)
When the radiator is operational and the room
temperature is lower than the set temperature the
heating symbol will be shown indicating that
the radiator is producing heat. When the room
temperature equals or is above the set temperature
the heating symbol will not be present indicating
the radiator is not producing heat.
The following screens show OFF, AUTO and
MANUAL modes. To change between the different
modes press MODE/OK button.
When the radiator is in AUTO mode the
temperature can be adjusted by pressing the +/-
buttons. This change will remain active until either
the next programme change or until midnight when
the temperature will revert to the preset value.
When the temperature has been adjusted in
AUTO mode a hand will show beside the auto
to symbol to show the amended setpoint. To
manually return the heater to the setpoint cycle
the modes until returning to AUTO.
Use the +/- keys to set the temperature when
the radiator is in MANUAL mode.
SET PROGRAM TEMPERATURES
