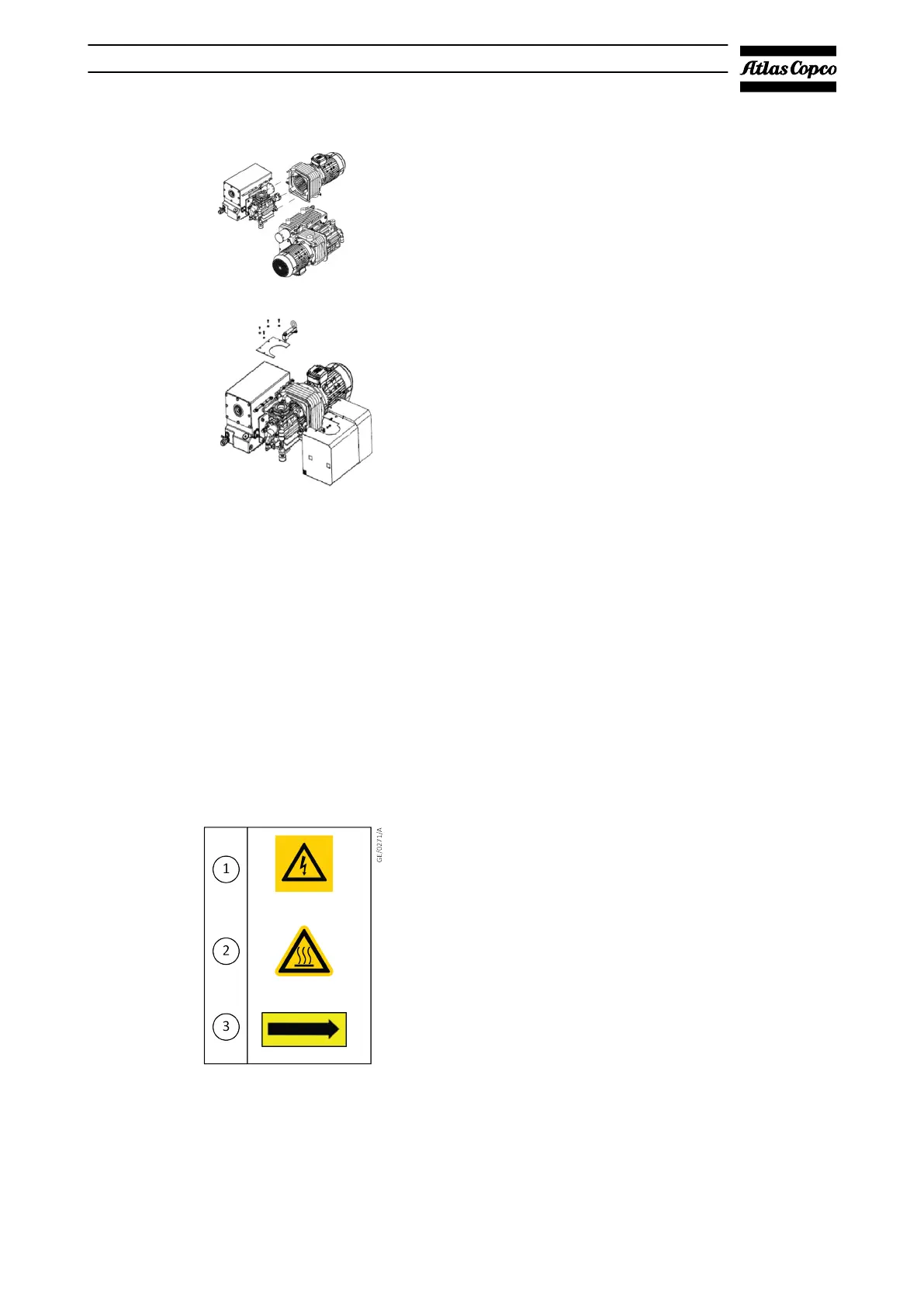

6. To assemble motor and coupling housing on the pump, follow step 2 in
reverse order.
7. Cover the pump. Mount lifting bar on the pump.
8. Re-install the drain plug. Fill the recommended quantity of oil in the pump.
5.4. Electrical connections
Always use a protection system, including an overcurrent protection and an
electrical disconnecting device, between the pump and the electric power supply
.
Motor currents can be found on the motor data plate. The pump is normally
delivered without electrical cable and without switch. For the electrical
connection, check the diagram inside the terminal box or on the motor data plate.
Additional safety devices are available as options including an oil pump
temperature switch.
5.5. Pictographs
1. Warning: Voltage 2. Warning: Hot surface
3. Rotation direction of fan
1. Warning: Voltage 2. Warning: Hot surface
3. Rotation direction of fan
Installation
12/2021 - ©Atlas CopcoPage 626996022430_C
