Before starting, open the air outlet valve(s) (AOV)
and push circuit breaker button (F1) once (open hood
first). Circuit breaker button should now be in
position B.
To preheat if necessary push the cold start button S6
for a short period.
STARTING PROCEDURE (WITH COLD START; OPTION)

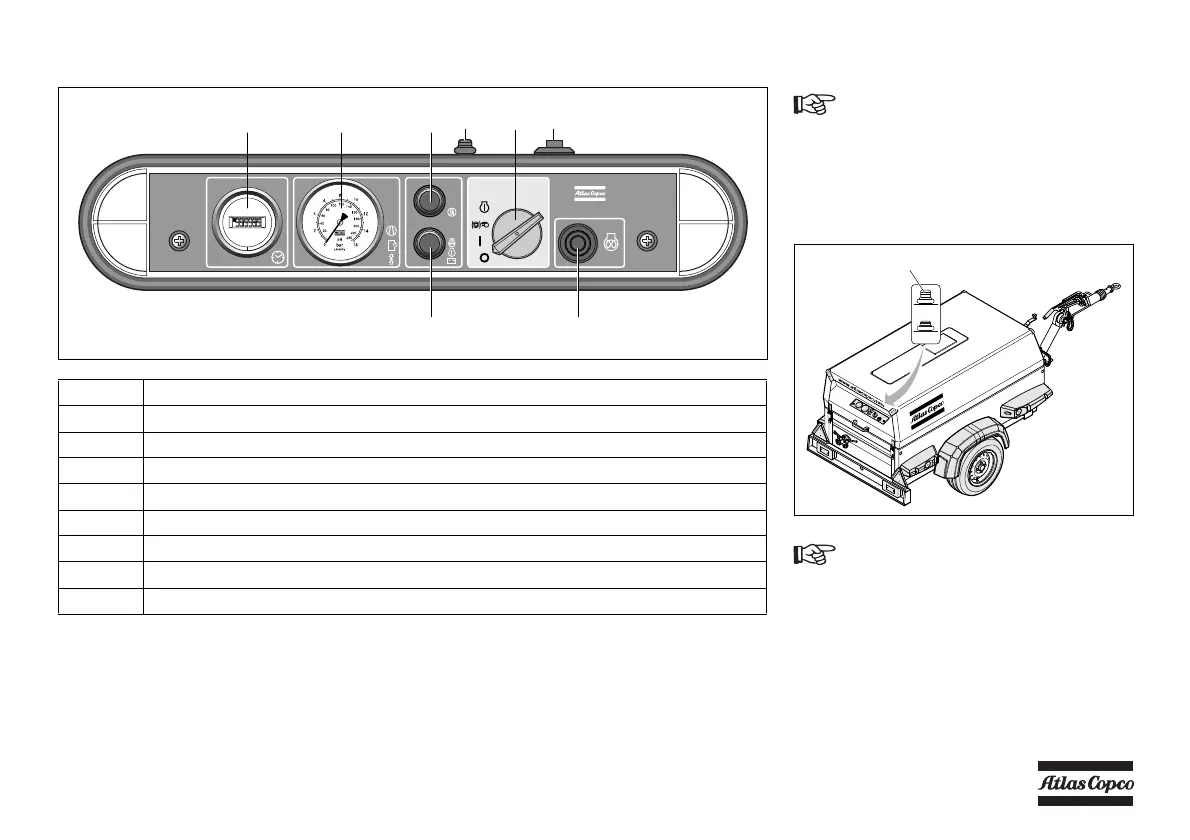

Reference Name
P1 Digital hour meter
F1 Circuit breaker button
PG Working pressure gauge
H1 Temperature alarm lamp (red)
H2 General alarm lamp (red)
S1 Start switch
S4 Lamp test button
S6 Cold start button
(P1) (PG) (H1)
(H2)
(S1)
(S6)
(S4)
(F1)
The control panel indicates receiver
pressure (PG) and accumulated
operating hours (P1).
The circuit breaker button is a
protection against unintended starting
of the compressor.
A
B
(F1)
