- 61 -

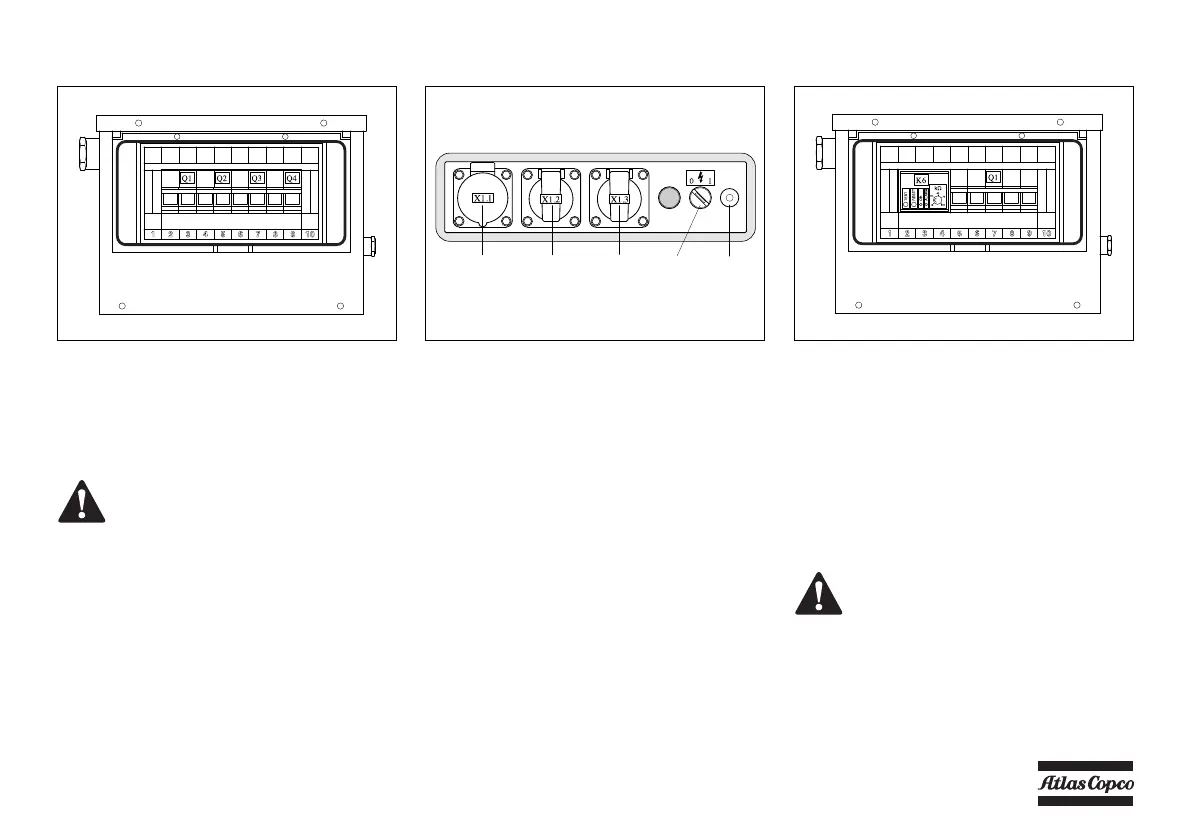

Generator control box
Protective device
The generator is protected by circuit breakers that
switch off if a connected electrical device has an
electrical fault.
Control panel (generator) Generator control box
Q1 Main circuit breaker 2-pole
Q2 Circuit breaker 2-pole
Q3 Circuit breaker 2-pole
Q4 Circuit breaker 2-pole
Before connecting an electrical device,
always check the data listed on the rating
plate.
Generator 230/400V:
S7 Switch
H3 Lamp (green)
X1.1 Socket 400 V/ 16 A
X1.2 Socket 230 V/ 16 A*
X1.3 Socket 230 V/ 16 A
GND Terminal earth cable
Generator 230V:
S7 Switch
H3 Lamp (green)
X1.1 Socket 230 V/ 16 A**
X1.2 Socket 230 V/ 16 A
X1.3 Socket 230 V/ 16 A
GND Terminal earth cable
230/400V AND 230V - 3PH WITHOUT AUTOMATIC CONTROL SYSTEM
(X1.3)(X1.2)(X1.1) (H3/S7) (GND)
Generator 230/400V:
Q1 Main circuit breaker 4-pole + shunt trip coil
K6 Insulation monitoring relay
Generator 230V:
Q1 Main circuit breaker 3-pole + shunt trip coil
Q2 Circuit breaker 2-pole (for 12.5 kVA only)
K6 Insulation monitoring relay
Before connecting an electrical device,
always check the data listed on the rating
plate.
* For 6 kVA.
For 12.5 kVA: Socket 400V / 16A.
** For 6 kVA.
For 12.5 kVA: socket 230V / 32A.
