• The screen shows the current setting. To modify this setting, press the key “Modify” (F2); the setting
will blink.
• The key “Limits” (F2) can be used to find out the limitations for the parameter.
• Use the scroll keys (1) to change the setting.
• Press the key ”Program” (F1) to program the new value or the key “Cancel” (F3) to cancel the
modification operation.
• The procedure to modify other parameters pressure is similar.
The regulator will not accept new values beyond the limitations. Press the key “Limits” to
check the limitations for the parameter. Consult Programmable settings for the most
important settings.
5.16 Modifying protection settings
Control panel
Function
To modify protection settings:
• “Shutdown”, e.g. for the compressor element outlet temperature
• “Shutdown warning”, e.g. for the compressor element outlet temperature
• “Warning”, e.g. for the dew-point temperature
• “Service warning”, e.g. for the maximum pressure drop over the air filter
To check various compressor conditions, e.g. the status of the emergency stop button. Some parameters
cannot be modified.
Procedure
Starting from the Main screen (see Main screen menu):
• Press the “Menu” (F1) key.

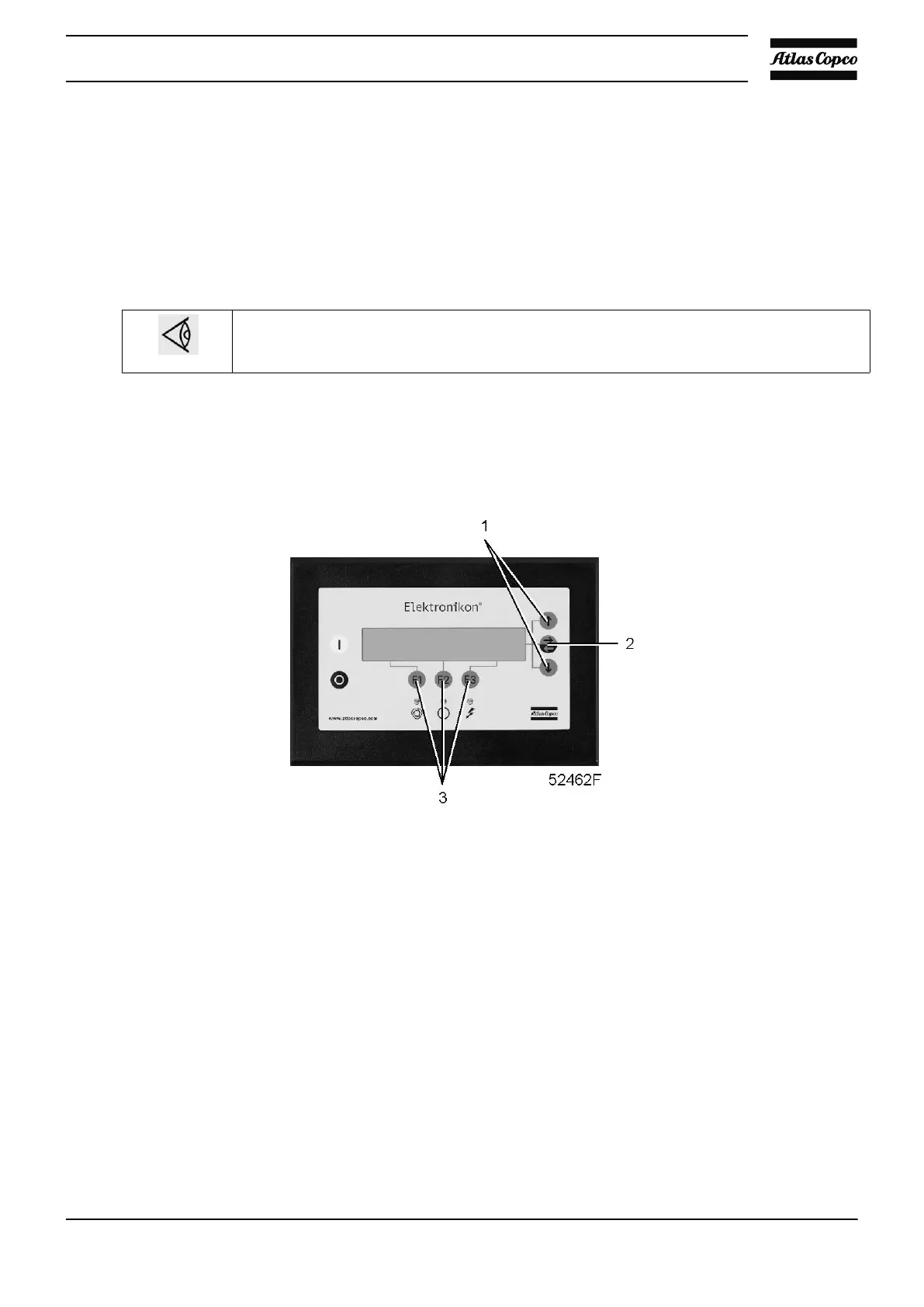

• Press the arrow down key (1) until “Modify parameters” is followed by a horizontal arrow.
• Activate the menu by pressing the tabulator key (2).
Instruction book
2920 1815 04 93
To Next Page
