2.2.2 Unpacking and Checking Package Contents
Follow the procedure below for unpacking the carton in which the MP-124 is shipped.
¾ To unpack the MP-124:
1. Open the carton and remove packing materials.
2. Remove the MP-124 unit from the carton.
3. Check that there is no equipment damage.
4. Ensure that in addition to the MP-124 unit, the package contains the following items:
• AC power cable or an unwired DC terminal block with two crimping screws
(depending on ordered model).
• Two short equal-length brackets and bracket-to-device screws for 19-inch rack
installation.
• Regulatory Information document.
5. Check, retain and process any documents.
6. Notify AudioCodes or your local supplier of any damage or discrepancies.
2.2.3 Mounting the MP-124
The MP-124 can be mounted in one of the following ways:
Desktop mounting (refer to 'Desktop Mounting' on page 24).
Installed in a standard 19-inch rack (refer to '19-inch Rack Mounting' on page 25).
2.2.3.1 Desktop Mounting
For MP-124 desktop mounting, no brackets are required. Simply place MP-124 on a
desktop in the required position.

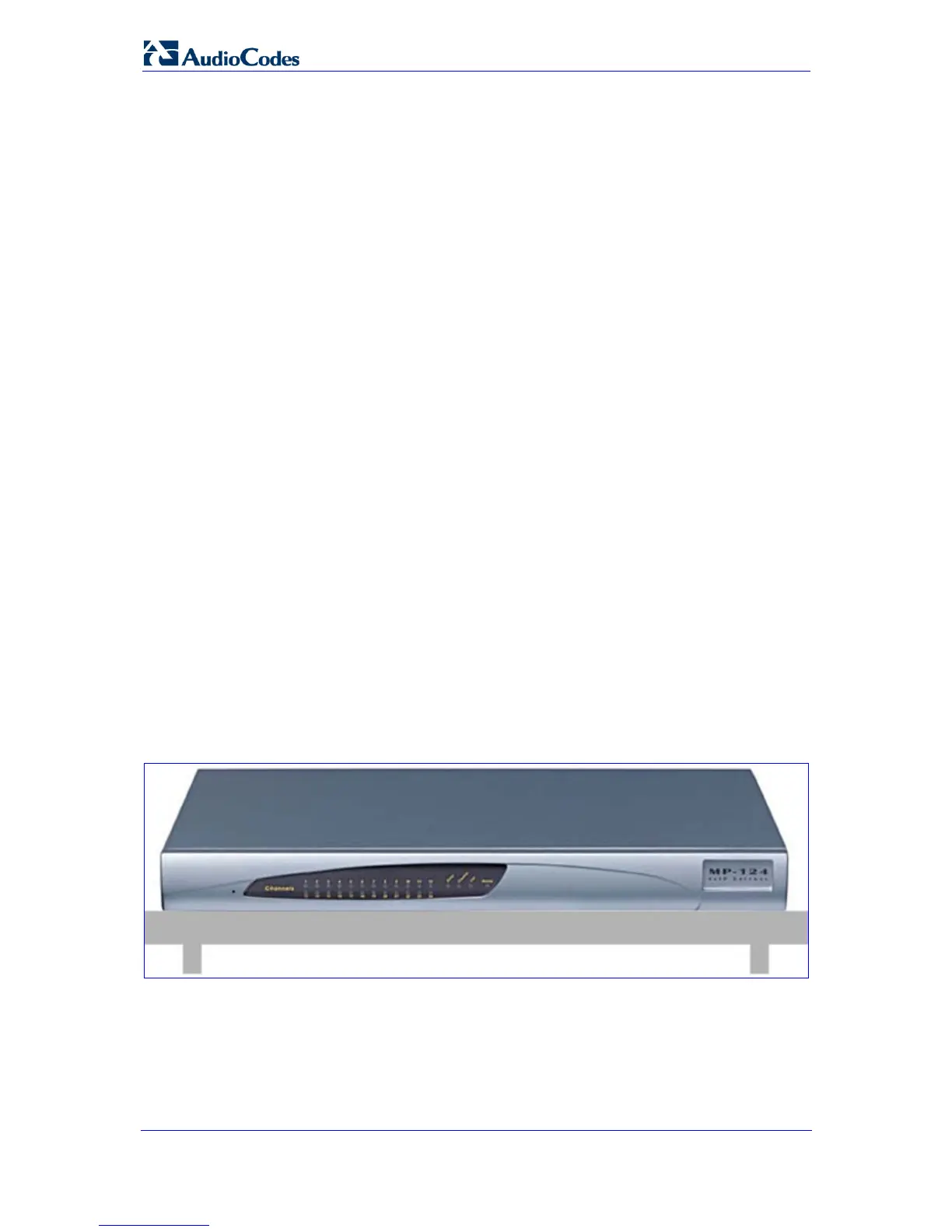

Figure 2-16: MP-124 Desktop Mounting
