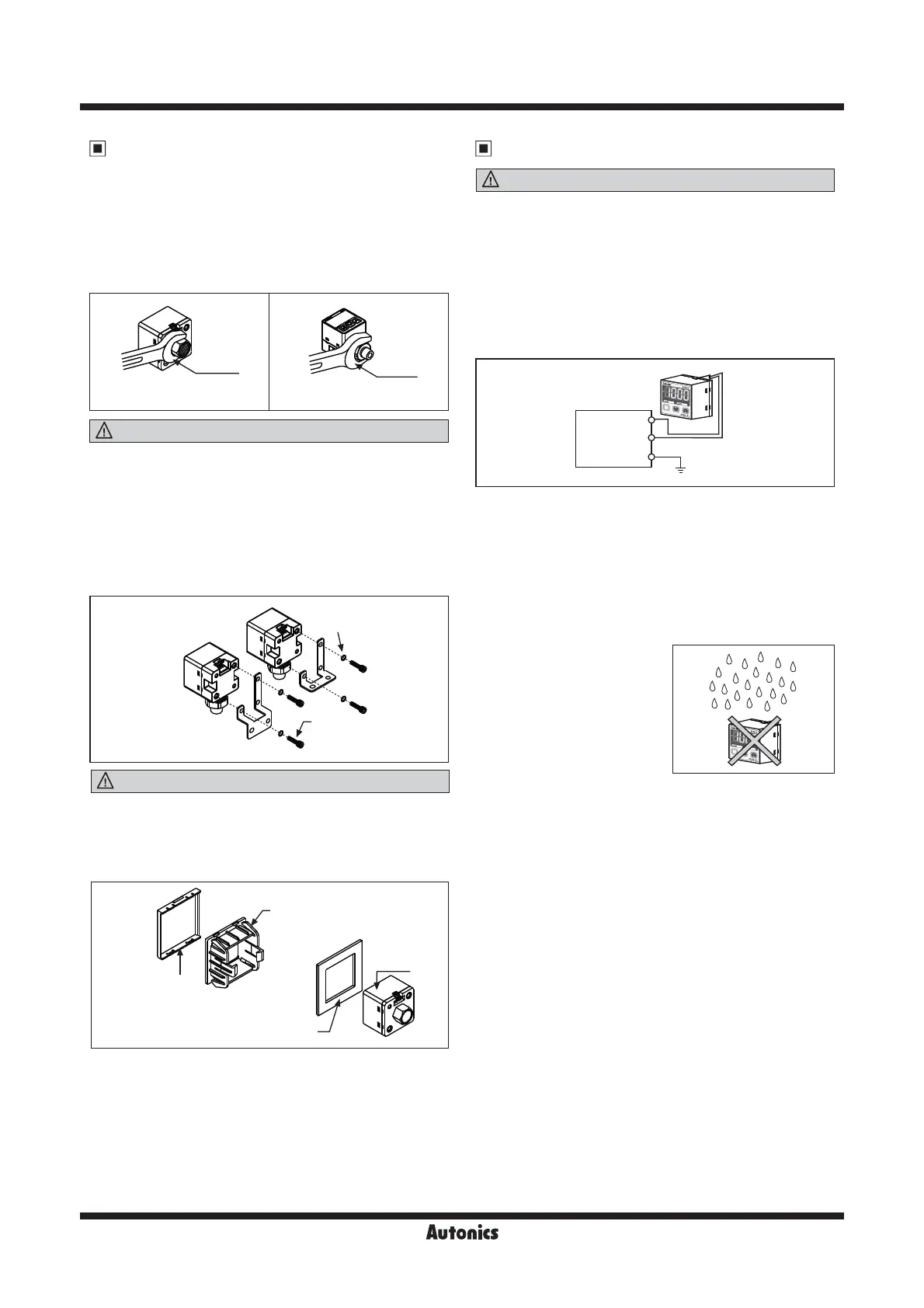

Autonics PSAN Series User Manual

E-16
1. Pressure port is divided as basic and option specifi cation.
Therefore, be sure that to use commercially available
one touch fi tting. (Standard: R(PT)1/8", Option: NPT1/8",
7/16"-20UNF)
2. Please connect it by using spanner(12mm, 17mm) at
the metal part in order not to overload on the body when
connecting one touch fi tting.
3.Two different fixing brackets are provided for PSAN
model. Select proper one with considering your
application environments.
4. At first, please unscrew hexagon wrench bolt and
assemble the bracket on this unit by fi xing hexagon the
wrenchbolt.
The tightening torque of one touch fitting should be
max.100kgf
.
cm. If not, it may cause mechanical problem.
In this case, tightening torque of hexagon wrench should
be max. 30kgf
.
cm. If not, it may cause mechanical problem.
PSAN Series
F.G.
Ground
PSAN Series is for sensing of non corrosive gas.
Do not use this product at corrosive gas or fl ammable
gas, etc.
Switching
mode
Power
Supply
+
-
Spring washer
Hexagon wrench bolt
(M3x6)
Panel mounting bracket
(PSO-B02)
Protection
cover
(PSO-P01)
Body
(PSAN)
Bracket panel
Installation Proper usage
Caution
Caution
Caution
5. Bracket(PSO-B02) and front protection cover (PSO- P01)
are sold separately. Please see the pictures for installation.
• Please using this unit within the range of specification, if
applying pressure is larger than specification, it may not
be working properly due to damage.
• After supplying power, it takes 3 sec. to work.
• When using switching mode power supply, frame ground
(F.G.) terminal of power supply should be grounded.
• It may cause malfunction by noise, when wiring with
power line or high voltage line.
• Do not insert any sharp or pointed object into pressure
port. It may cause mechanical problem due to sensor
damage.
• Do not use this unit with flammable gas, because this is
not an explosion proof structure.
• Be sure that this unit should not be contacted directly with
water, oil, thinner, etc.
• Wiring must be done with power off.
17mm
Spanner
<Fluid type>
12mm
Spanner
<Pneumatic type>
