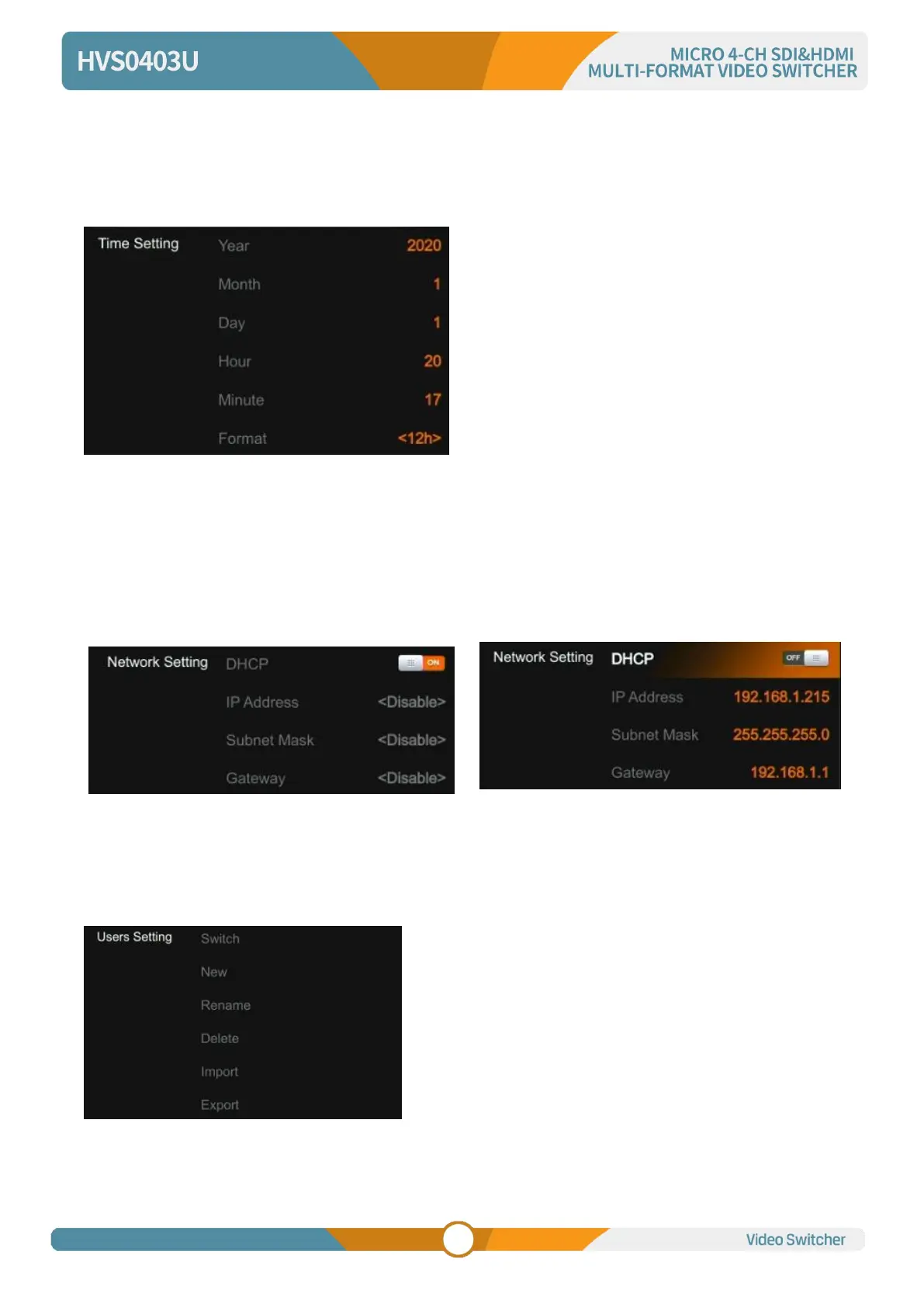

14.6.2. Time Synchronization
Connect video switcher to a PC (windows OS) via LAN port and use the control software to search the
video switcher. The time will be automatically synchronized once the video switcher be searched on the
network.
14.7. Network Setting
There is a switch for DHCP from the menu. When turn on the DHCP, the switcher can obtain an IP
address automatically after connecting the switcher in a network with DHCP.
When turn off the DHCP, user can set the IP address, Subnet Mask, Gate way from menu manually. The
default IP address of the switcher is 192.168.1.215.
14.8. User Setting
User can save all current settings into an account in the switcher. Adding a new user account, renaming
the account, switching between accounts, deleting the account or even user can import or export the
account to a USB flash disk.
14.8.1. New
Adding a new user account and save all current settings to the account. Input the name through a virtual
To Next Page
