Access Door Platform and Ladder (Optional)
The door access platform is shipped fully assembled. Some disassembly is required
for installation.
1. Secure the platform support brackets underneath the access door using 3/8” bolts
provided. See Figures 19 and 20, Details A, B and C.
2. Lift the platform module into place and secure the platform frame to the brackets using
3/8” bolts provided. See Detail D.
3. Secure the support channels to the platform and support brackets using 3/8” bolts
provided. See Detail D. If an access door platform ladder was ordered in addition to the
access door platform, continue to steps 4-5.
4. Secure the ladder using 3/8” bolts provided. See Detail E.
5. Attach the ladder flair using 5/16” X 5” bolts and spacers provided. See Details F and G.
6. Ladder with extensions below the unit must be secured at the bottom (by others).

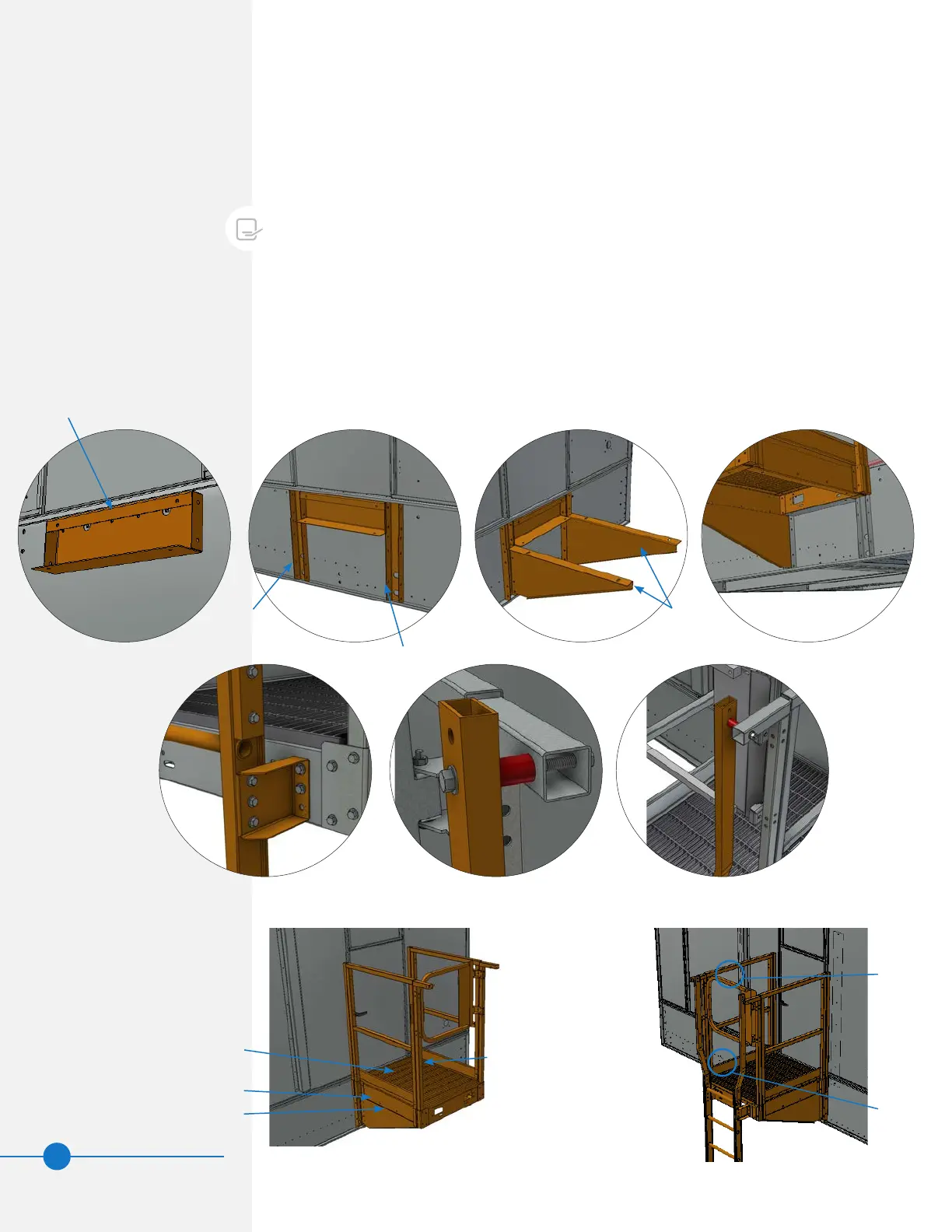

Detail A
Detail B Detail C Detail D
Detail E
Detail F Detail G
Figure 19. Access Door Platform Figure 20. Access Door Platform with Ladder
Detail D
Detail B
Detail C
Details F
and G
Detail E
Detail A
PAP
PAN
PAN
PGG
NOTE: One gusset not shown for
clarity in Detail D.
