Hot Water Basin Handrail for Multi-cell Units (Optional)
1. Follow the instructions for the hot water basin handrail installation on Page 21.
2. Secure the platform plates to the platform base at the gap between the cells using
5/16” tappers. See Detail A and B.
3. Secure the toe board gap plate using 5/16” tappers provided. See Detail C.
4. The welded handrail assemblies for the gap between cells drop into pre-installed
sockets. See Figure D below.
5. Secure the vertical handrail posts in each slot using the 3/8” bolts provided. See
Detail E.
6. Connect the vertical handrail posts to each other using the 5/16” bolts provided. See
Detail F.
Detail A
Detail B Detail C
Detail D Detail E

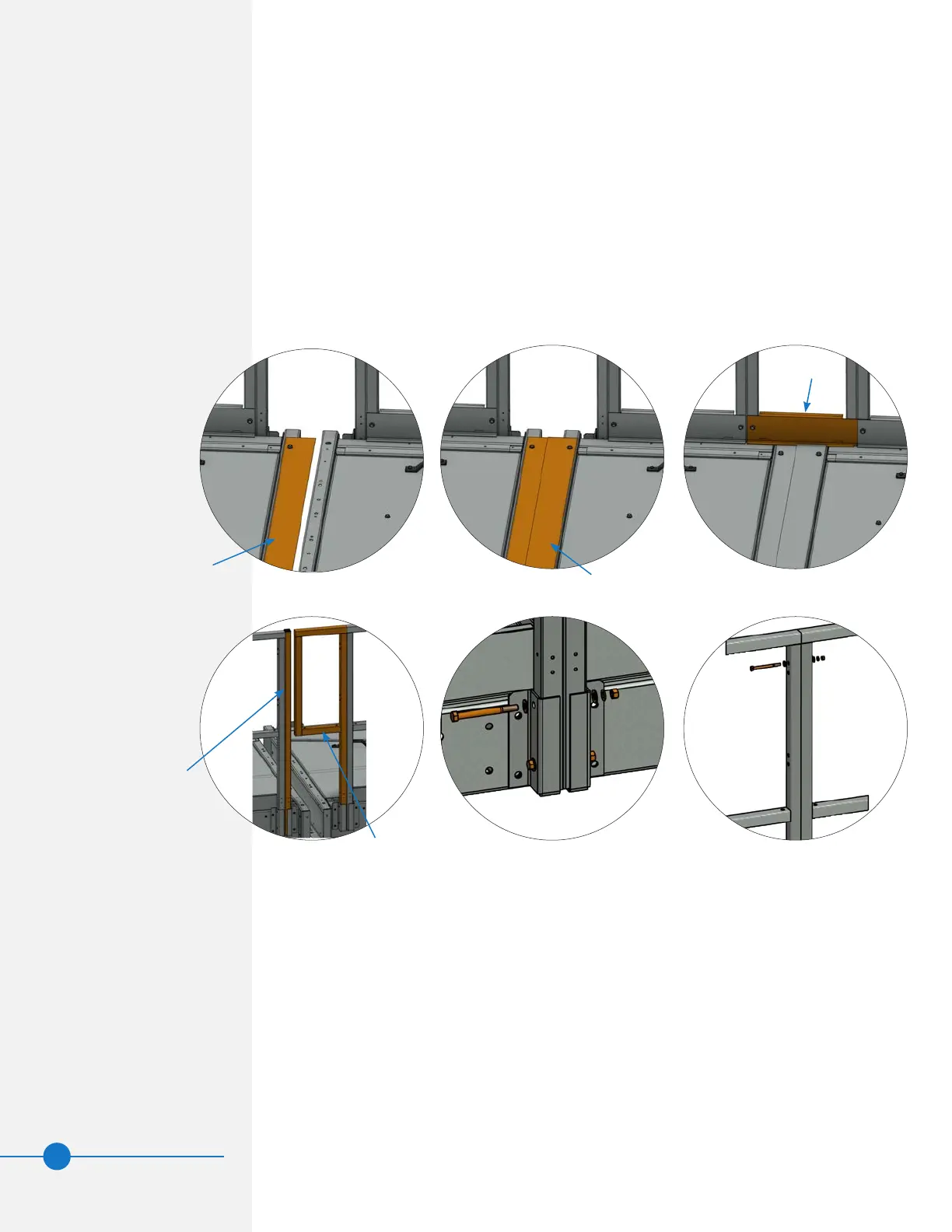

Figure 31. Hot Water Basin Handrail for Multi-cell Units
Detail F
