Internal Ladder Only (Optional)
Lift the ladder guiding the bottom posts into the slots in the walkway as you are dropping
the pre-welded bolts at the top into the mounting holes in the upper support channel. No
further fastening is required. See Figures 23a and 23b.

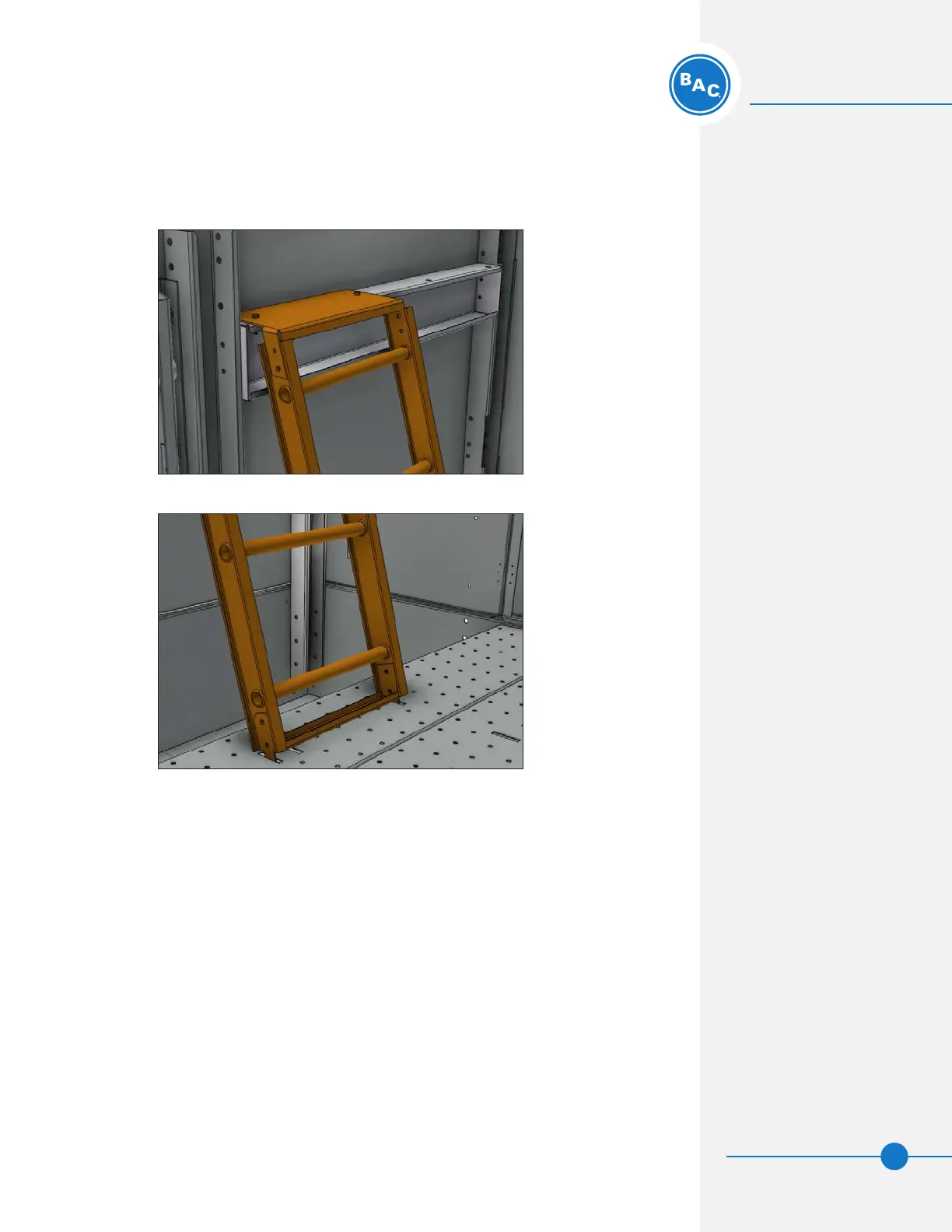

Figure 23a. Internal Ladder (Top)
Optional Accessory
Installation
Internal Service Platform
Ladder
Internal Ladder Only
Figure 23b. Internal Ladder (Bottom)
