BAC S15E-1285-09 Series User Manual

WWW.BALTIMOREAIRCOIL.COM
17
Optional Accessory
Installation
External Access Platform
External Access Platform for
Multi-cell Units
External Access Platform for Multi-cell Units (Optional)
1. Follow the instructions for the External Access Platform on page 16.
2. Fasten the top gap cover bracket using 3/8” bolts provided. See Figure 25, Detail A.
3. Fasten the vertical gap cover using 5/16” tappers provided. See Detail B.
4. Secure the toe board gap plate using 5/16” tappers provided. See Detail C.
5. Secure the platform plates to the platform base using 5/16” tappers and 1/4” x 2” self
tapping screws provided. See Detail D.
Detail A
Detail B Detail C
Detail D

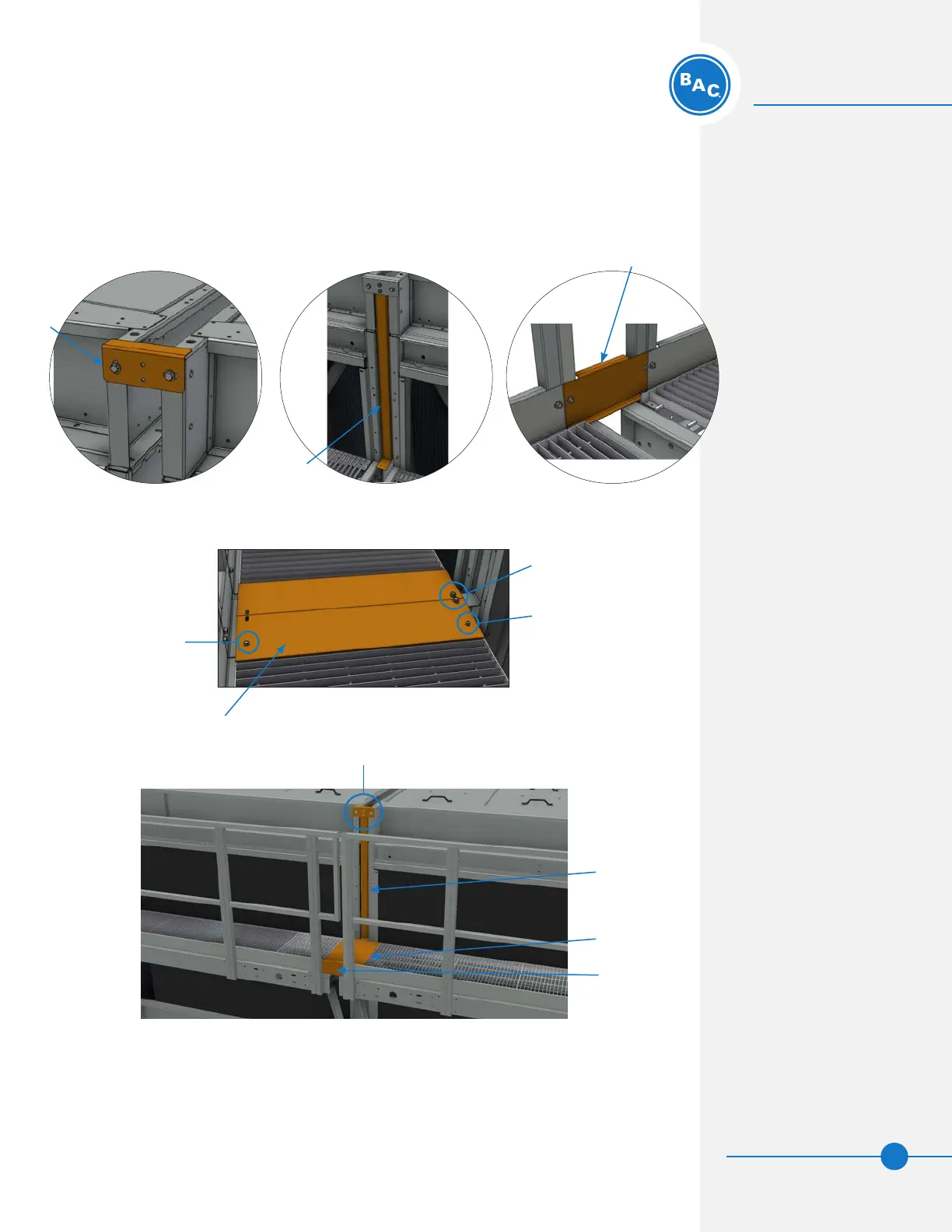

Figure 25. External Access Platform
5/16” Tappers
1/4” x 2” Self
Tapping Screw
1/4” x 2” Self
Tapping Screw
Detail A
Detail D
Detail B
Detail C
PCY
PCZ
PCE
PCC
