Hot Water Basin Handrail Ladder (Optional)
1. If unit is a two-section assembly (see Figure 4, page 5), attach the mid support channel:
– Drop the vertical mounting channels into the sheet metal break of the upper section
base frame as shown in Figure 32, Details A and B.
– Slide up and lock the vertical mounting channel in place by securing the upper tab in
place using the 3/8” bolts provided. See Detail C.
– Secure the horizontal channel in place using the 5/16” bolts provided. See Detail D.
2. Attach the lower ladder support plate using the 3/8” bolts provided. See Detail G.
3. Secure the ladder brackets to the upper, mid (if applicable), and lower supports using
the 3/8” bolts provided. Fasten the ladder to the ladder brackets. See Detail E, F, and G.
4. Fasten the ladder flair to the railing posts using 5/16” bolts provided. See Detail H.
5. Ladder with extensions below the unit must be secured at the bottom (by others).
Optional Accessory
Installation
Hot Water Basin Handrail for
Multi-cell Units
Hot Water Basin Handrail
Ladder Attachment
Detail A
Detail B Detail C Detail D
Detail E
Detail F
Detail G
Detail H

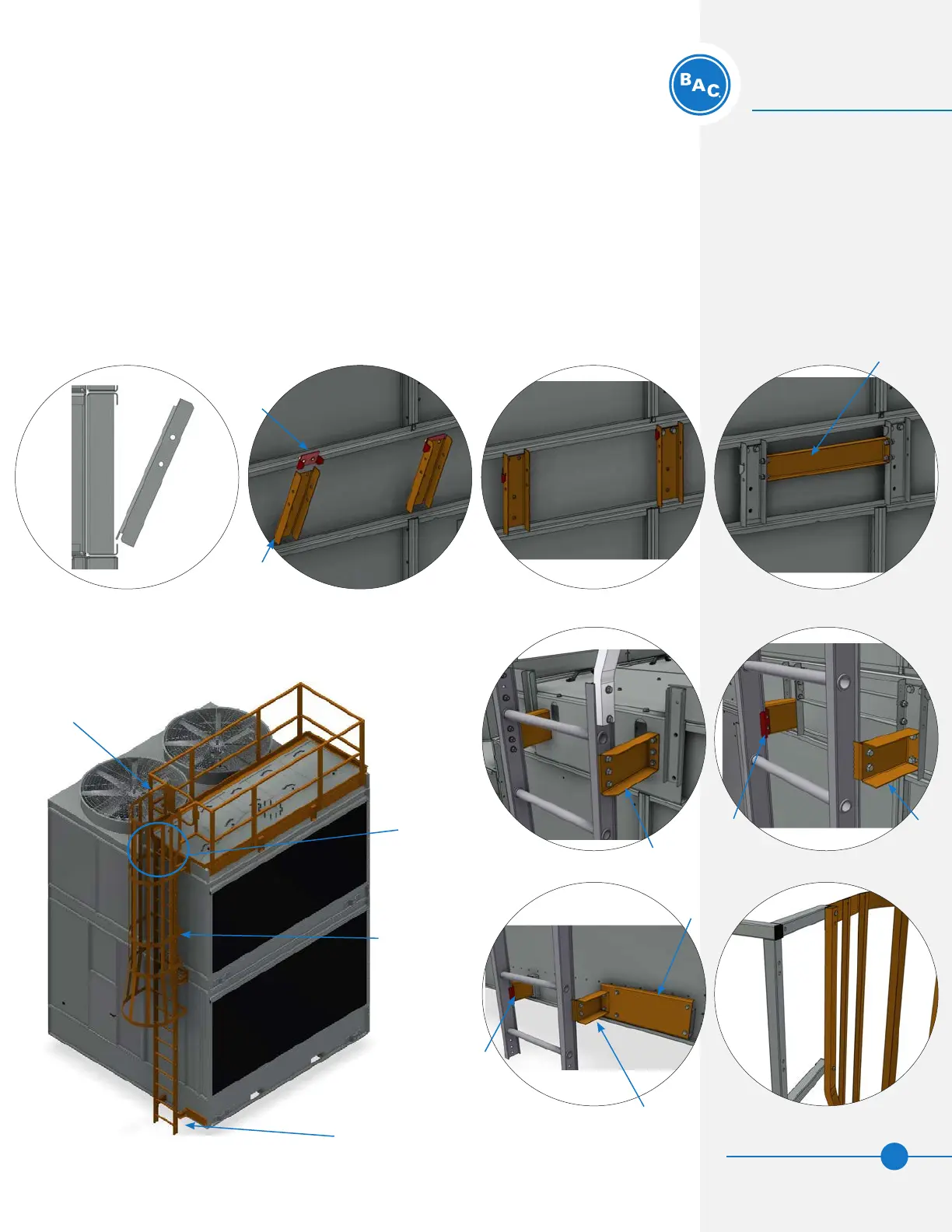

Figure 32. Hot Water Basin Handrail Ladder
Details A, B,
C, D, F
Detail E
Detail G
Detail H
Clamp
PFE
PFC
PDK
LAB
PFD
PEQ
PFD
LAB
