WWW.BALTIMOREAIRCOIL.COM
25
Basin Accessories (Optional)
Basin accessories are not factory installed and will be located in a box inside the unit or
secured to the interior of the unit. Refer to the submittal drawings for basin accessory
installation locations. Utilize an appropriate pipe thread sealant when installing
accessories into basin fittings.

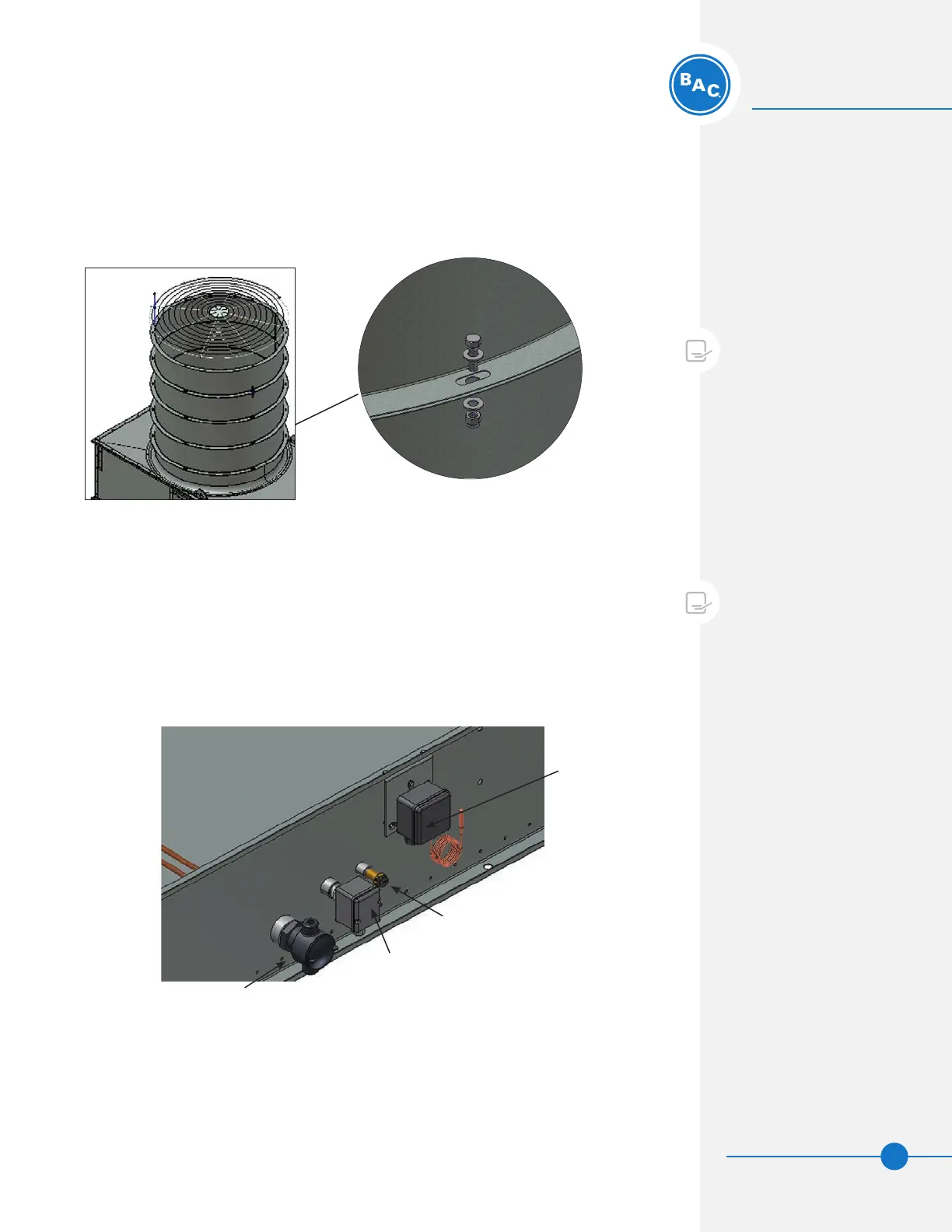

Figure 35. Basin Accessories
Thermostat
Float Switch
Basin
Heater
Bulb Well
NOTE: Basin accessories can be
added at the time of order or as an
aftermarket item.
Fan Cowl Extensions (Optional)
Each fan cowl extension is 10 1/2” tall and up to four fan cowl extensions may be
installed.
1. Fasten the fan cowl extensions through the large diameter pre-punched holes using
the provided hardware as shown in Figure 34, Detail A.
2. Follow the “Fan Guard Installation” instructions on page 10 to install the fan guard.
Figure 34. Fan Cowl Extensions
Detail A
NOTES:
1. Fan cowl extensions can be
added at the time of order or as
an aftermarket item.
2. Discharge sound attenuation
can be added at the time of
order or as an aftermarket item.
Optional Accessory
Installation
Motor Removal System with
Davit Arm
Fan Cowl Extensions
Basin Accessories
