Commissioning
52 Mono Power Unit BUM 62 T
5.99009.03 Baumüller Nürnberg GmbH
7.2 Operation
The device is almost exclusively operated via the controller (see controller description).
Reset (acknowledgement) of errors via the optocoupler input ”Reset” of the connector strip X99AB is the
only exception from this.
7.3 Monitoring functions and their messages
The monitoring functions of BUM 62 T is divided into two groups. The first group is ”Monitoring functions
of the supply part”. The second group is ”Monitoring functions of the power part on the motor side”. This
division corresponds to the internal design of the unit.
Monitoring functions of the supply part
The messages generated by the ”Monitoring functions of the supply part” are indicated via relay contacts
and/or displayed by LEDs. The messages are sent simultaneously to the controller which processes it.

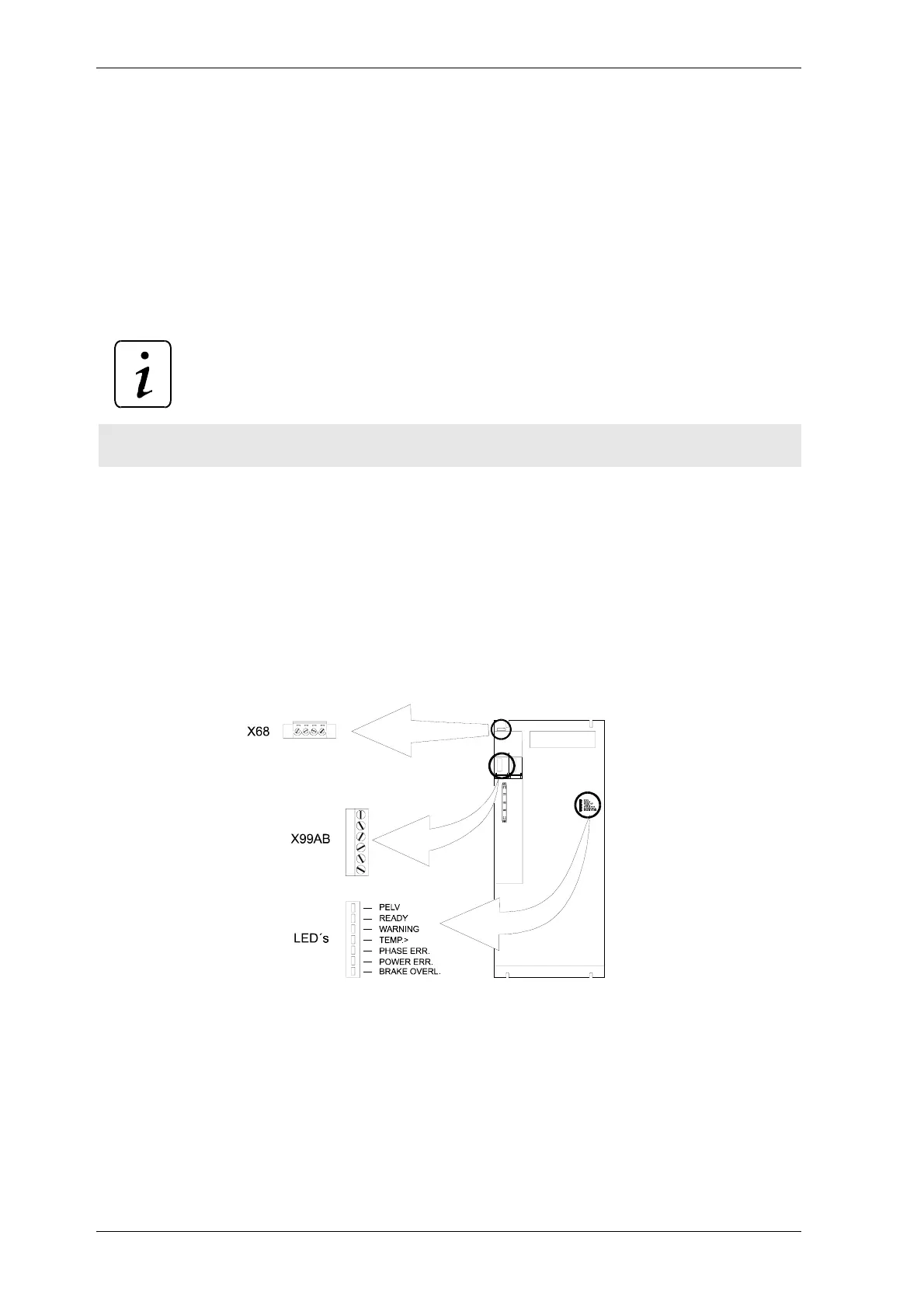

The position of the relay contacts and the LEDs is illustrated on the following figure
For more detailed information on the messages and the LEDs/relay contacts refer to ”Messages via
LEDs” page 60 and to ”Messages via relay contacts” page 61.
Monitoring functions of the power part on the motor side
The messages generated by the ”Monitoring functions of the power part on the motor side” are
exclusively sent to the controller which processes them.
NOTE
Monitoring functions are active only when the +24V supply voltage (X99A) is applied.
