5.0 Installation
13
5.1 Initial Preparation
1. Unpack contents of carton.
2. Remove the lower door panel from the outer
case. Remove the 2 screws holding the outer
case to the combustion box.
3. Place the ready assembled outer case in a
safe place until required.

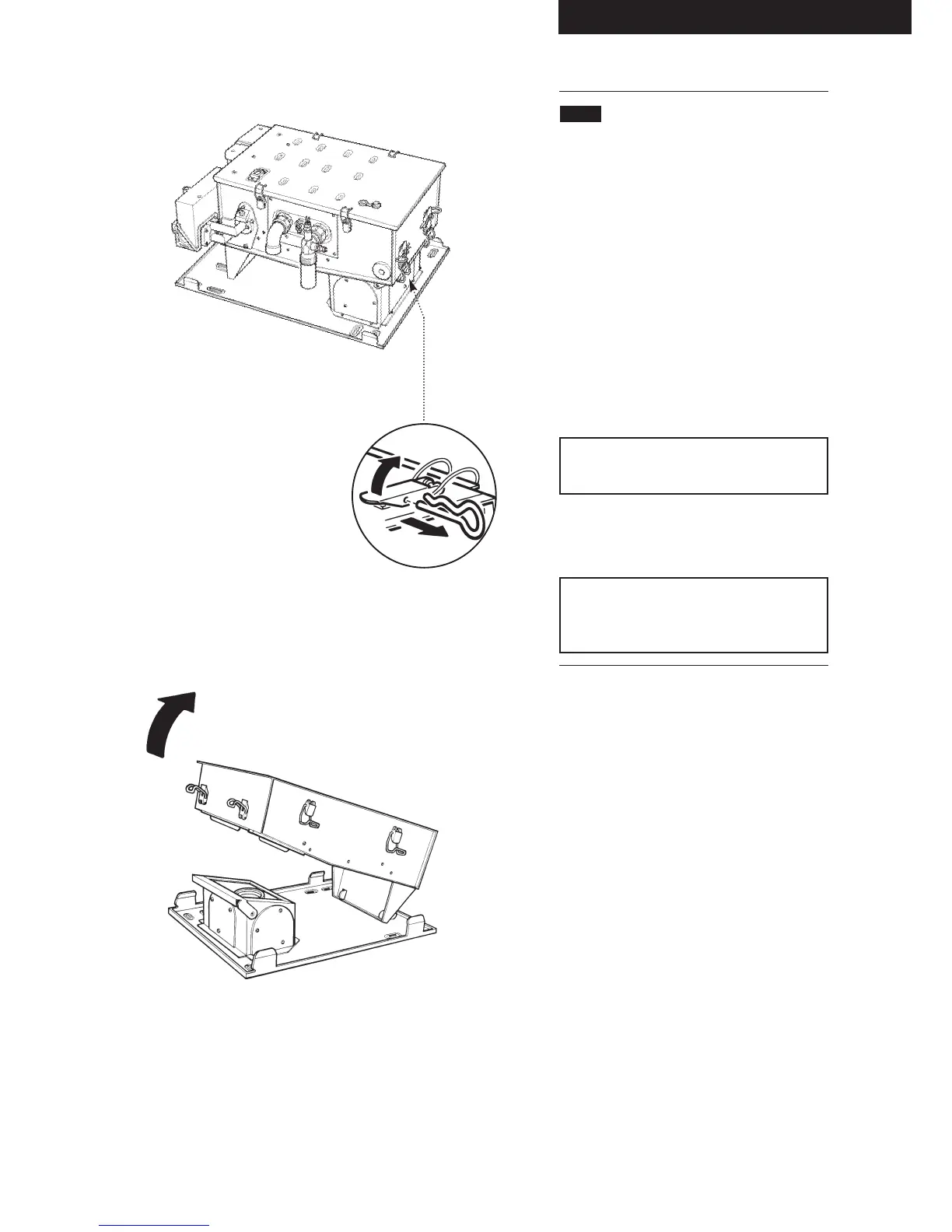

4. Release the R clips from the two latches
securing the combustion box to the back plate
and release the latches (Fig. 14).
5. Lift and remove the combustion box from the
back plate (Fig. 15). Place the combustion box
on its back.
IMPORTANT - When installing a Solo 2 with
a rear flue see section 5.2 before continuing
the installation.
6. Proceed to the relevant section for flueing the
appliance either to the Rear, Left, Right or
Vertically.
NOTE: For Vertical flueing or flue lengths
above the standard 610mm (24 in) the
relevant optional extra kits must be obtained
and their instructions followed.
Fig. 14
Fig. 15
