5.0 Installation
25
5.15 Internal Fitting Kit
1. The internal fitting kit (available from
merchants free of charge quoting Baxi Part
N
o
. 226441) is suitable for walls between 100mm
(4in) and 280mm (11in) in thickness.
2. TO INSTALL THE KIT - Mark the flue hole
centre as described in section 5.4 or 5.8. Cut a
hole in the masonry approximately 117mm (4
5
/
8
in) diameter for the internal fitting kit. The use of
a core drill is recommended. (When using a core
drill, it is important to keep the drill level and
square).
3. Measure the wall thickness and from this
dimension subtract 10mm (
3
/
8
in) (Fig. 61).
4. Remove the wall liner from its packing and
remove the end piece (Fig. 62).
5. Mark off the dimension, wall thickness - 10mm
(
3
/
8
in), measuring from the beaded end of the
duct and cut off the remaining length of the duct.
Ensure that the cut is square and reasonably
straight (Fig. 63).
Wall Thickness - 10
Wall Thickness

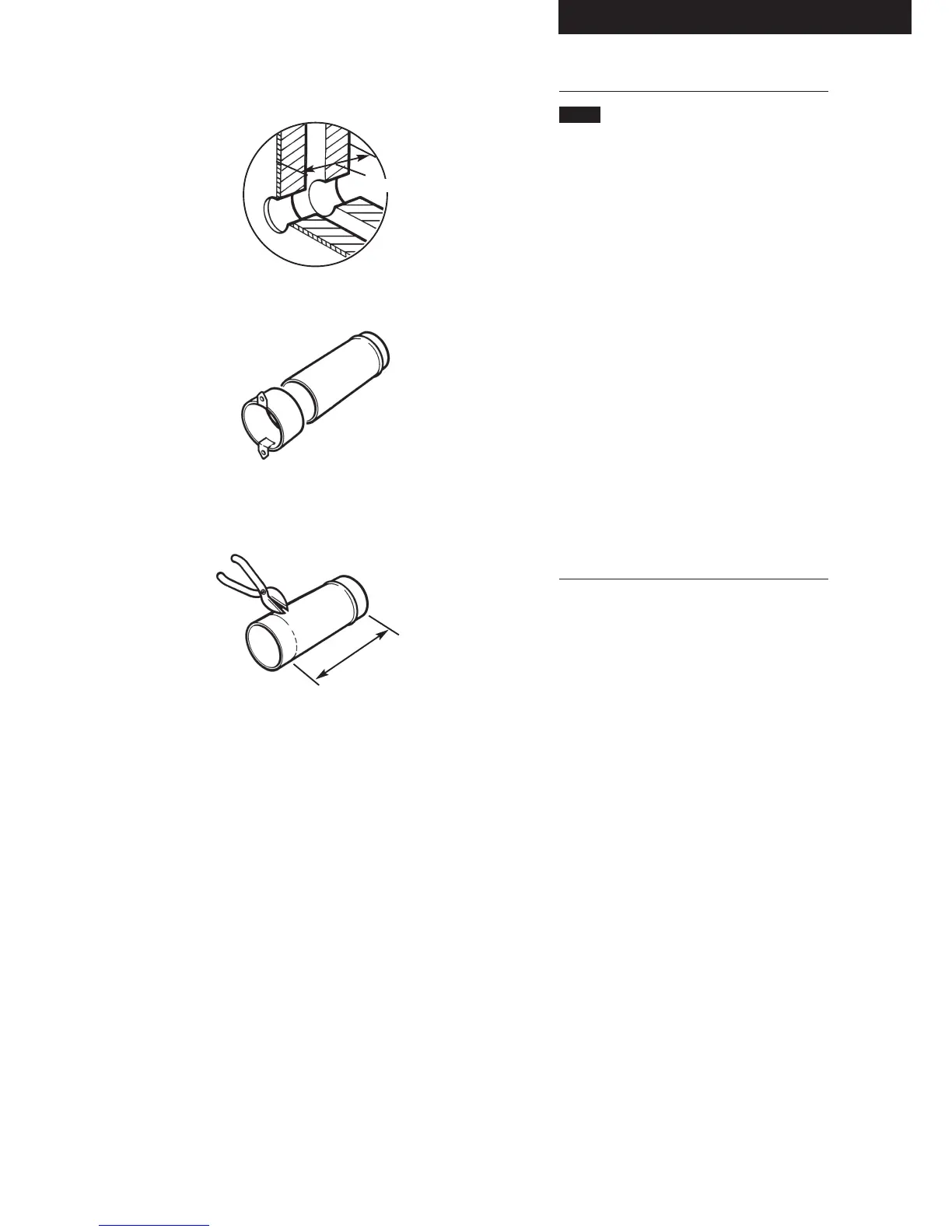

Fig. 61
Fig. 62
Fig. 63
