7.0 Fitting the Outercase
33
7.1 Fitting the Outercase
1. The warning label may be removed unless the
boiler is to be fitted within a cupboard.
2. Taking the ready assembled outercase, the
front door of which has already been removed,
proceed as follows:
3. If the appliance is flued to the left or to the
right, remove the relevant infill panel by
removing the retaining clips and fixing screws
(Fig. 83).
4. Offer the outer case up to the hooks on the
top of the back plate (Fig. 85).
5. Ensure that the outer case is located over the
lower tabs on the back plate on both sides
(Fig. 86).
6. Using the two screws previously removed,
secure the outer case to the combustion box
(Fig. 84).
7. Replace the lower front door panel.
8. Instruct the user in the operation of the boiler
controls. Hand over both the Users Operating
and Installation Instructions giving advice on the
necessity of regular servicing.

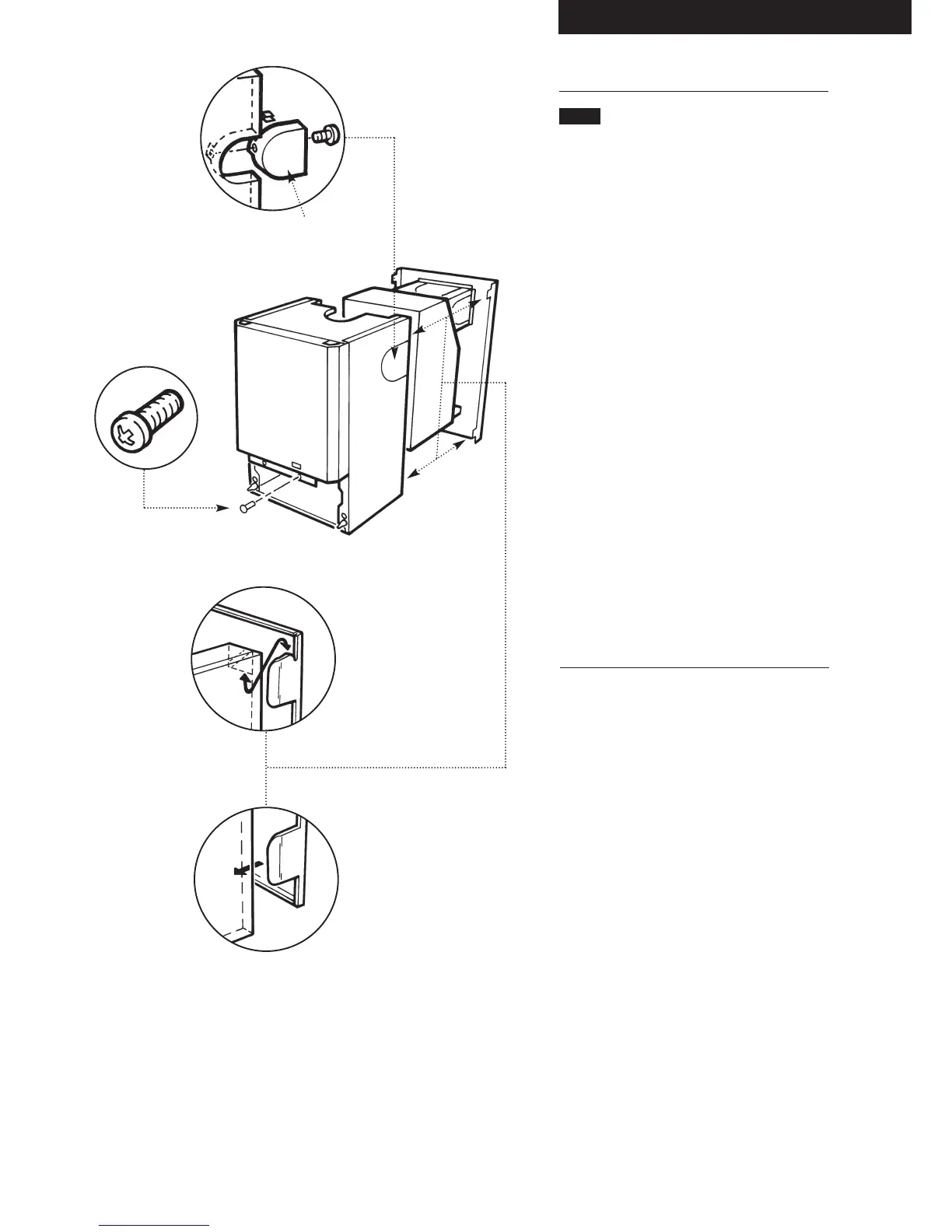

Fig. 83
Fig. 84
Fig. 85
Fig. 86
Infill Panel
