Beckhoff BK3120 User Manual

Parameterization and commissioning
BK3xx048 Version: 4.3.0
Digital outputs
11xKL2xx4,i.e.10x4bit=44bit
44bit /8=5.5bytes,rounded up to 6 bytes, i.e. enter 6x8 bitor1x48bitor1x8bit+1x40bit etc. (see
Fig. Example for entering individual bytes and Fig. Example for entering contiguous bytes)

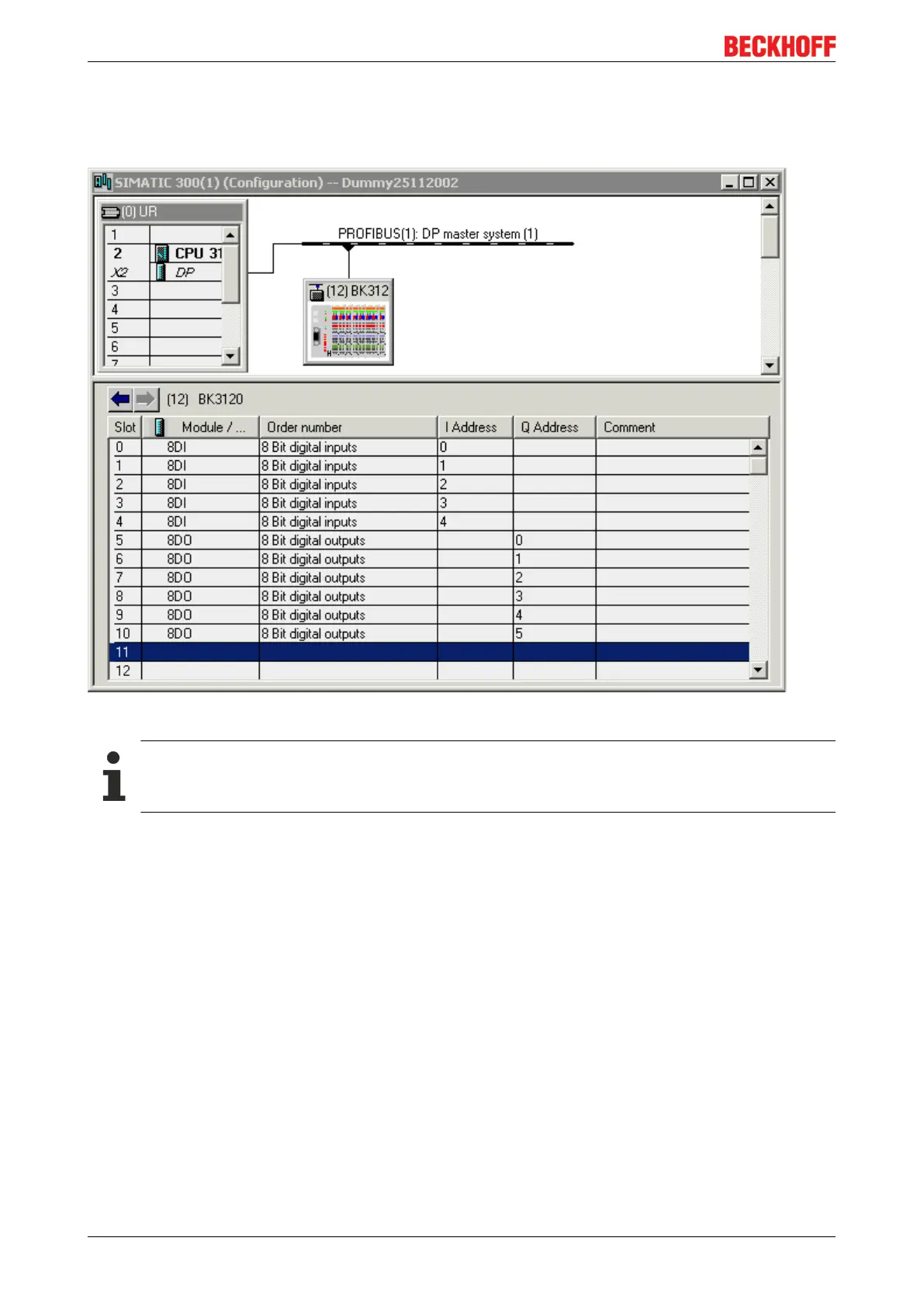

Fig.32: Example for entering individual bytes.
Maximum config data
Each individual byte requires one byte of ConfigData. In the BK3120 a maximum of 64 bytes of con-
figuration data is available.
