Operation
EL2911 and EL2911-220044 Version: 2.0.0

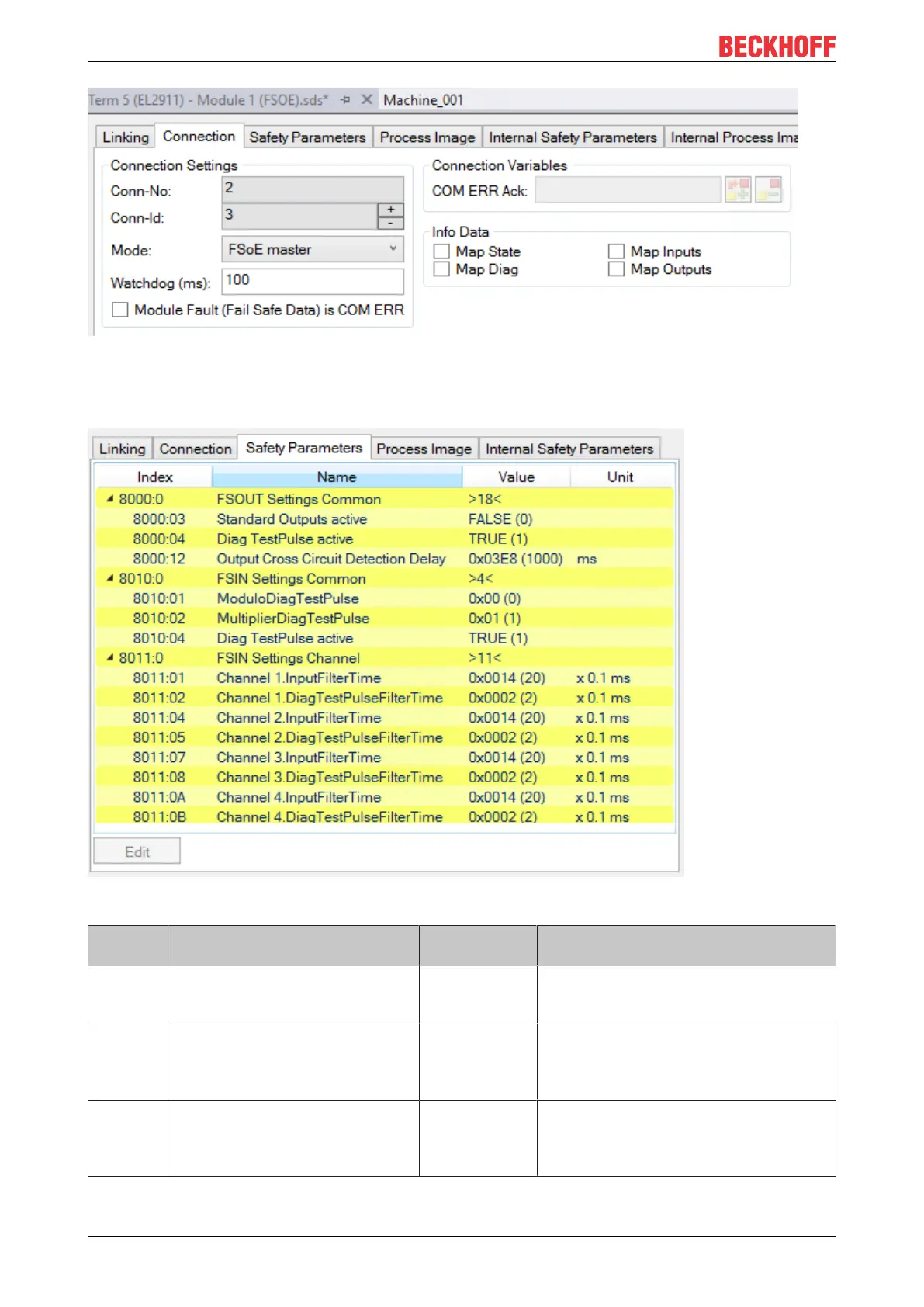

Fig.26: Connection tab of the alias device
The Safety Parameters tab contains the parameters of the EL2911 to be set. The output is parameterized via
parameter 0x8000. The inputs are configured via the objects 0x8010 and 0x8011.
Fig.27: EL2911 parameters
Index Name Default value/
unit
Description
8000:03 Standard outputs active FALSE /
Boolean
Activation of the logical AND operator of
the safe and standard outputs of the
module
8000:04 Diag TestPulse active TRUE / Boolean Switching the internal clocking of the
output module on/off
(24V
DC
at the output is always without
clocking)
8000:12 Output cross-circuit detection delay 0x03E8 / 1ms After the output is switched off, the system
waits for the set delay time before the
voltage is read at the output. If the voltage
exceeds 5V, a module error is generated.
