Basics communication
EL6731
35
Version: 2.8

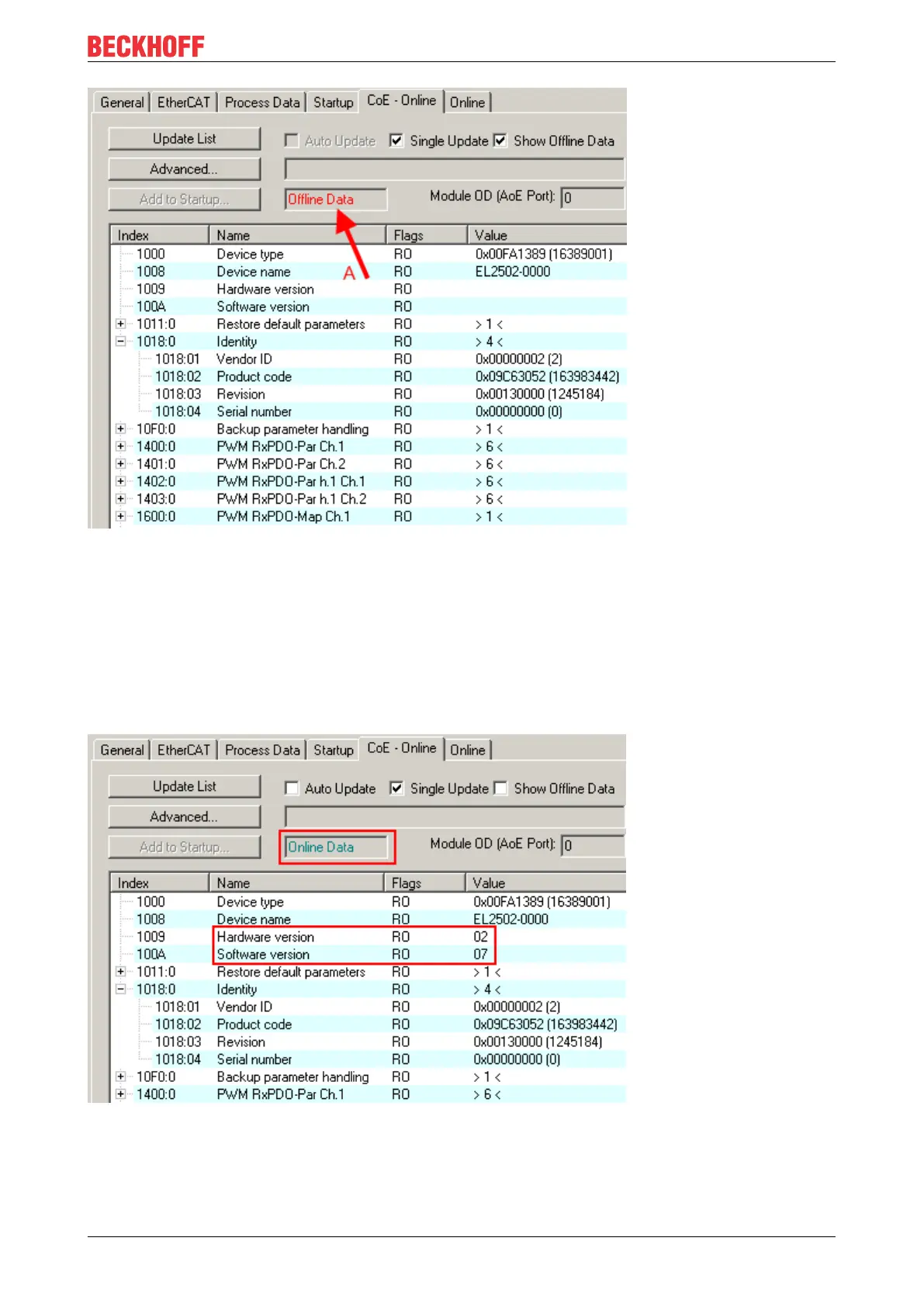

Fig.25: Offline list
•
If the slave is online
◦
The actual current slave list is read. This may take several seconds, depending on the size and
cycle time.
◦
The actual identity is displayed
◦
The firmware and hardware version of the equipment according to the electronic information is
displayed
◦
Online
is shown in green.
Fig.26: Online list
