Product overview
EL9xxx 49Version: 3.9

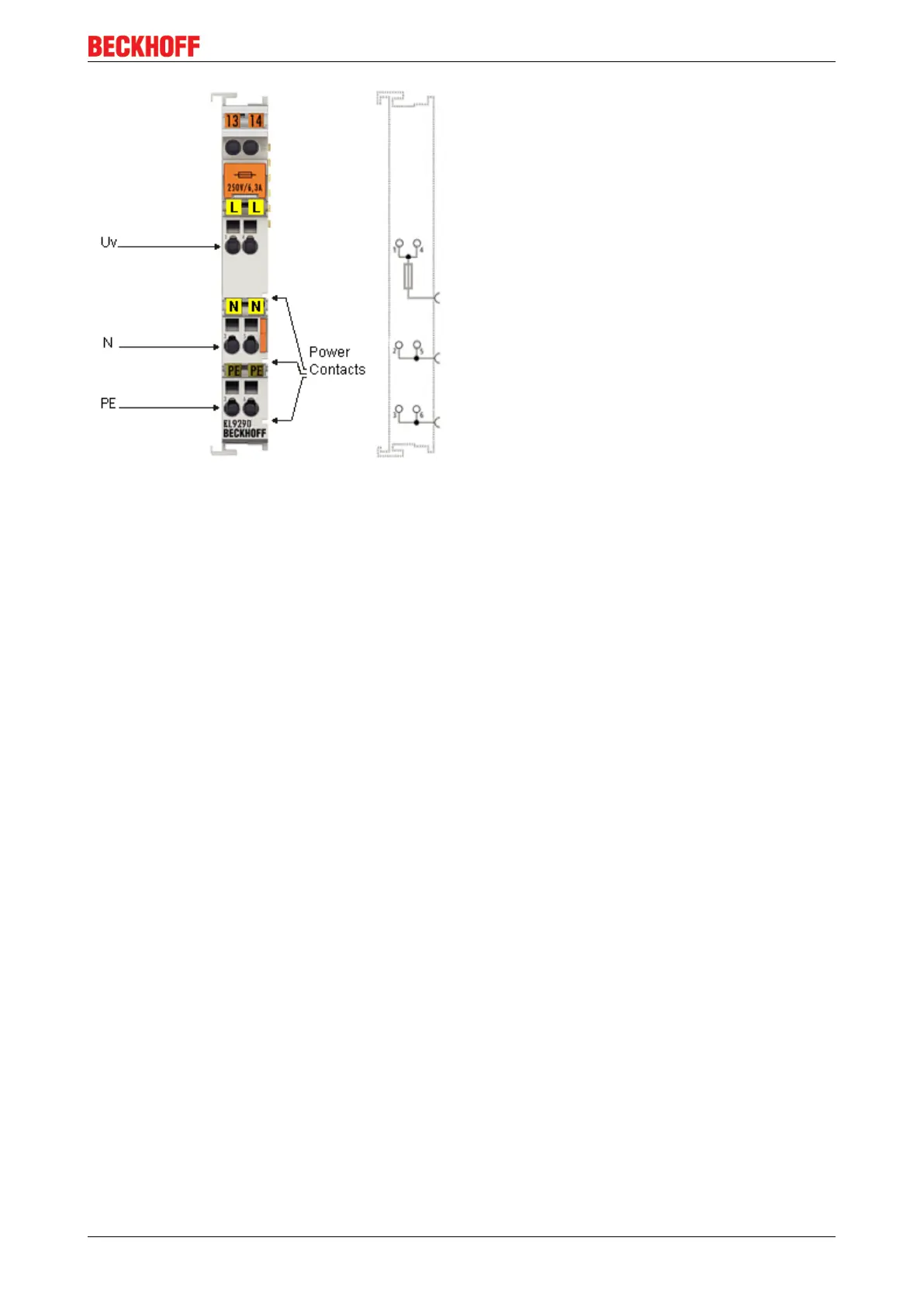

Fig.36: EL9290
The EL9200 / EL9210 / EL9290 feed terminal can be positioned at any location between the input and output
terminals for establishing a further potential group or for supplying the terminals following on the right in
applications with high current load. The E-Bus is looped through. As opposed to the EL9200 / EL9290, the
EL9210 has a diagnostic function which is displayed on the process image.
