Mounting and wiring
EL9xxx 83Version: 3.9
5.6 Positioning of passive Terminals
Hint for positioning of passive terminals in the bus terminal block
EtherCAT Terminals (ELxxxx / ESxxxx), which do not take an active part in data transfer within the
bus terminal block are so called passive terminals. The passive terminals have no current consump-
tion out of the E-Bus.
To ensure an optimal data transfer, you must not directly string together more than 2 passive termi-
nals!

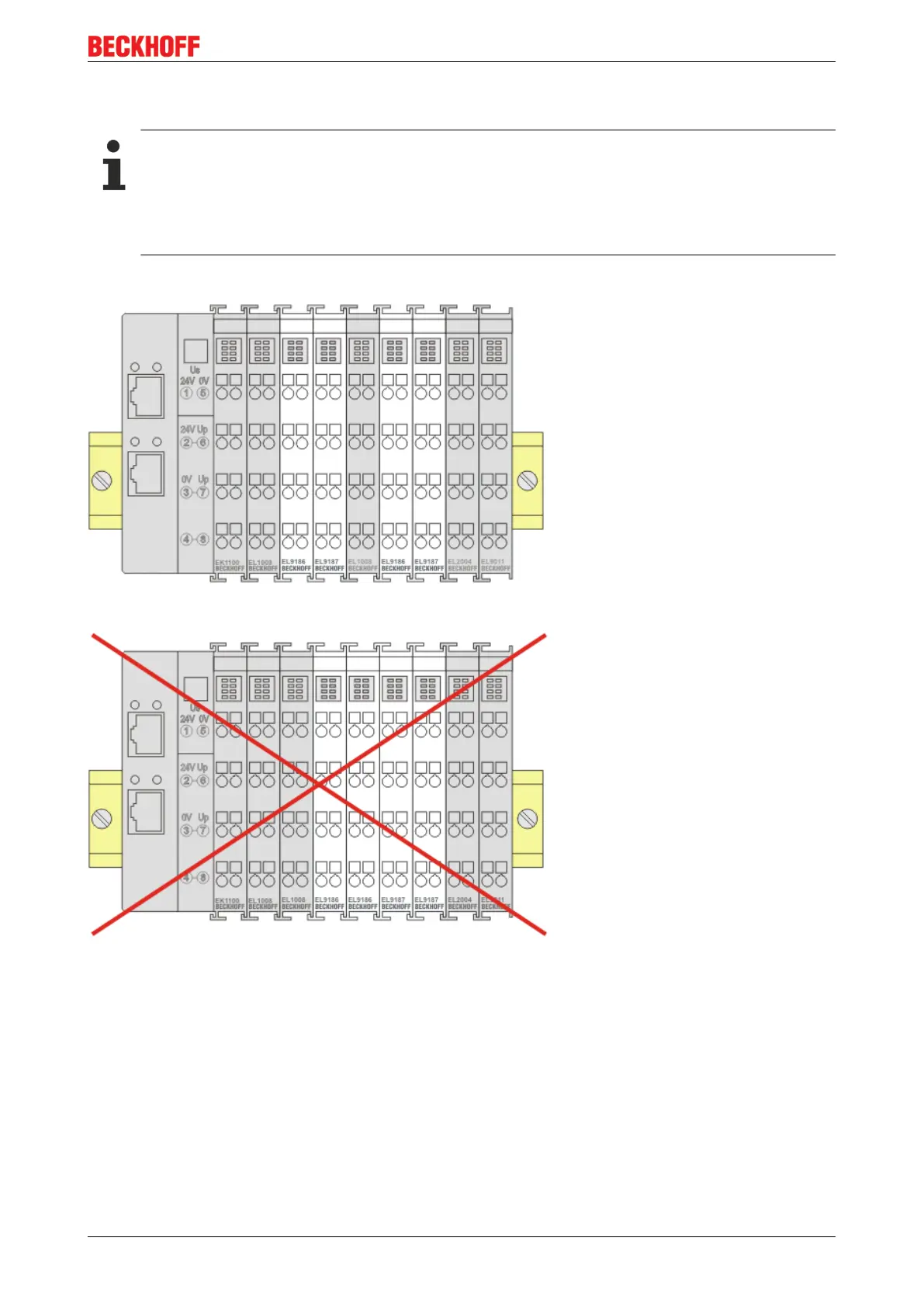

Examples for positioning of passive terminals (highlighted)
Fig.64: Correct positioning
Fig.65: Incorrect positioning
