Installation
14
Installation instructions
Safety instructions
When carrying out installation work and
making connections please observe the following
safety instructions:
• Disconnect the negative terminal of the bat-
tery! When doing so, please observe the vehi-
cle manufacturer's safety instructions.
• Make sure you do not damage vehicle compo-
nents when drilling any holes.
• The cross sections of the positive and negative
cables must not be less than 1.5 mm².
•
Do not connect the vehicle's plug connec-
tors to the radio!
You can obtain the adapter cable required
for your vehicle type from any BLAUPUNKT
dealer.
• Depending on the model, your vehicle may
dier from the description provided here. We
accept no responsibility for any damages due
to incorrect installation or connection or for
any consequential damages.
If the information provided here is not suita-
ble for your specic installation requirements,
please contact your Blaupunkt dealer, your ve-
hicle manufacturer or our telephone hotline.
When installing an amplier, you must 
rst
connect the device earth connections before
connecting the plugs for the line-out jacks.
Earth connection of external devices may not
be connected to earth of car sound system
(housing).
*

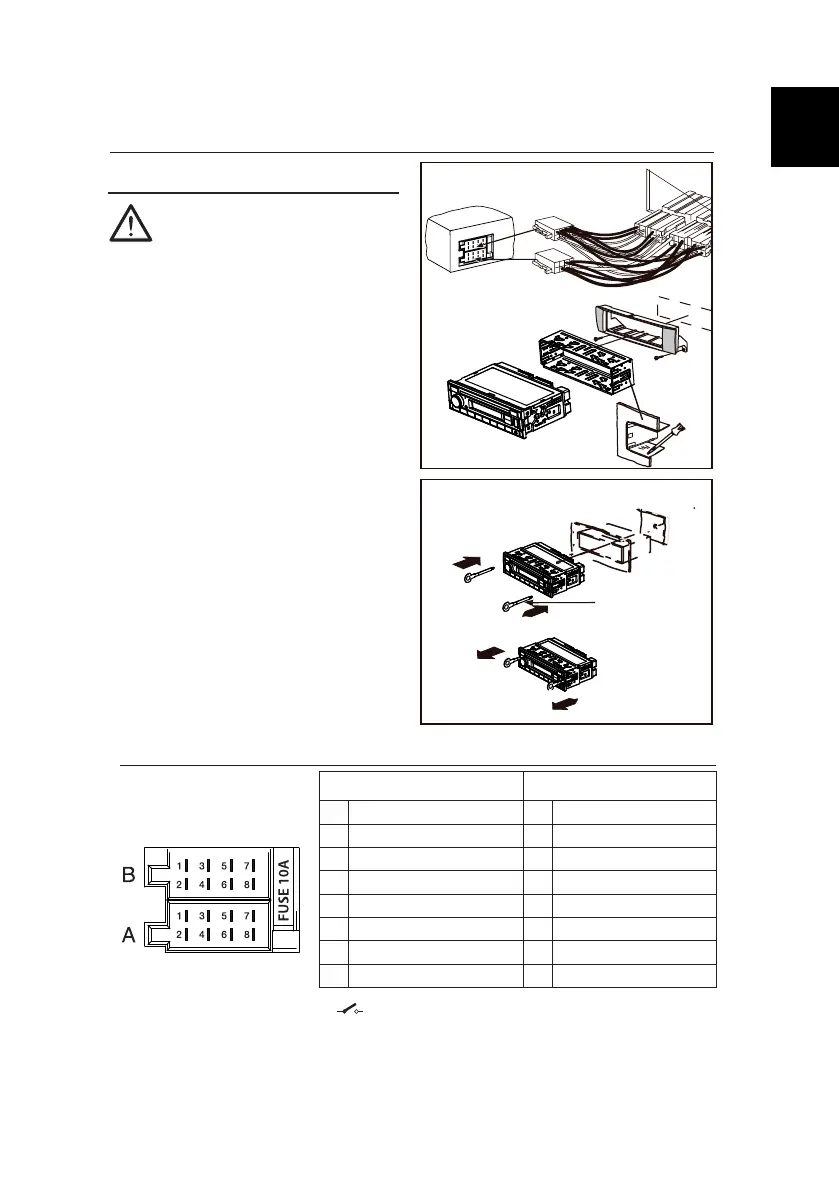

A B
1 NC 1 Speaker out RR+
2 Telephone Mute 2 Speaker out RR–
3 NC 3 Speaker out RF+
4 Permanent +12V 4 Speaker out RF–
5 Auto antenna* 5 Speaker out LF+
6 6 Speaker out LF–
7 Kl.15/Ignition 7 Speaker out LR+
8 Ground 8 Speaker out LR–
Switched power supply +12 V / max. 150 mA
NC
Available as an optional accessory
Installation Kits
ISO Connector
Uninstallation with release keys
Release keys
Pull out the headunit
EN
14
NC
