18
2. Insert drilling head and ruler
• Insert ruler into machine
• Clamp drill bits in drill chucks
9 x 5 mm Ø, clockwise
8 x 5 mm Ø, anti-clockwise
• Insert drilling head parallel to ruler
3. Adjust drilling depth
4. Set worktable to drilling distance
desired
5. Proceed to drill
• Place work piece on worktable and
drill for System 32

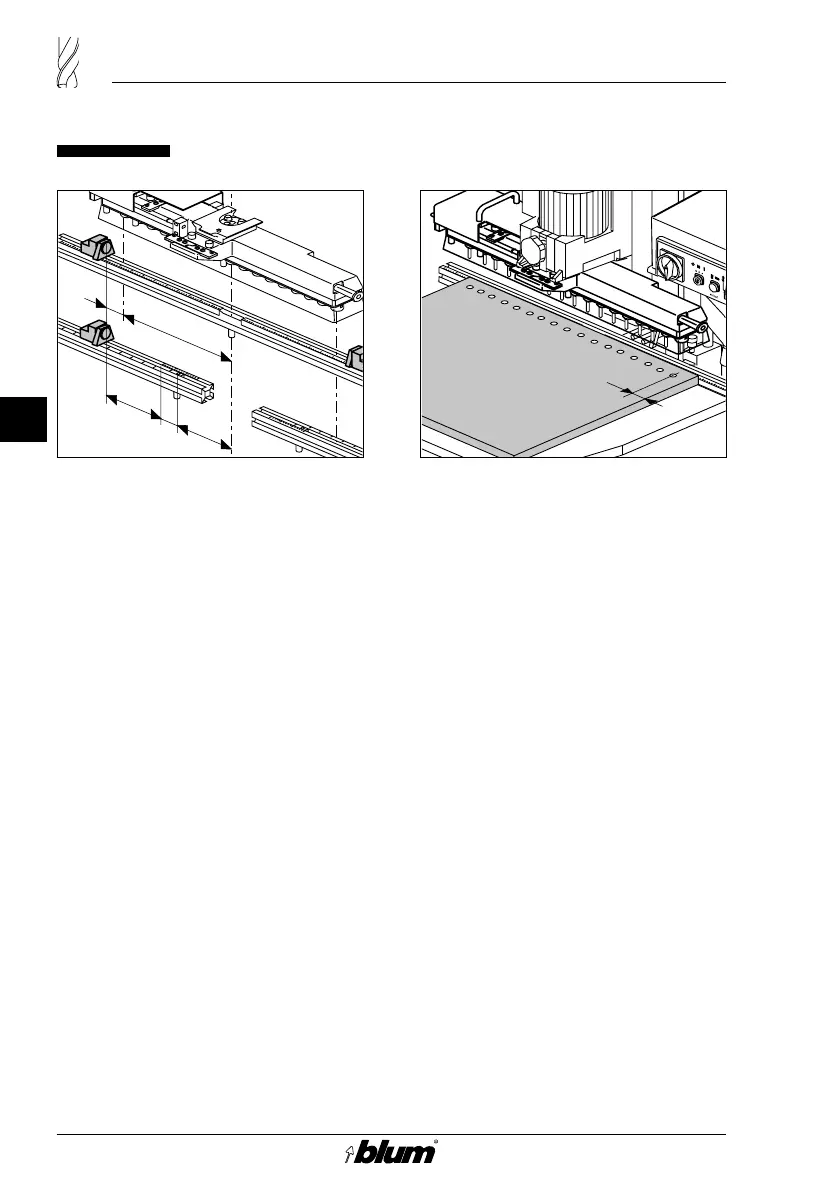

1. Choose ruler and set stops
• Recommended rulers:
- Standard ruler MZL.2000
- System 32 ruler MZL.2080
a) Standard ruler MZL.2000
• Set the first stop at 256 mm + X*
• Position all other stops at an interval
of 544 mm
b) System 32 ruler MZL.2080
• Set the first stop at 128 mm
• Set X* by means of zero point adjust-
ment
(See PRO-CENTER 2000, page 58)
• Set all other stops at an interval of
544 mm
*)...X = distance to first bore hole
System 32
Working with MTZ.2880
