For frame size and stem configuration, it is important to calculate the SSnew and RSnew values that your timemachine will be to.
All dimensions are in millimeters!
Determine the right frame size and stem configuration
You intend to use: Please calculate:
Your old bars on new TM
SSnew = SS - BBH
RSnew = RS
Standard TM bars (Profile)
SSnew = SP - 60 - BBH
RSnew = SP + 20
Any other new bars
SSnew = SP - SB - BBH
RSnew = RP + RB
Once you know your SSnew and RSnew:

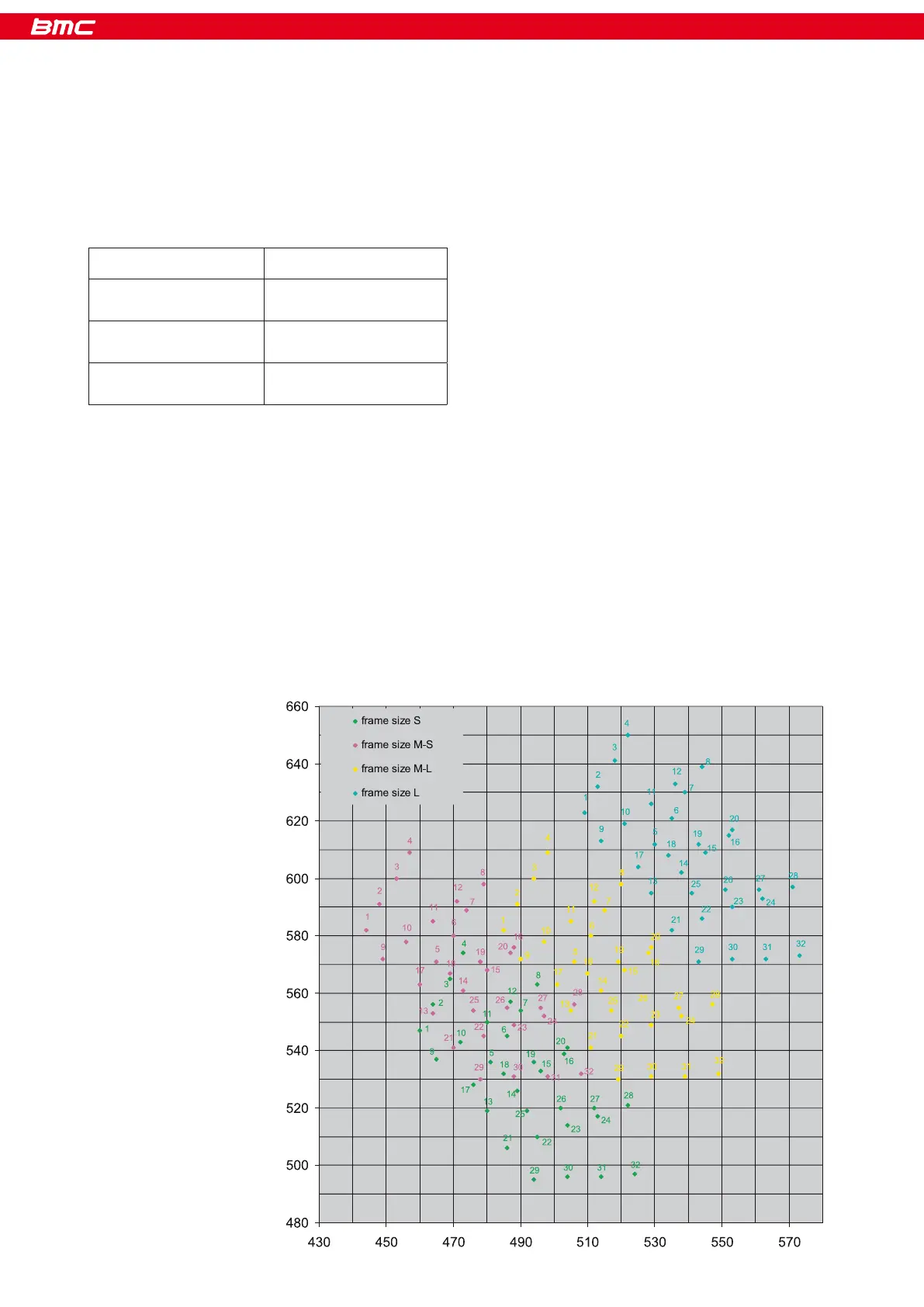

Place the SS and RS values in the chart (Figure 6) onto the horizontal and vertical.
The chart shows the various handlebar center positions you can achieve on TM01.
Check which point comes closest to the position you have calculated.
The color shows the frame size, the number is a reference to the stem configuration. All the stem configuration are listed in the second
chart (Figure 7).
The Profile aero bars specified on the complete bike offer additional pad adjustment, so you will be able to reach your desired position
even if the position you choose to build is some millimeters away from the calculated values.
You can use the tool on our homepage.
Measure SB and RB on your new bars
Measure SP, RP and BBH on your old bike
Stack and Reach BB to Handlebar Clamp
Figure 6
SSnew
RSnew
