Hingefork and headset

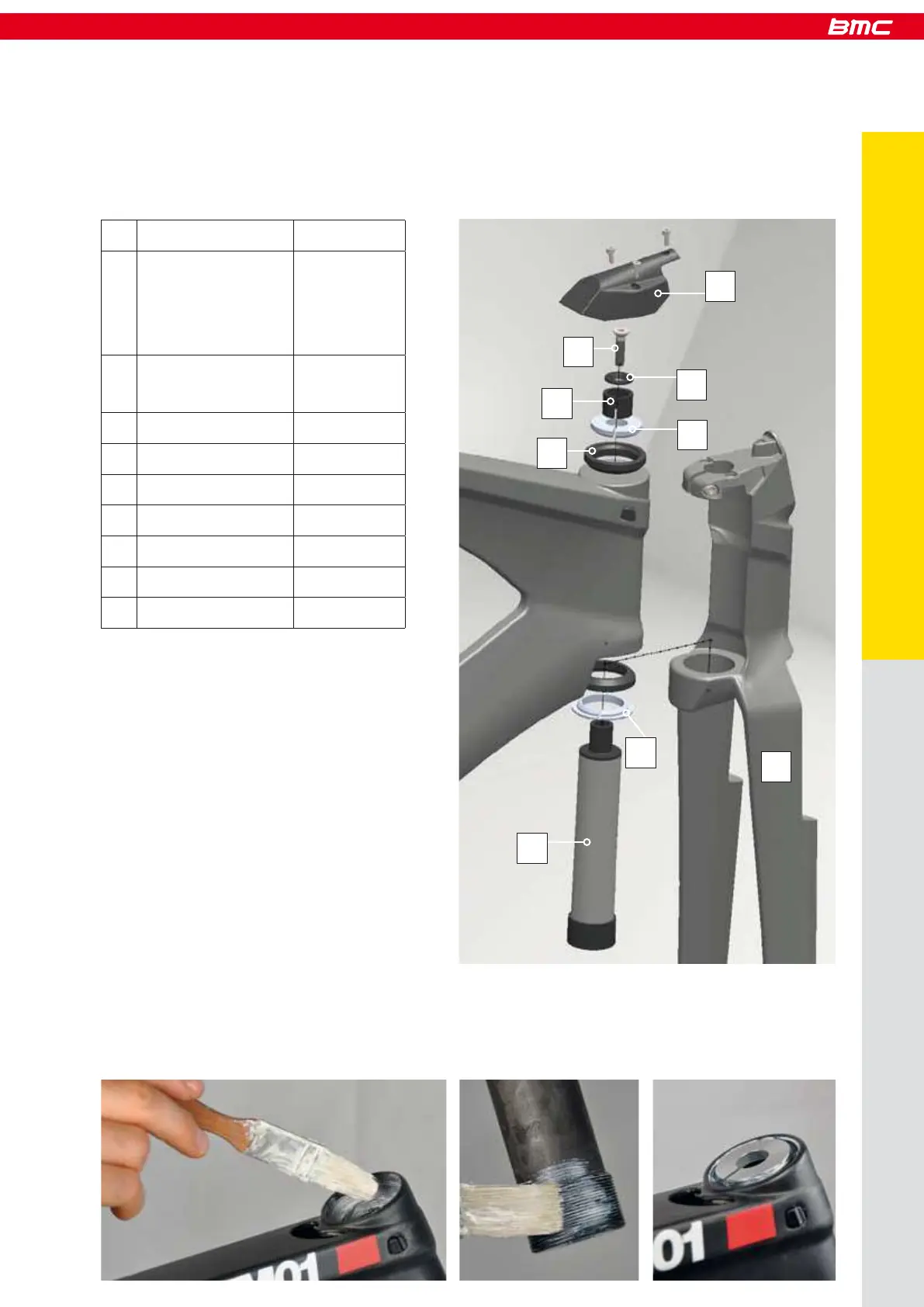

Parts overview

- Apply grease on the bearing seats (1) and all metal parts (2). Install bearings and crown races (3).

Assembly procedure

Description Part N°

1 Hingefork 210510 (S Red)

210511 (M Red)

210512 (L Red)

210799 (S Blue)

210800 (M Blue)

210801 (L Blue)

2 Steer tube 210527 (S)

210528 (M)

210529 (L)

3 Bearings 210994

4 Lower crown race 210526

5 Upper crown race 210526

6 Slotted sleeve 210526

7 Top cap 210526

8 Headset bolt 210526

9 Stem cover 210524
