Brakesets
The timemachine is equiped with custom brakes which are only available for this specific model from BMC. The function and installation
are different from what you may be used to on less integrated road bikes.
We ask you to carefully read and follow the instructions in order to avoid misuse.

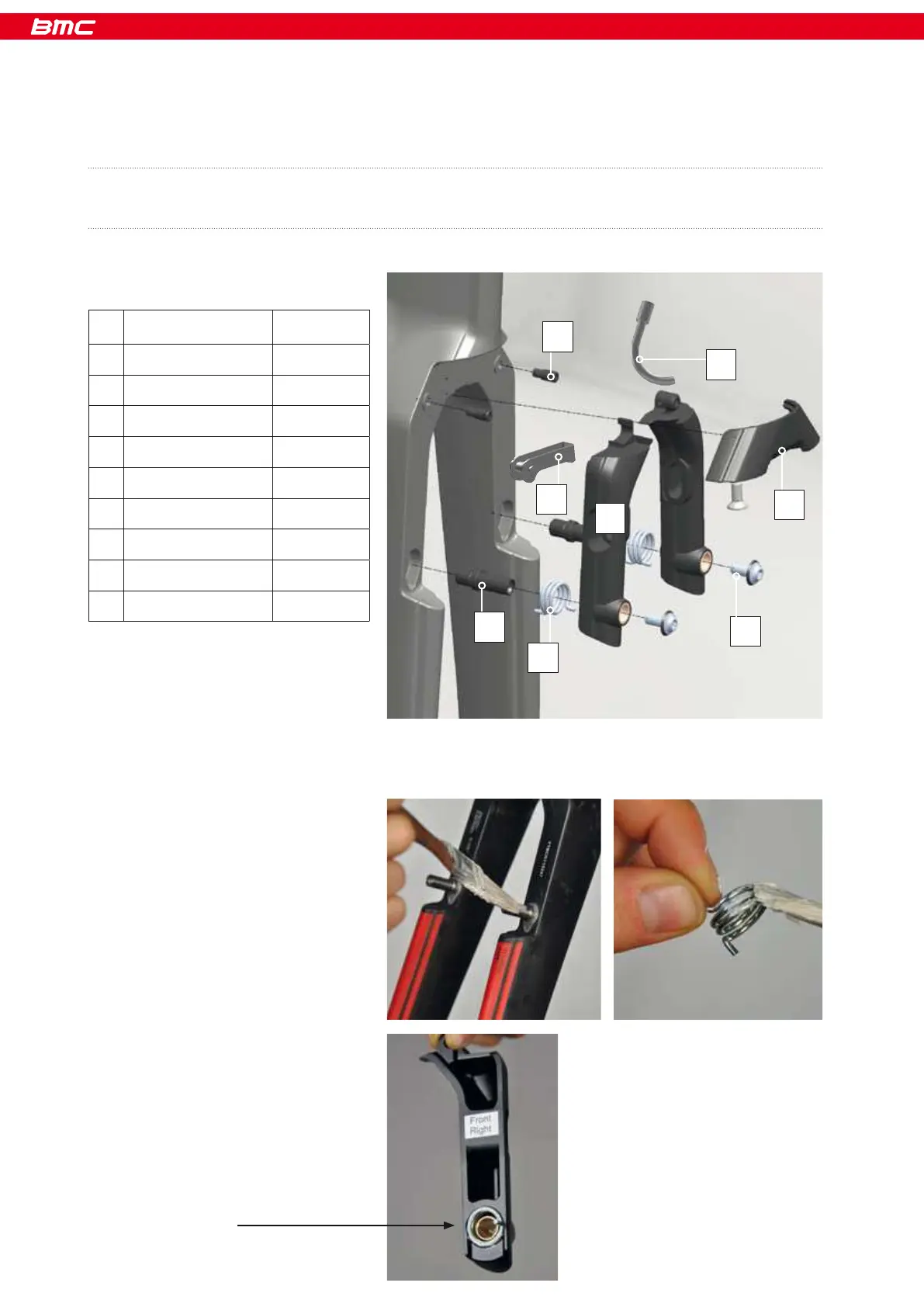

Assembling the brake arms
Description Part N°
Brake kit (all parts) 210534
1 Brake arms (front)
2 Springs
3 Brake bosses 210541
4 Brake bolts
5 Brake stoppers 210540
6 Brake cover 210525
7 Pipe 210538
8 Pipe holder 210539
- Grease should be applied on the brake bosses and springs, and red Loctite on the brake arm bolts.
Longest extension of the spring
should point out of the brake
arm.
2
3
1
1
5
7
6
2
4
3
8
