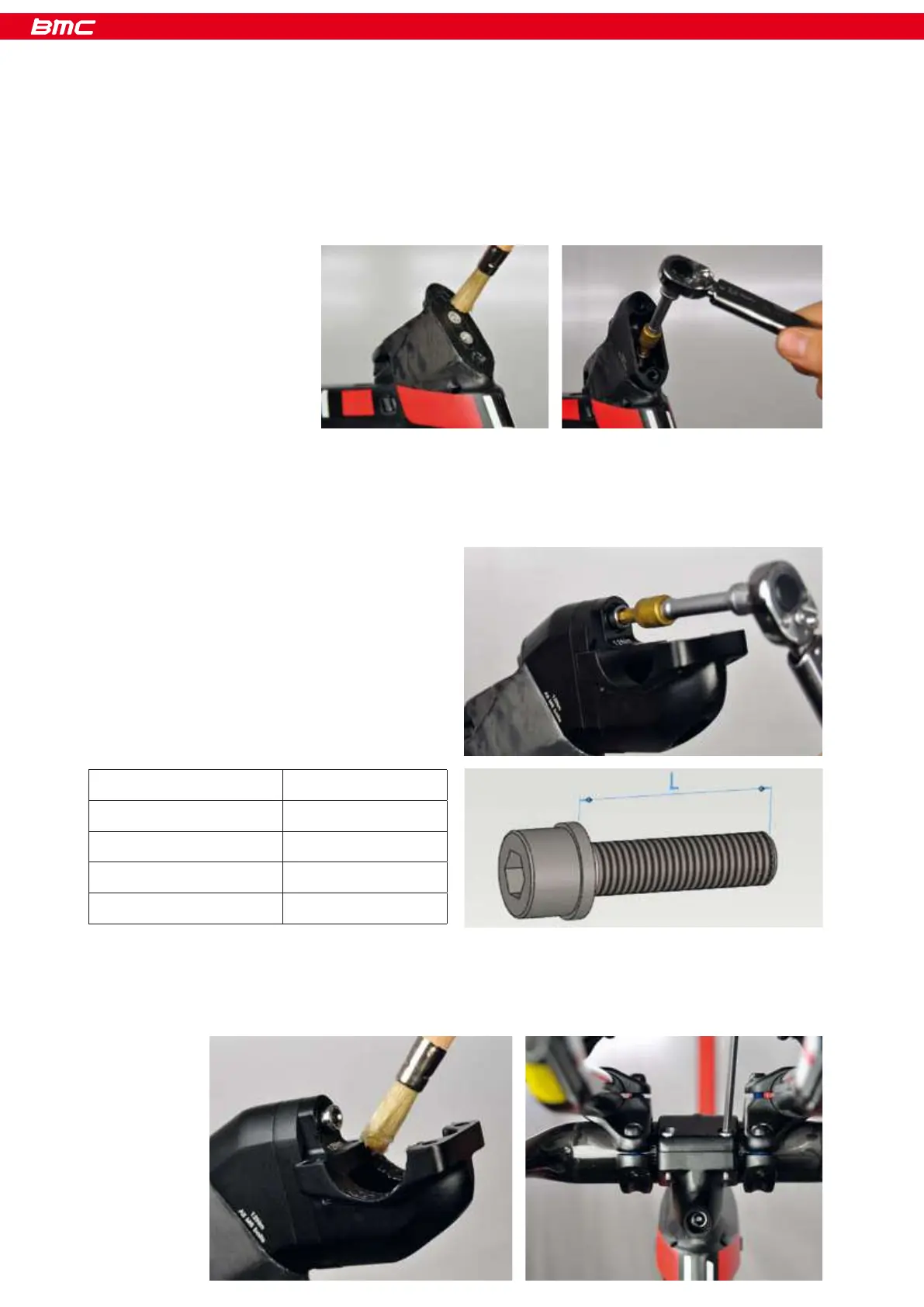

- Apply friction paste on the contact surface of the fork (1).
- Install first the angled spacer, using 16mm M6 bolts. Torque 12 Nm (2).
Assembly procedure
Spacer combination Length L
No spacers 16mm
10mm spacer 26mm
20mm spacer 36mm
10 + 20 spacers 46mm
- Install stem body with the desired length spacing (3).
Important: Each length spacing has a corresponding specific bolt length. Incorrect bolt length may result in damaged stem
and fork!
- Apply friction paste between stem and handlebars. Install handlebars and faceplate. The frontal bolts of the face plate should be
tightened until the face plate touches the stem body.
