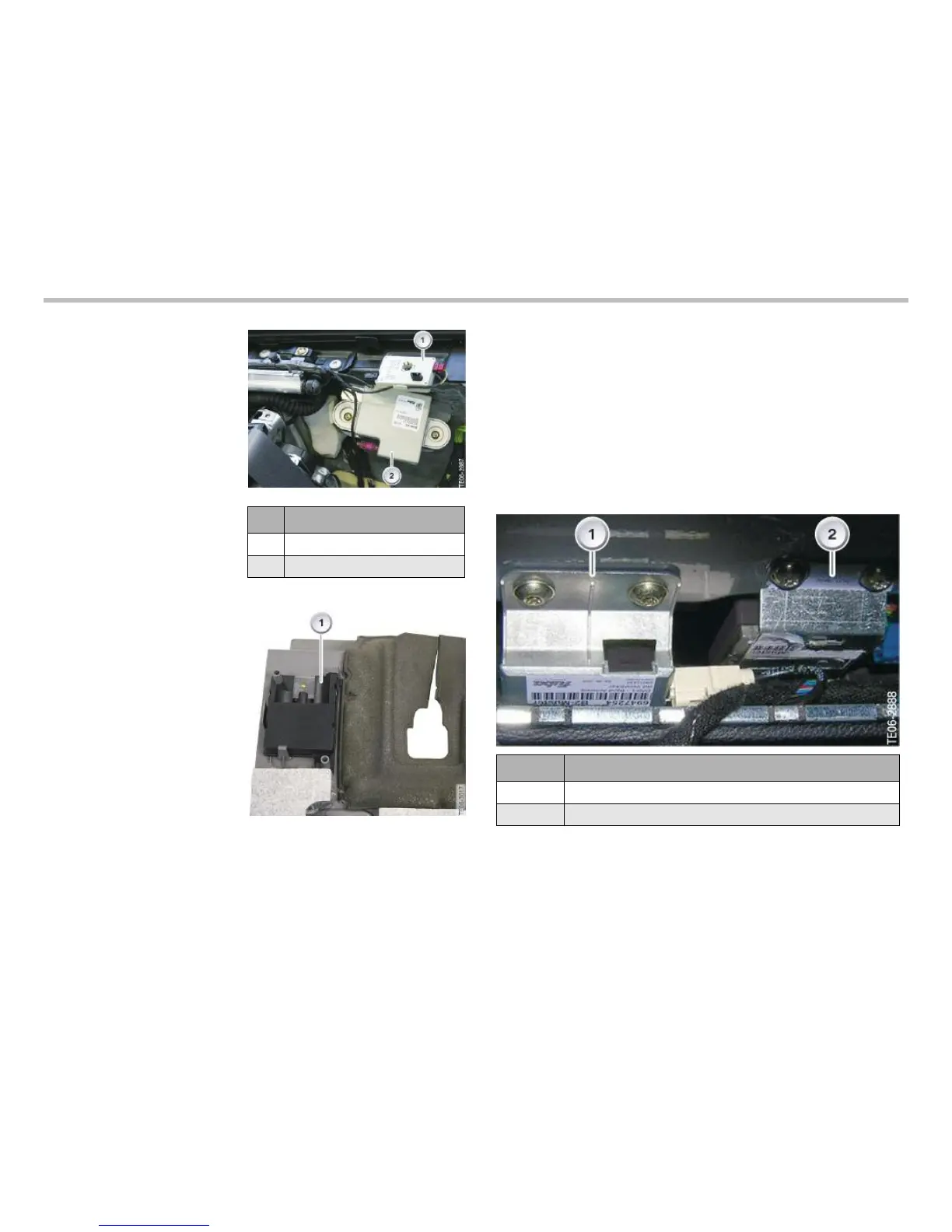

SOS Antenna
The SOS antenna (2) is
activated if the emergency call
function is no longer possible
via the telematics antenna
after an accident.
The SOS antenna is installed
under the side trim panel on
the rear left.
Bluetooth
®
Antenna
The Bluetooth
®
antenna (1)
is used for internal data trans-
mission between the mobile
phone and vehicle.
The Bluetooth
®
antenna is
located in the left footwell trim
panel.
GPS Antenna
A GPS antenna is necessary for the telematics function for the pur-
pose of automatic emergency call with location. On vehicles with
MASK/CCC navigation system, the GPS antenna is routed directly
to the navigation computer. The TCU receives the position data via
the MOST.
The GPS antenna is connected directly to the TCU on vehicles
with no navigation system but with radio Professional and telemat-
ics functions. In this case, the TCU determines the location.
The GPS antenna is located behind the roof functions module in
the roof frame.
E93 Complete Vehicle Workbook
37
Index Explanation
1
Not in US market
2
GPS antenna
Index Explanation
1
Antenna amplifier AM/FM1
2
SOS antenna
