Body Reinforcements
As with previous convertibles, additional reinforcement is added to
supplement the rigidity of the body structure.
The additional struts consist of:
• Front end struts
• Shock tower to bulkhead struts
• Front axle subframe struts
• Tension struts at rear
• Strut in rollover protection system
The cross-section of the sill has been additionally increased as
compared to the E92.
E93 Complete Vehicle Workbook
9

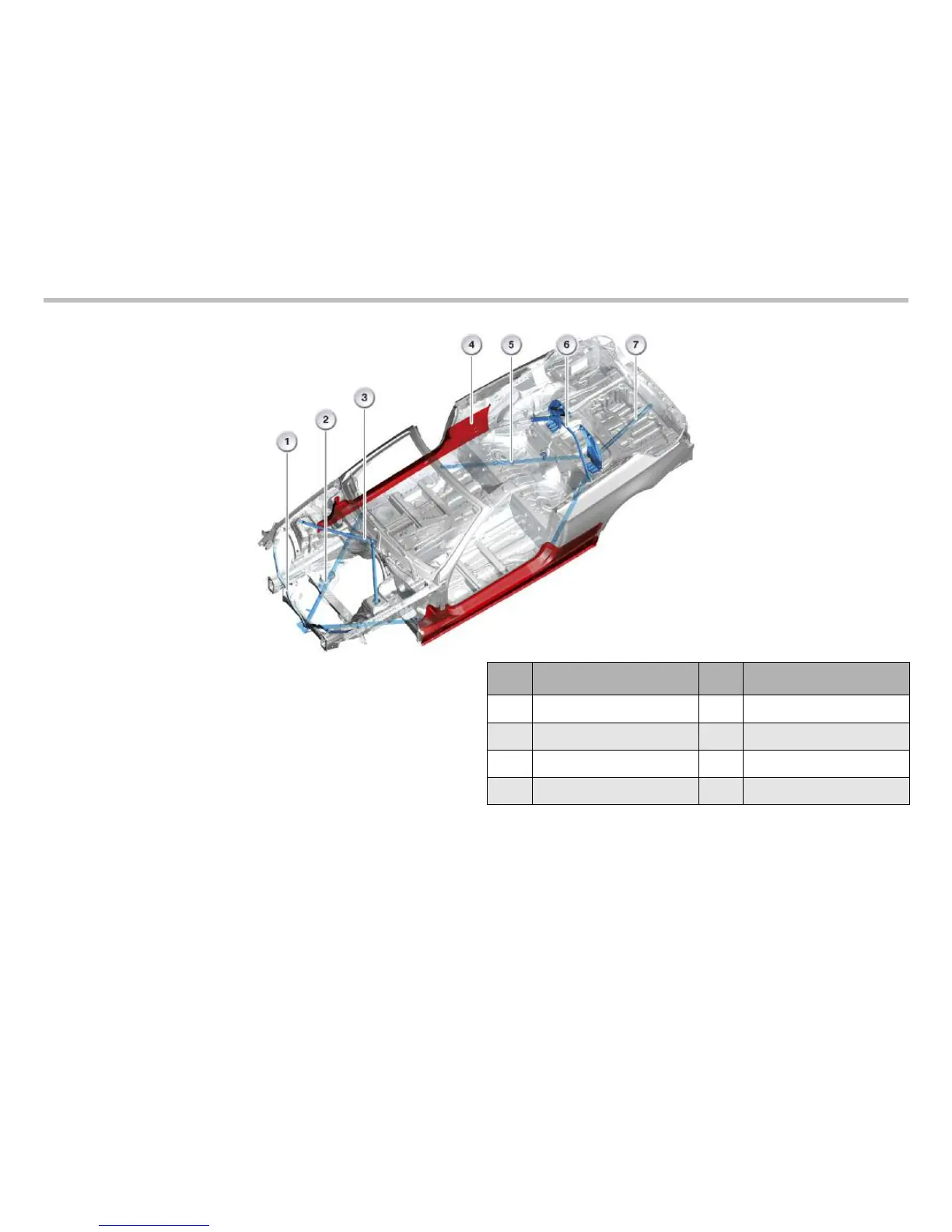

Index Explanation Index Explanation
1
Diagonal strut, engine
compartment
5
Underbody strut, rear
2
Front axle subframe struts
6
Strut in rollover protection
3
Spring/shock tower strut
7
Tension strut
4
Sill
Note: Do not attempt to drive an E93 with the reinforce-
ment struts removed. Damage to the body could
occur.
