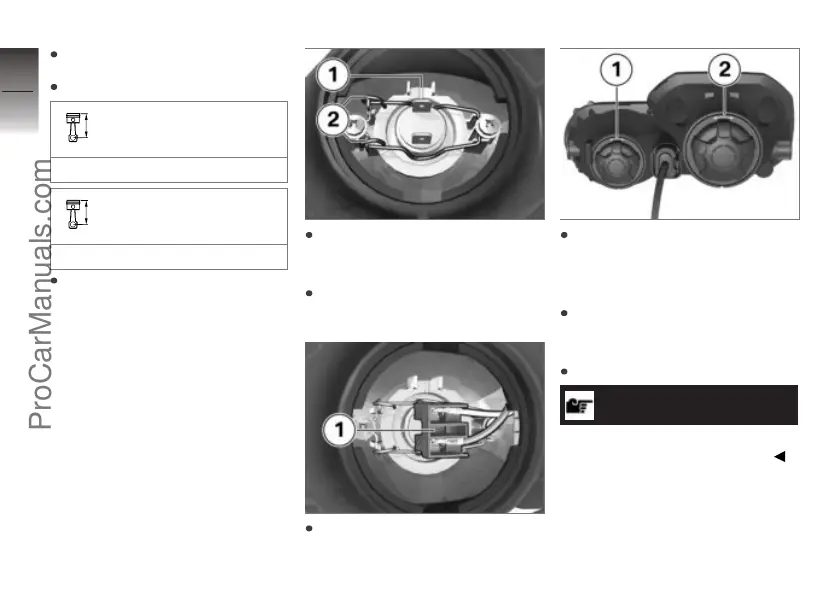

Remove bulb 2.
Replace defective light source.
Bulb for high-beam
headlight
H7 / 12 V / 55 W
Bulbs for low-beam
headlight
H7 / 12 V / 55 W
To avoid leaving contamina-
tion deposits on the new bulb's
glass surface, always hold it by
its base.
Insert the bulb 1, ensuring that
the lug is in the correct posi-
tion.
Close and lock wire spring
clip 2.
Connect connector 1.
Install cover 1 or 2.
Replacing parking light
bulb
Park motorcycle, ensuring that
support surface is firm and
level.
Switch off ignition.
NOTICE
To achieve better accessibility,
turn the handlebars to the left.
8
116
z
Maintenance
