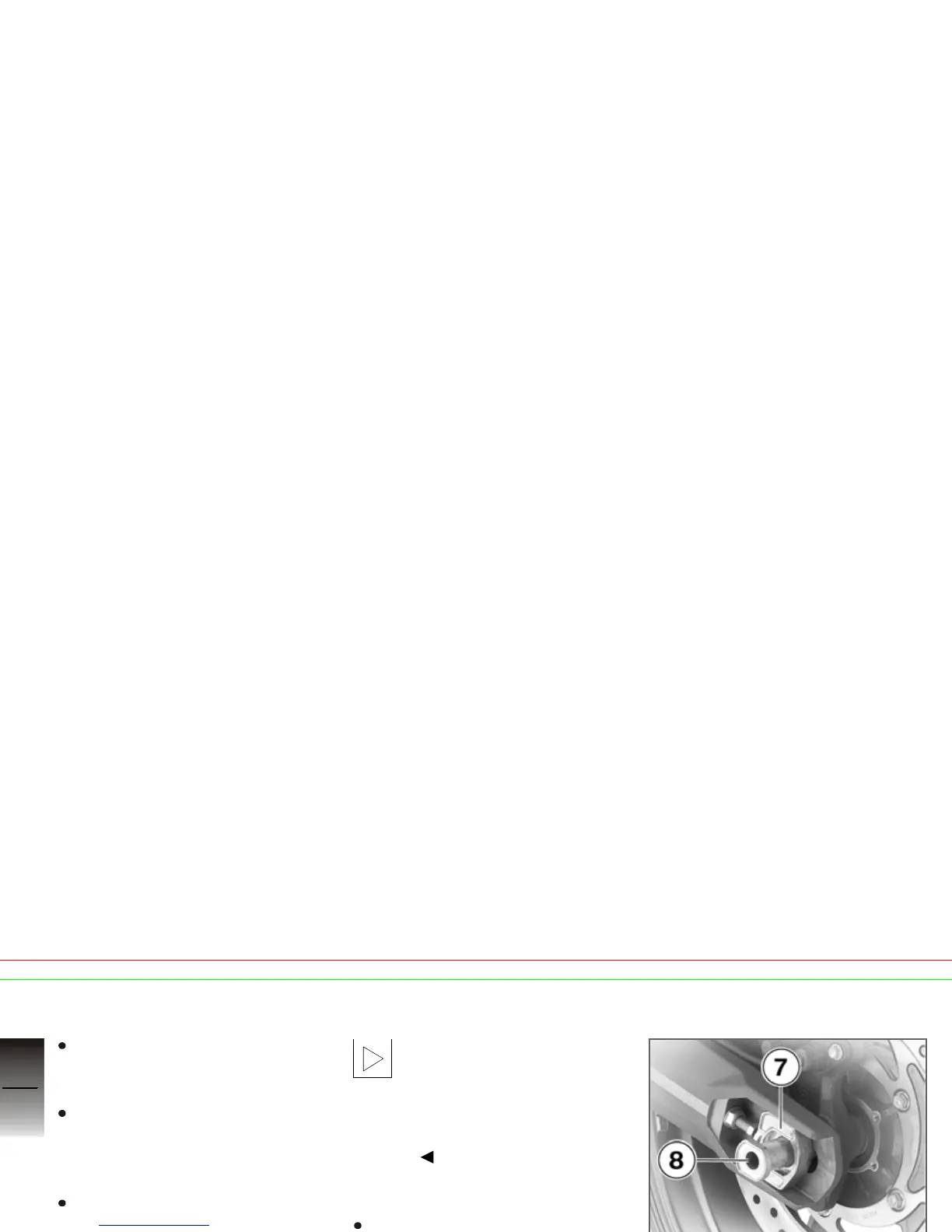

Slacken locknuts 5 on left and
right by turning them counter-
clockwise.
Back off adjusting screws 6
left and right by turning them
clockwise until adjusting
plate 7 can be removed.
Remove quick-release axle 8.
Roll the rear wheel as far for-
ward as possible and disen-
gage chain 9 from the sprock-
et.
Roll the rear wheel back until it
is clear of the swinging arm.
The sprocket and the
spacer sleeves on left
and right are loose fits in the
wheel. Make sure that these
parts are not damaged or lost on
removal.
Installing rear wheel
Roll the rear wheel into the
swinging arm, making sure that
the brake disc passes between
the brake pads.
Roll the rear wheel as far
forward as possible and loop
chain 9 over the sprocket.
Install quick-release axle 8
with adjusting plate 7 in the
swinging arm, brake caliper and
rear wheel.
Turn the quick-release axle un-
til it fits into the recess of the
adjusting plate.
8
76
z
Maintenance
