BMW R 1200 GS ADVENTURE Rider's Manual

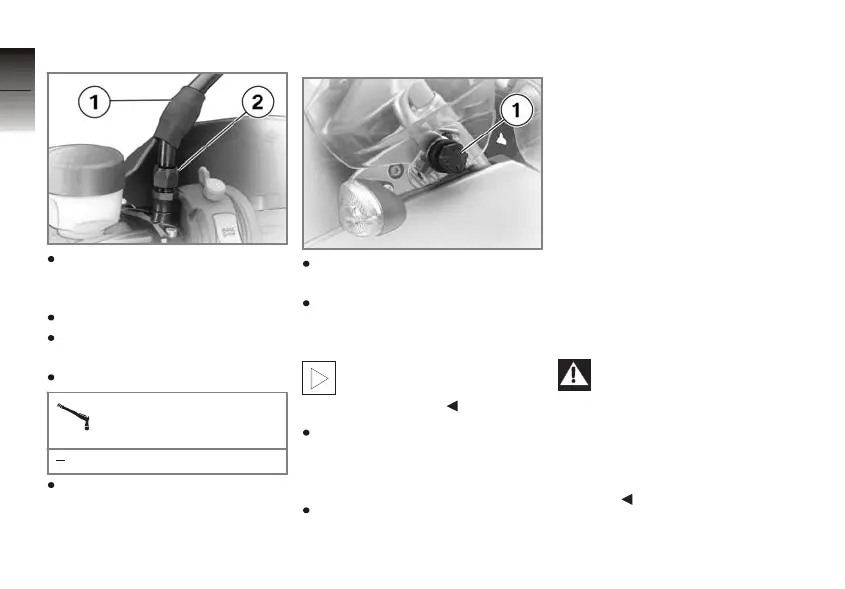

Adjusting mirror arm
Push protective cap 1 up
over the threaded fastener
on the mirror arm.
Slacken union nut 2.
Turn the mirror arm to the
appropriate position.
Retighten union nut 2.
Mirror to clamping
piece
25 Nm
Pull protective cap 1 over
the threaded fastener.
Adjusting windscreen
Slacken clamping screws 1
on left and right.
Pivot the windscreen for-
ward or back to the desired
position.
You can set the wind-
screen to any of several
different positions.
Make sure that clamping
screws 1 on left and
right are symmetrically
positioned.
Tighten the clamping
screws.
Spring preload
Spring preload and
weight
It is essential to set spring
preload of the rear suspen-
sion to suit the load carried
by the motorcycle. Increase
spring preload when the mo-
torcycle is heavily loaded and
reduce spring preload ac-
cordingly when the motor-
cycle is lightly loaded.
Adjusting spring preload
for rear wheel
Your motorcycle's hand-
ling will suffer if you do
not match the spring-preload
and damping-characteristic
settings.
Adjust the damping
characteristic to suit spring
preload.
4
64
z Operation

BMW R 1200 GS ADVENTURE Specifications

General

Displacement	1, 170 cc
Bore x Stroke	101 mm x 73 mm
Max Power	125 hp (92 kW) at 7, 750 rpm
Max Torque	125 Nm at 6, 500 rpm
Compression Ratio	12.5:1
Fuel System	Electronic intake pipe injection
Final Drive	Shaft drive
Front Brake	Dual disc brake, floating brake discs, diameter 305 mm, 4-piston radial calipers
Rear Brake	Single disc brake, diameter 276 mm, double-piston floating caliper
Length	2, 255 mm
Width	980 mm
Height	1, 450 mm
Wheelbase	1, 510 mm
Wet Weight	260 kg
Fuel Capacity	30 liters
Tires Front	120/70 R19
Tires Rear	170/60 R17
Engine Type	Air/liquid-cooled four-stroke flat twin engine, double overhead camshaft, one balance shaft
Transmission	6-speed
Clutch	Hydraulically operated wet clutch
Frame	Two-section frame
Front Suspension	BMW Motorrad Telelever
Rear Suspension	BMW Motorrad Paralever
ABS	BMW Motorrad Integral ABS
Seat Height	890 mm
